Netstor PCIe Storage in support of 8K Video Editing Workflow
As two Netstor PCI Express 3.0 storage units NS780S-G3 are connected to the same Mac Pro 2019, the following connection can be implemented to get the doubled capacity, the doubled performance, and the highest RAID level data protection for up to 5000 MB/s between storages and Mac Pro 2019 in favor of the 8K (7680×4320) video editing and post production.
Equipment Requirement:
。 Two units of PCIe Gen3 NS780S-G3 storage
(Can be two of any Netstor’s PCIe interface storages) 。 One tower Mac Pro 2019
(Can be any workstation with PCIe 3.0 slots)
Scheme

By the above powerful and effective solution, it will make 8K video production feasible for more digital content creators. The combination of Netstor unit and Mac Pro 2019 does truly enable editing workflows to play back at 7680×4320 resolution digital content files. Additionally, with Mac’s internal AMD Radeon Pro Vega II graphics processors, the real-time Ultra HD editing can effortlessly be achieved via the implementation of dual ultra high-speed PCI Express 3.0 NS780S-G3 desktop storages.
Furthermore, through the application, it surely empowers the digital content creators to receive the performance gain; real-time encoding is even possible by the seamless integration of Netstor unit working with professional software such as Adobe Premiere Pro, Blackmagic Design DaVinci Resolve, and many more in favor of the 8K editing workflows.

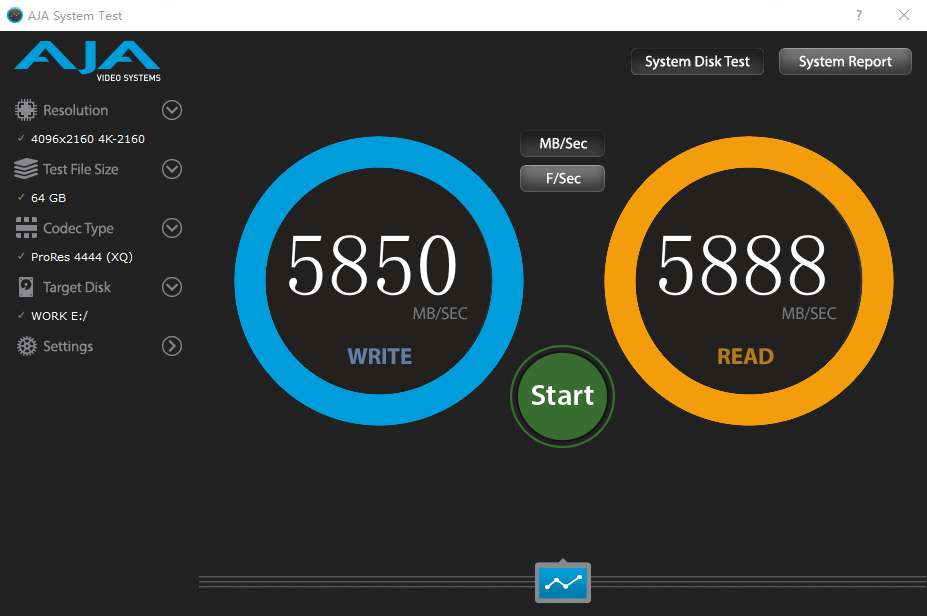

5850
5888
Testing Environment:
- PC motherboard brand and model: ASRock EPC621D8A motherboard
- CPU model: Intel Xeon W-3275M
- RAM: DDR4 ECC 2933 MHz 16 GB × 6 (total: 96 GB)
- GPU card installed: AMD Radeon RX 5700 XT graphics card
- SSD spec: Gloway M.2 NVMe 1TB SSD
- Operating System: Windows 10
- Two NS780S-G3 storage enclosures are connected to the PC
- Each NS780S-G3 storage is installed with sixteen WD 4TB SAS HDDs (model: HUS726T4TAL5204) created as a RAID 6 volume (56 TB) by the ARC-1883ix-16 RAID card
- Then use PC Windows 10’s Disk Management to set the two RAID 6 volumes as one software RAID 0 volume (112 TB)
|
