NA380A-G3

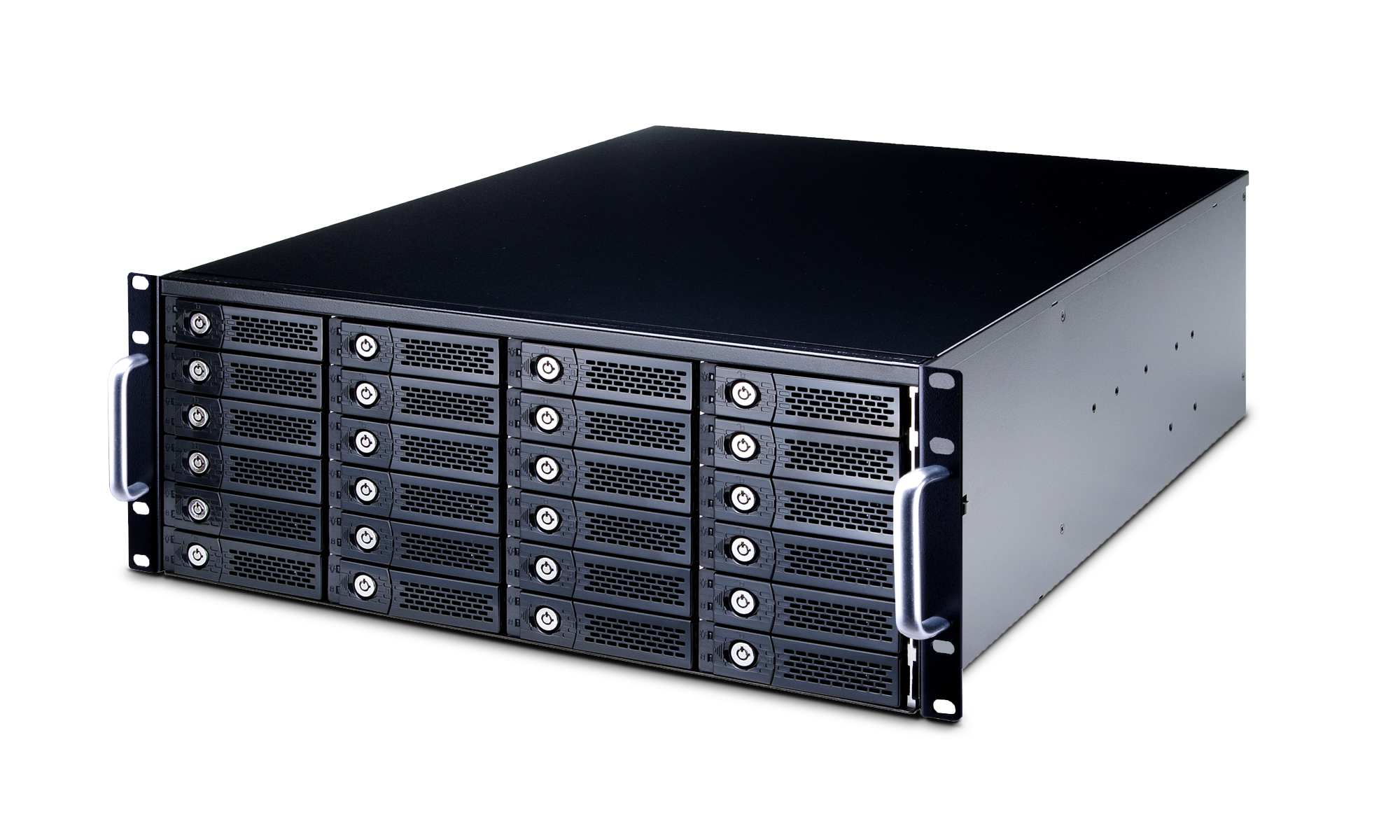

4U 24-Bay External PCIe ×8 JBOD Storage with PCIe Slot Expansion

Overview

Marvelous Storage plus PCIe Expansion Architecture

Following the long-term popular product line of Netstor storage plus PCIe expansion solution, now the whole new third generation has been freshly released to the industry. Featuring world’s most excellent design to have both storage and PCIe expansion integrated in the same unit architecture, in addition to the large storage it renders to computers, Netstor NA380A-G3 provides PCIe slots within storage chassis allowing users to make the easiest expansion of varied specialty PCIe cards to the computer servers ever.






64Gbps Ultra High Bandwidth – PCIe Gen3 x8

An ultra fast, high tech PCIe Gen3 switch has been thoughtfully built on the PCIe slots backplane within Netstor storage enclosure to allow each PCIe 3.0 slot in the unit to be kept at highest, full performance and achievements.




Up to 24 Bays Great Storage Capacity

Designed 4U 24-bay storage chassis with support of twenty-four hot-swappable drive trays. As each tray attached with 12 TB HDD, total usable storage is up to 288 TB capacity for work.

* Note: 3.5" HDD sold separately.

PCIe Expansion Single Slot to Three Slots

The first-rate and powerful design function for NA380A-G3 is to transform any single PCI Express slot on computer motherboard into three available PCI Express slots for users in favor of high performance and production. Except the necessary RAID card to be added, the IT administrators can still choose to attach two more third-party PCIe cards in Netstor unit to add extra accomplishments to computer servers.







Broad Range of RAID Card Support

Based on the application and demands, users can choose their own desired brand/model of RAID card or SAS Host Bus Adapter (HBA) in the rackmount storage for work. By utilizing a twenty-four port RAID card, the Netstor JBOD immediately turns into an enterprise RAID storage with RAID level protection including 0, 1, 10, 3, 5, 6, 30, 50, and 60.

* Note: A SAS Host Bus Adapter (HBA) is a non-RAID adapter that provides JBOD only option to storage.

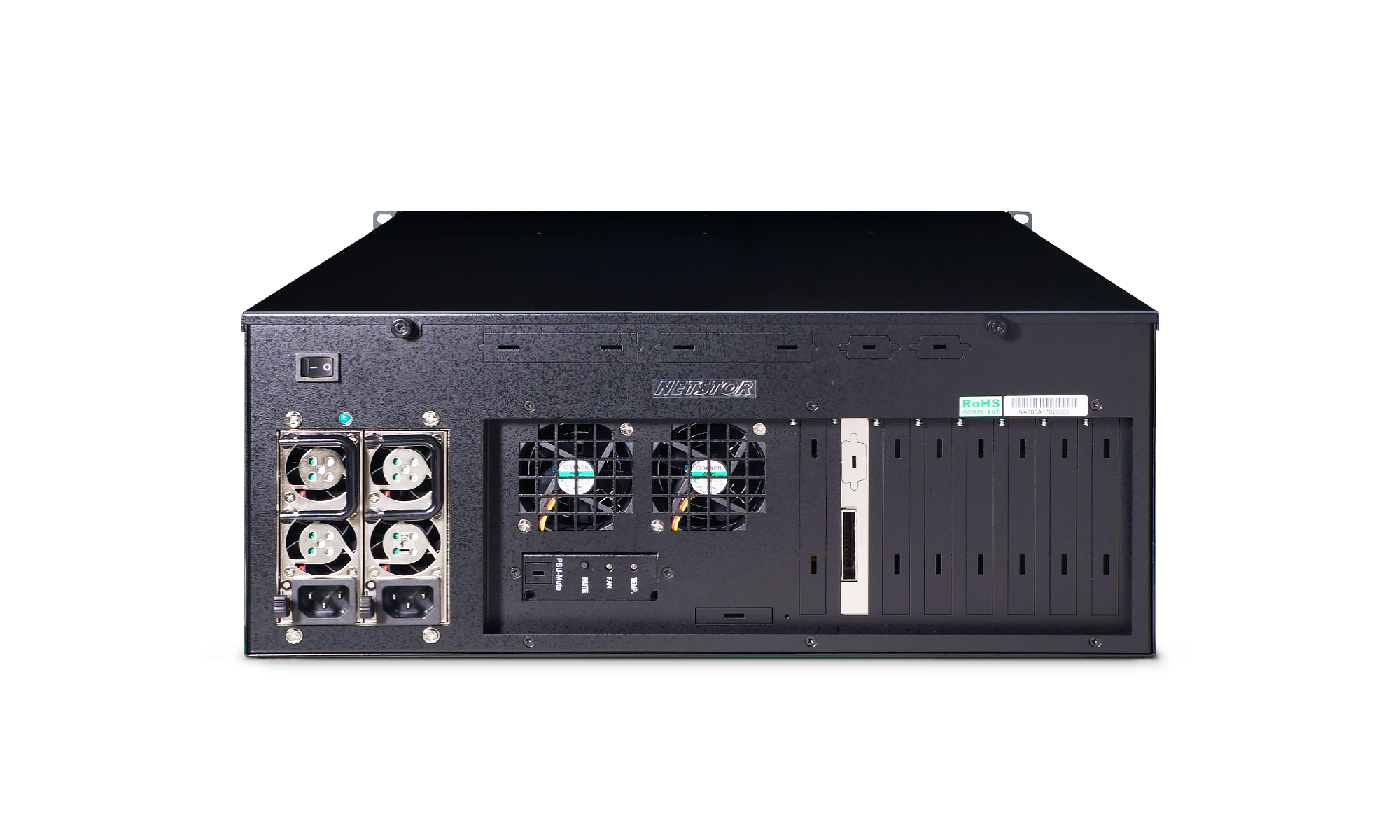

Redundant High-Efficiency PSU

The Netstor 4U storage is built with an industrial, server-grade 650W redundant PSU that is guaranteed to have the highest reliability to the users and the IT system integrators in support of 24/7 operation application with no system downtime to continuously working with the computer server/workstation. Additionally, the PSU has considerately reserved one Molex 4-pin power cable for PCIe add-on card in the Netstor unit for extra power.





Multi Platform Support

The NA380A-G3 is created to support all kinds of computer operating system platforms, and the storage itself simply doesn’t require a driver for operation and application. Thus the Netstor 24-bay storage does work with all computers/servers running Windows/Linux and tower Mac Pro running macOS.

* Note: Whether the third-party PCIe card requires a driver depends on if the card needs driver at the O.S. level.

Specs

Specifications

  NA380A-G3
Host Interface External PCIe 3.0 x8
Data Transfer Rate Up to 64Gbps
HDD Interface SAS/SATA (12G/6Gbps)
No. of Disk(s) Up to 24 (For 3.5" HDD & sold separately)
RAID Levels Requires a RAID card with internal 24 port (RAID card sold separately)
PCIe Slot Expansion Three PCIe3.0 x8 slots (Two slots are available for PCIe x16 cards)
Storage Expansion NA380A-G3 can be daisy chain together as many as the RAID control card can be recognized by Host PC or Server
LED Display for Enclosure Fan normal - Green; Fan failure - Red
Temp. normal - Green; Temp. over 50°C - Red
LED Display for each Tray White - Power On Indicator
Flash Blue - HDD Accessing Indicator
Red - HDD Failure Indicator
Alarm Mutable buzzer beeping for fan failure or over temperature occurs
Material Heavy-duty cold-rolled steel Housing
Power Supply Power Supply 600W Redundant PSU (High-Efficiency & Low Noise)
Input: 90-230 VAC/50-60 HZ
Output: +5V and +12V
Dimension 559(D) x 482(W) x 176(H) mm
22 (D) x 19 (W) x 6.93 (H) inch
Cooling Three 90 x90 x25 mm and Two 60 x60 x25 mm cooling fans
System Support Windows, Linux, Mac OS
O.S. Support OS Independent
PCIe card Driver Request Third-party PCIe card should support OS driver
PCIe card Size Available Card length within 305mm and full height PCIe card
Operating Temperature 5 to 40°C (41 to 104°F)
Storage Temperature -10 to 50°C (14 to 122°F)
Relative Humidity 20 to 80% (non-condensing)
Package Content Enclosure x 1
HDD Tray x 24 (Installed)
PCIe 3.0 x8 Host Adapter x 1
PCIe Gen3 x8 cable x 1 (1.5 meter)
Internal miniSAS cable x 6
Hard Disk Drive mounting screw x 96
Key for HDD tray x 2
Power Cord x 2
Host Interface
External PCIe 3.0 x8
Data Transfer Rate
Up to 64Gbps
HDD Interface
SAS/SATA (12G/6Gbps)
No. of Disk(s)
Up to 24 (For 3.5" HDD & sold separately)
RAID Levels
Requires a RAID card with internal 24 port (RAID card sold separately)
PCIe Slot Expansion
Three PCIe3.0 x8 slots (Two slots are available for PCIe x16 cards)
Storage Expansion
NA380A-G3 can be daisy chain together as many as the RAID control card can be recognized by Host PC or Server
LED Display for Enclosure
Fan normal - Green; Fan failure - Red
Temp. normal - Green; Temp. over 50°C - Red
LED Display for each Tray
White - Power On Indicator
Flash Blue - HDD Accessing Indicator
Red - HDD Failure Indicator
Alarm
Mutable buzzer beeping for fan failure or over temperature occurs
Material
Heavy-duty cold-rolled steel Housing
Power Supply
Power Supply 650W Redundant PSU (High-Efficiency & Low Noise)
Input: 90-230 VAC/50-60 HZ
Output: +5V and +12V
Dimension
559(D) x 482(W) x 176(H) mm
22 (D) x 19 (W) x 6.93 (H) inch
Cooling
Three 90 x90 x25 mm and Two 60 x60 x25 mm cooling fans
System Support
Windows, Linux, Mac OS
O.S. Support
OS Independent
PCIe card Driver Request
Third-party PCIe card should support OS driver
PCIe card Size Available
Card length within 305mm and full height PCIe card
Operating Temperature
5 to 40°C (41 to 104°F)
Storage Temperature
-10 to 50°C (14 to 122°F)
Relative Humidity
20 to 80% (non-condensing)
Package Content
Enclosure x 1
HDD Tray x 24 (Installed)
PCIe 3.0 x8 Host Adapter x 1
PCIe Gen3 x8 cable x 1 (1.5 meter)
Internal miniSAS cable x 6
Hard Disk Drive mounting screw x 96
Key for HDD tray x 2
Power Cord x 2

Accessories

Model No. Description
NA380A-G3 4U 24 bay PCIe to Combo SAS/SATA JBOD and PCIe Expansion Chassis, with redundant 650W Power Supply, PCIe 3.0 x8 host adapter and PCIe Gen3 x8 cable
BARC1883IX24 Areca's ARC-1883ix-24, internal 24 port SAS/SATA RAID Adapter, Dual Core RAID-on-Chip 1.2GHz processor, Supports RAID level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD
Model No. - NA380A-G3
4U 24 bay PCIe to Combo SAS/SATA JBOD and PCIe Expansion Chassis, with redundant 650W Power Supply, PCIe 3.0 x8 host adapter and PCIe Gen3 x8 cable
Model No. - BARC1883IX24
Areca's ARC-1883ix-24, internal 24 port SAS/SATA RAID Adapter, Dual Core RAID-on-Chip 1.2GHz processor, Supports RAID level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD
