NA333A-G3

3U 16-Bay External PCIe ×8 JBOD Storage with PCIe Slot Expansion

Overview

Remarkable Storage plus PCIe Expansion Architecture

Following the long-term popular product line of Netstor storage plus PCIe expansion solution, now the all new third generation has been freshly released to the industry. World’s most excellent design to have both storage and PCIe expansion integrated in the same unit architecture. In addition to the large storage it renders to computers, Netstor NA333A-G3 provides PCIe slots within storage chassis allowing users to make the easiest ever expansion of varied specialty PCIe cards to the computer servers.





64Gbps Ultra High Bandwidth – PCIe Gen3 x8

An ultra fast, high tech PCIe Gen3 switch has been thoughtfully built on the PCIe slots backplane within Netstor storage enclosure to allow each PCIe 3.0 slot in the unit to be kept at highest, full performance and achievements.




Most Space Utilization Efficiency Storage Enclosure

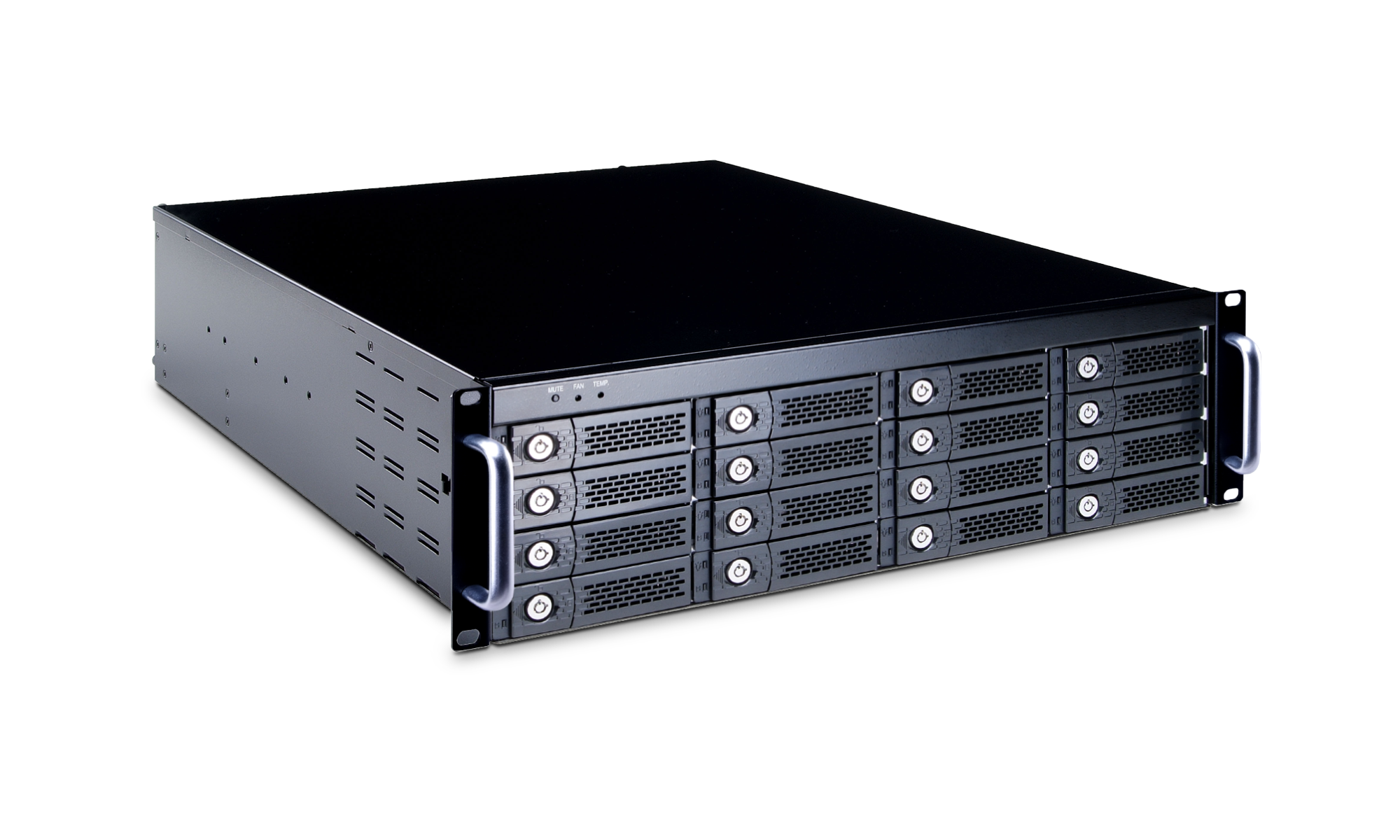

Designed 3U 16-bay storage chassis, the NA333A-G3 supports the most space utilization efficiency characteristic, featuring the utmost high-density trait that makes the storage be excellently fitted in any site for work. With the support of sixteen hot-swappable drive trays, as each tray attached with 12 TB HDD, total usable storage is up to 192 TB capacity in favor of any production and application.






* Note: 3.5" HDD sold separately.

PCIe Expansion Single Slot to Three Slots

The first-rate and powerful design function for NA333A-G3 is to transform any single PCI Express slot on computer motherboard into three available PCI Express slots for users in favor of high performance and production. Except the necessary RAID card to be added, the IT administrators can still choose to attach two more third-party PCIe cards in Netstor unit to add extra accomplishments to computer servers.






Wide Range of RAID Card Support

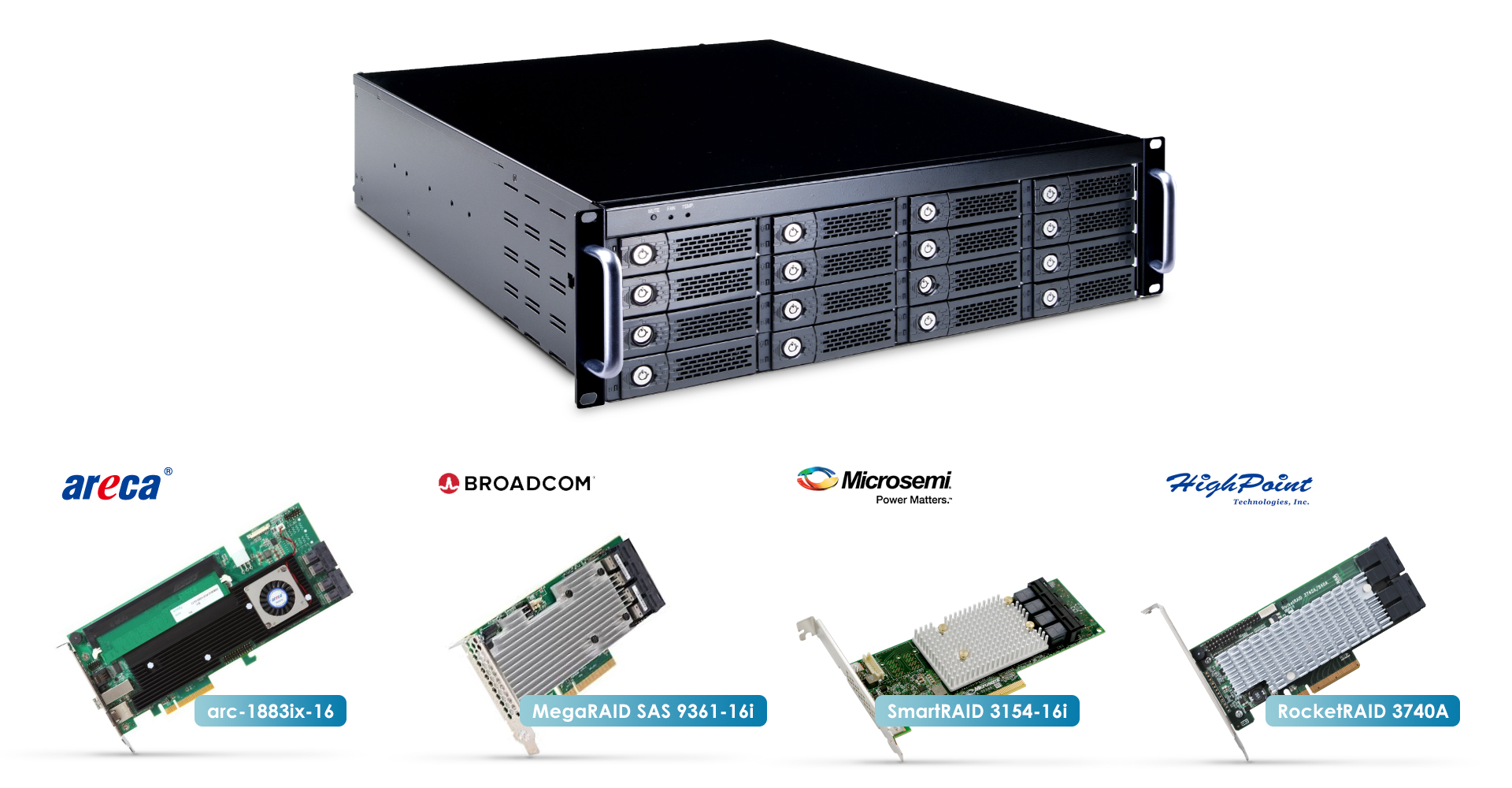

Based on the application and demands, users can choose their own desired brand/model of RAID card or SAS Host Bus Adapter (HBA) in the rackmount storage for work. By utilizing a sixteen port RAID card, the Netstor JBOD immediately turns into an enterprise RAID storage with RAID level protection including 0, 1, 10, 3, 5, 6, 30, 50, and 60.

* Note: A SAS Host Bus Adapter (HBA) is a non-RAID adapter that provides JBOD only option to storage.

Redundant High-Efficiency PSU

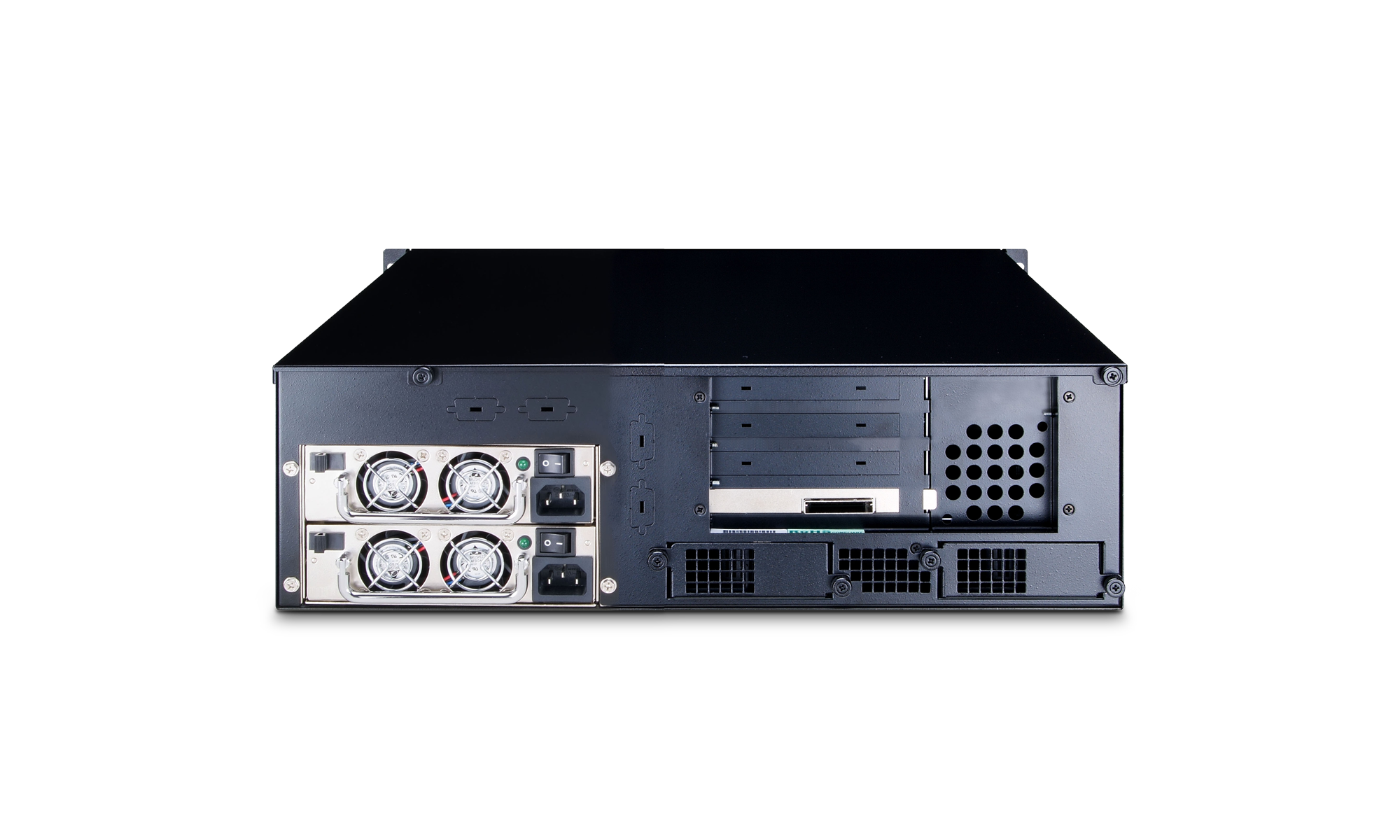

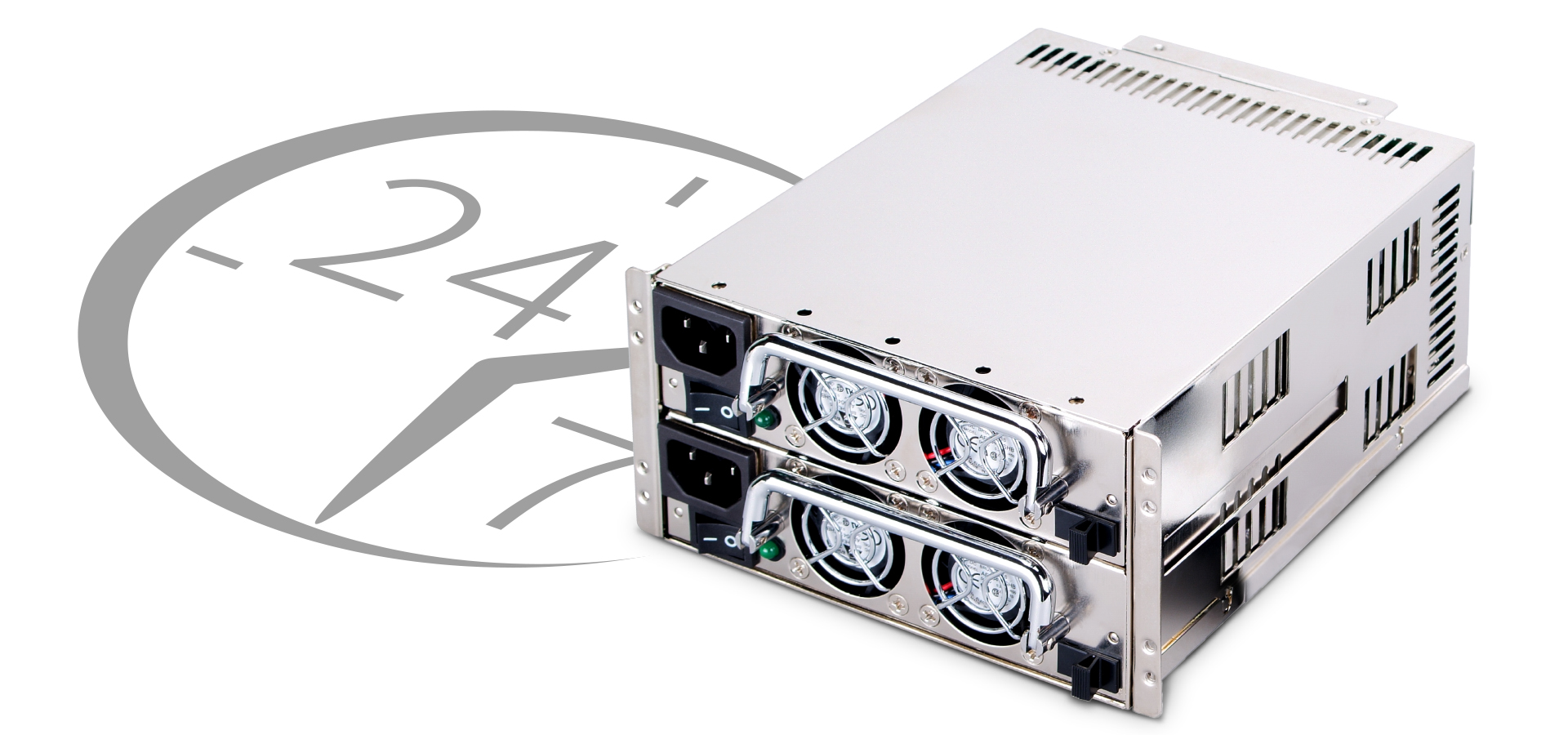

The Netstor 3U storage is built with an industrial, server-grade 400W redundant PSU that is guaranteed to have the highest reliability to the users and the IT system integrators in support of 24/7 operation application with no system downtime to continuously working with the computer server/workstation. In addition, the PSU has considerately reserved one Molex 4-pin power cable for PCIe add-on card in the Netstor unit for extra power.

Multi Platform Support

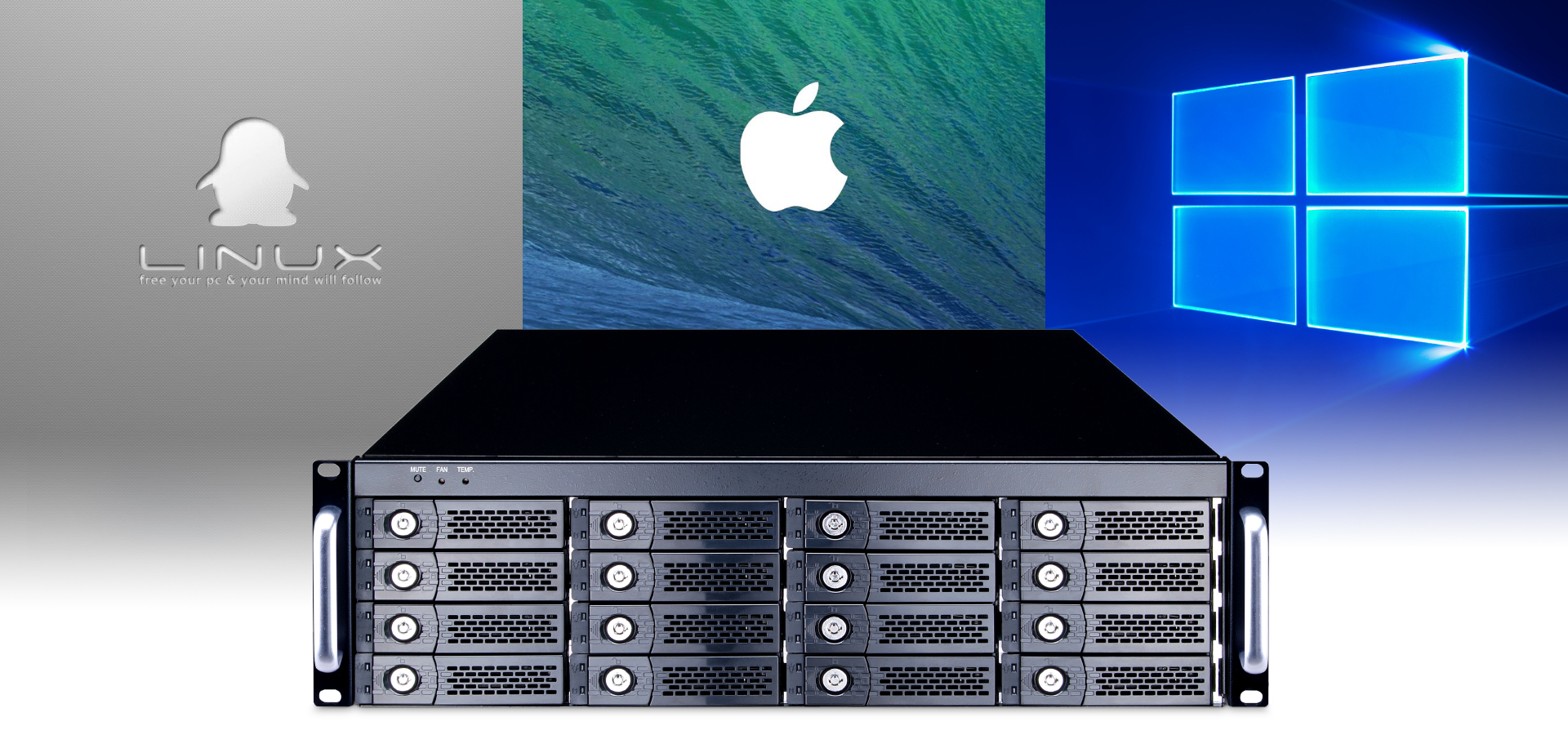

The NA333A-G3 is created to support all kinds of computer operating system platforms, and the storage itself simply doesn’t require a driver for operation and application. Thus the Netstor 16-bay storage does work with all computers/servers running Windows/Linux and tower Mac Pro running macOS.

* Note: Whether the third-party PCIe card requires a driver depends on if the card needs driver at the O.S. level.

Specs

Specifications

  NA333A-G3
Host Interface External PCIe 3.0 x8
Data Transfer Rate Up to 64Gbps
HDD Interface SAS/SATA (12G/6Gbps)
No. of Disk(s) Up to 16 (For 3.5" HDD & sold separately)
RAID Levels Requires a RAID card with internal 16 port (RAID card sold separately)
PCIe Slot Expansion Three PCIe3.0 x8 slots (Two slots are available for PCIe x16 cards)
Storage Expansion NA333A-G3 can be daisy chain together as many as the RAID control card can be recognized by Host PC or Server
LED Display for Enclosure Fan normal - Green; Fan failure - Red
Temp. normal - Green; Temp. over 50°C - Red
LED Display for each Tray White - Power On Indicator
Flash Blue - HDD Accessing Indicator
Red - HDD Failure Indicator
Alarm Mutable buzzer beeping for fan failure or over temperature occurs
Material Heavy-duty cold-rolled steel Housing
Power Supply 400W Redundant PSU
Input: 90-230 VAC/50-60 HZ
Output: +5V and +12V
Dimension 559(D) x 482(W) x 131(H) mm
22 (D) x 19 (W) x 5.16 (H) inch
Cooling Two 80x 80x 25mm (inner)
Two 75x 75x 28mm Blower (rear)
System Support Windows, Linux, Mac OS
O.S. Support OS Independent
PCIe card Driver Request Third-party PCIe card should support OS driver
PCIe card Size Available Card length within 305mm and full height PCIe card
Operating Temperature 5 to 40°C (41 to 104°F)
Storage Temperature -10 to 50°C (14 to 122°F)
Relative Humidity 20 to 80% (non-condensing)
Package Content Enclosure x 1
HDD Tray x 16 (Installed)
PCIe 3.0 x8 Host Adapter x 1
PCIe Gen3 x8 cable x 1 (1.5 meter)
Internal miniSAS cable x 4
Hard Disk Drive mounting screw x 64
Key for HDD tray x 2
Power Cord x 2
Host Interface
External PCIe 3.0 x8
Data Transfer Rate
Up to 64Gbps
HDD Interface
SAS/SATA (12G/6Gbps)
No. of Disk(s)
Up to 16 (For 3.5" HDD & sold separately)
RAID Levels
Requires a RAID card with internal 16 port (RAID card sold separately)
PCIe Slot Expansion
Three PCIe3.0 x8 slots (Two slots are available for PCIe x16 cards)
Storage Expansion
NA333A-G3 can be daisy chain together as many as the RAID control card can be recognized by Host PC or Server
LED Display for Enclosure
Fan normal - Green; Fan failure - Red
Temp. normal - Green; Temp. over 50°C - Red
LED Display for each Tray
White - Power On Indicator
Flash Blue - HDD Accessing Indicator
Red - HDD Failure Indicator
Alarm
Mutable buzzer beeping for fan failure or over temperature occurs
Material
Heavy-duty cold-rolled steel Housing
Power Supply
400W Redundant PSU
Input: 90-230 VAC/50-60 HZ
Output: +5V and +12V
Dimension
559(D) x 482(W) x 131(H) mm
22 (D) x 19 (W) x 5.16 (H) inch
Cooling
Two 80x 80x 25mm (inner)
Two 75x 75x 28mm Blower (rear)
System Support
Windows, Linux, Mac OS
O.S. Support
OS Independent
PCIe card Driver Request
Third-party PCIe card should support OS driver
PCIe card Size Available
Card length within 305mm and full height PCIe card
Operating Temperature
5 to 40°C (41 to 104°F)
Storage Temperature
-10 to 50°C (14 to 122°F)
Relative Humidity
20 to 80% (non-condensing)
Package Content
Enclosure x 1
HDD Tray x 16 (Installed)
PCIe 3.0 x8 Host Adapter x 1
PCIe Gen3 x8 cable x 1 (1.5 meter)
Internal miniSAS cable x 4
Hard Disk Drive mounting screw x 64
Key for HDD tray x 2
Power Cord x 2

Accessories

Model No. Description
NA333A-G3 3U 16 bay PCIe to Combo SAS/SATA JBOD and PCIe Expansion Chassis, with redundant 400W Power Supply, PCIe 3.0 x8 host adapter and PCIe Gen3 x8 cable
BARC1883IX16 Areca's ARC-1883ix-16, internal 16 port SAS/SATA RAID Adapter, Dual Core RAID-on-Chip 1.2GHz processor, Supports RAID level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD
Model No. - NA333A-G3
3U 16 bay PCIe to Combo SAS/SATA JBOD and PCIe Expansion Chassis, with redundant 400W Power Supply, PCIe 3.0 x8 host adapter and PCIe Gen3 x8 cable
Model No. - BARC1883IX16
Areca's ARC-1883ix-16, internal 16 port SAS/SATA RAID Adapter, Dual Core RAID-on-Chip 1.2GHz processor, Supports RAID level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD
