Netstor Technology

NA260A

Economy 4U Rackmountable PCIe 3.0 x8 (64Gbps) upstream port PCIe Expansion enclosure design for expansion up to 4* PCIe Gen3 slots

Overview

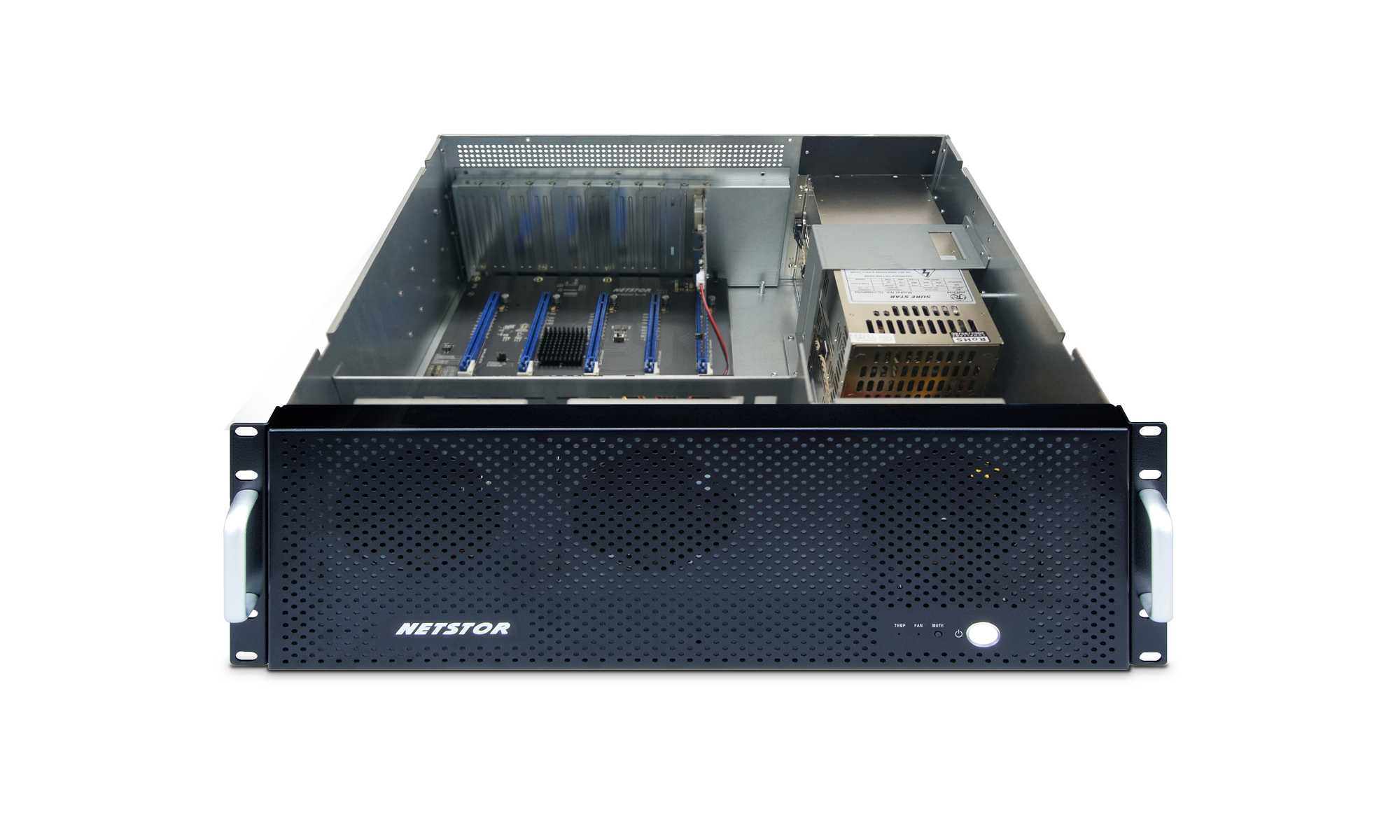

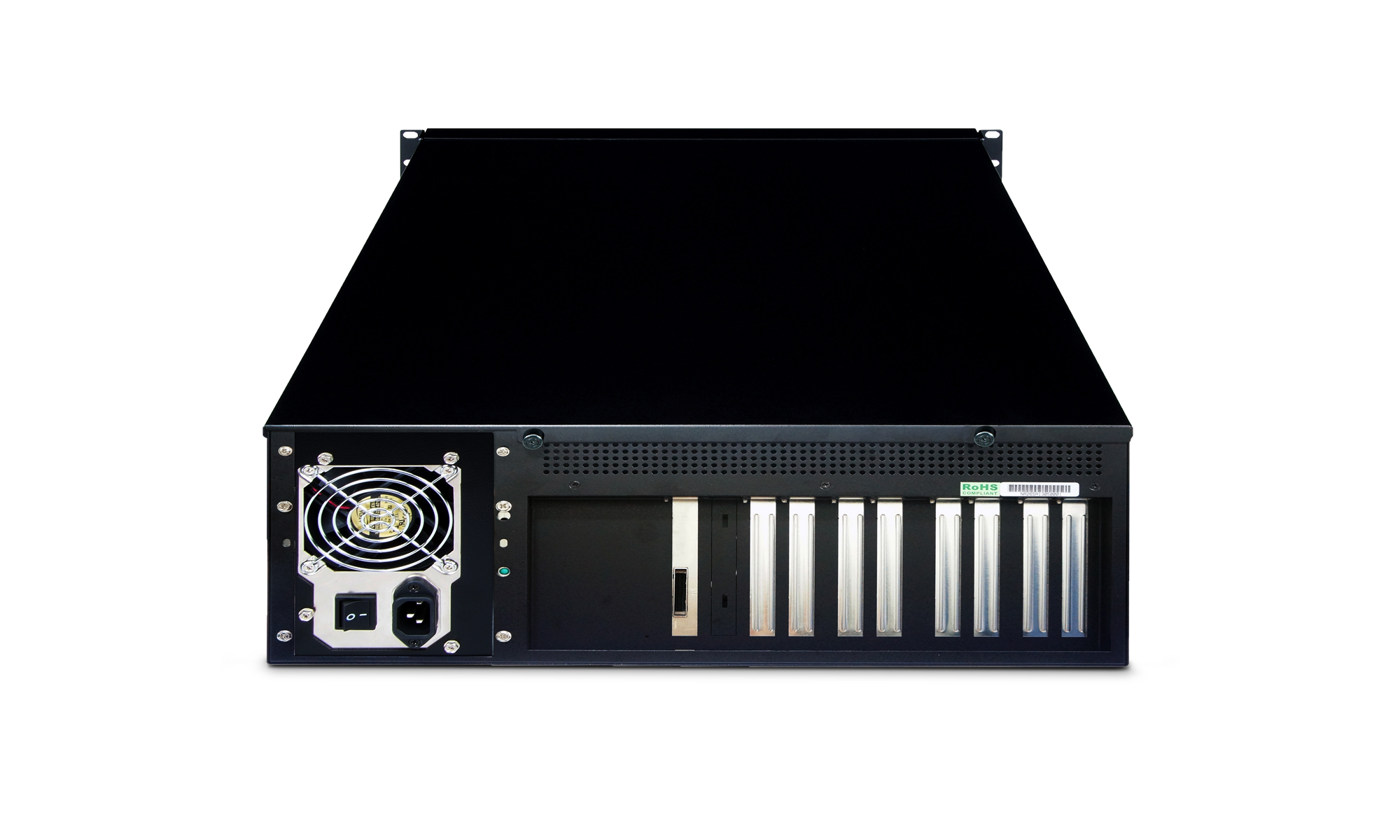

Economy Rackmount Expansion Enclosure

NA260A is an economy-class 19" rackmount expansion enclosure that works seamlessly with server and host computer. Through the adding of the rackmountable Netstor expansion enclosure, any servers can be added with extra performance to accomplish their works smoothly.

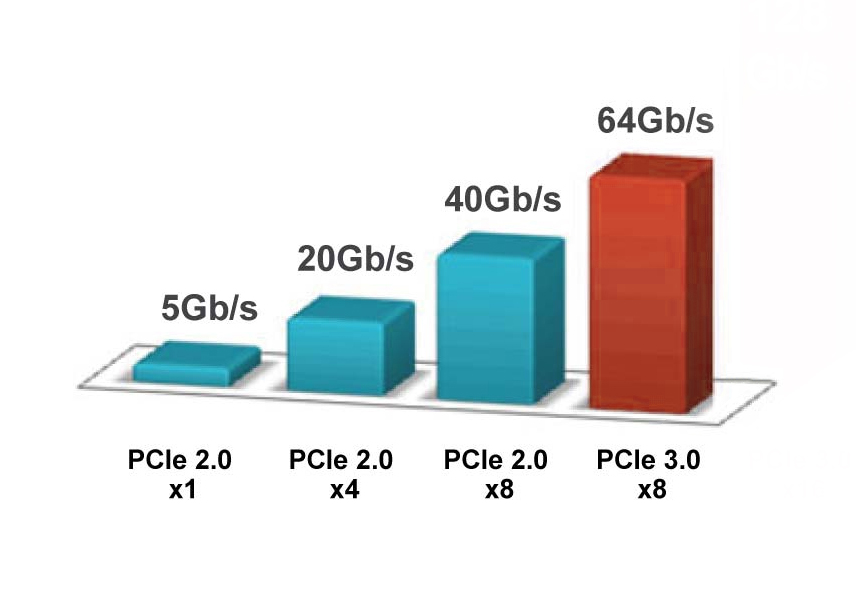

64Gbps Bandwidth – PCIe Gen3 x8

The enclosure implements the latest PCIe 3.0 technology and PCIe Gen3 x8 (eight-lane) host interface with 8Gbps throughput per lane, offering blazing-fast data transfer rates of up to 64Gbps between host and expansion enclosure, dedicated for varied professional applications.

Supporting up to 4 Dual-Width Professional Cards

The expansion enclosure is designed to have 4 PCIe x16 slots (x8 electrically) on NA260A backplane supporting up to 4 double-width PCIe Gen3 cards, or single-slot PCIe cards. In addition, the enclosure can accommodate all combinations of PCIe 3.0 ×1, ×4, ×8 and ×16 PCIe cards for every application with backward compatibility for Gen2 pro cards to work with the host computer.

Great Sufficient Powering

1200 W PSU

80 PLUSGold

6+2 pinPCI-E cables

Dedicated Single 1200W or
Redundant 1350W PSU

Some professional cards require high power wattage for work; considering the hi-power requirement aspect, Netstor has considerately planned a dedicated, high-efficient single 1200W PSU in NA260A expansion enclosure to allow up to 4 high-performing pro cards to process simultaneously with highest reliability, or a redundant 1350W PSU in rackmount enclosure to allow NA260A to be deployed at cabinet room with ultimate reliability and stability.

Supplementary 6+2 pin PCI-E Power Cables

The chassis has been thoughtfully designed to provide extra PCI-E power cables to meet each professional card's supplementary power requirement. Furthermore, any combinations of 6-pin and 8-pin PCI-E power connectors on each pro card are supported by NA260A.

Outstanding, First-Rate CFM Airflow

Designed with three front large 9x9 cm cooling fan modules with each fan supporting 51 CFM (153 CFM for all), providing best airflow ventilation to enclosure for most excellent heat dissipation ever, and ensuring pro cards within chassis running long term without any high temp concern. Moreover, the fan speed of each cooling fan can be adjusted manually according to cards application situation within expansion chassis.

Specs

Specifications

	NA260A
Form Factor	4U Rackmount
Host Interface	Up to 64Gb/s external PCIe 3.0 x8
No. of Slot	4* PCI Express 3.0 x8 (x16 connector)
Card Length Available	Supports single or double width, full length,full height PCI Express Cards
LED Display for Enclosure	Power-On LED - Blue FAN normal – green; Fan failure – Red TEMP normal – green; TEMP Over 55°C – red
Cooling	Front: Three 90x 90x 25 mm cooling fans 51 CFM each fan @ full speed
Alarm	Buzzer beeping for fan failure or over temperature (over 55°C) occurs
Material	Solid heavy-duty cold-rolled steel housing
Power Supply	Model : NA260A-S Universal Single 1200W (High-Efficiency & Low Noise) Input: 90~230 VAC/50-60 HZ 12V @ 100A (Note: 1300W peak power @ 12 seconds)	Model : NA260A-R Universal Redundant 1350W (Server-grade) Input: 90~230 VAC/50-60 HZ 12V @ 98A
Dimension	448 (D) x 482 (W) x 177 (H) mm 17.6 (D) x 19 (W) x 7 (H) inch
O.S. support	OS Independent
Host Requirement	One PCIe 3.0 x8 / x16 slot and system has sufficient PCIe resources Note: Low profile available
Package Content	Enclosure x 1 PCIe 3.0 x8 host adapter card x 1 Low profile bracket x1 PCIe 3.0 x8 cable(1.5 meter) x 1 Power Cord x 1

Form Factor

4U Rackmount

Host Interface

Up to 64Gb/s external PCIe 3.0 x8

No. of Slot

4* PCI Express 3.0 x8 (x16 connector)

Card Length Available

Supports single or double width, full length,full height PCI Express Cards

LED Display for Enclosure

Power-On LED - Blue
FAN normal – green; Fan failure – Red
TEMP normal – green; TEMP Over 55°C – red

Cooling

Front: Three 90x 90x 25 mm cooling fans
51 CFM each fan @ full speed

Alarm

Buzzer beeping for fan failure or over temperature (over 55°C) occurs

Material

Solid heavy-duty cold-rolled steel housing

Power Supply

Model : NA260A-S Universal Single 1200W (High-Efficiency & Low Noise)
Input: 90~230 VAC/50-60 HZ
12V @ 100A

(Note: 1300W peak power @ 12 seconds)

Model : NA260A-R Universal Redundant 1350W (Server-grade)
Input: 90~230 VAC/50-60 HZ
12V @ 98A

Dimension

448 (D) x 482 (W) x 177 (H) mm
17.6 (D) x 19 (W) x 7 (H) inch

O.S. support

OS Independent

Host Requirement

One PCIe 3.0 x8 / x16 slot and system has sufficient PCIe resources

Note: Low profile available

Package Content

Enclosure x 1
PCIe 3.0 x8 host adapter card x 1
Low profile bracket x1
PCIe 3.0 x8 cable(1.5 meter) x 1
Power Cord x 1

Accessories

Model No.	Description
NA260A-S	4U Rackmount PCIe Gen3 Expansion Enclosure, 1200W Single Power Supply with extra 4* PCIe power connectors 6+2 pin & 4* PCIe 6 pin for up to 4 double width GPU cards, with one PCIe Gen3 x8 host adapter and one PCIe x8 cable.
NA260A-R	4U Rackmount PCIe Gen3 Expansion Enclosure, 1350W(2+1) Redundant Power Supply with extra 8* PCIe connectors 6+2 pin for up to 4 double width GPU cards, with one PCIe Gen3 x8 host adapter and one PCIe x8 cable
NP960A-H	Extra PCIe Gen3 x8 Host Adapter(Low Profile Available)
AAML6815	Extra PCIe 3.0 x8 cable length in 1.5 meter

Model No. - NA260A-S

4U Rackmount PCIe Gen3 Expansion Enclosure, 1200W Single Power Supply with extra 4* PCIe power connectors 6+2 pin & 4* PCIe 6 pin for up to 4 double width GPU cards, with one PCIe Gen3 x8 host adapter and one PCIe x8 cable.

Model No. - NA260A-R

4U Rackmount PCIe Gen3 Expansion Enclosure, 1350W(2+1) Redundant Power Supply with extra 8* PCIe connectors 6+2 pin for up to 4 double width GPU cards, with one PCIe Gen3 x8 host adapter and one PCIe x8 cable.

Model No. - NP960A-H

Extra PCIe Gen3 x8 Host Adapter(Low Profile Available)

Model No. - AAML6815

Extra PCIe 3.0 x8 cable length in 1.5 meter
