Host Interface
Dual port miniSAS (SFF8088)
HDD Interface
SAS/SATA (12G/6Gbps)
No. of Disk(s)
Up to 8
SAS Expander
None
LED Display for each Tray
White - Power On Indicator
Flash Blue - HDD Accessing Indicator
Red - HDD Failure Indicator
LED Display for Enclosure
Fan normal - Green; Fan failure - Red
Temp. normal - Green; Temp. over 50°C - Red
Material
Heavy-duty cold-rolled steel Housing
Dimension
456(D) x 482(W) x 88(H) mm
18 (D) x 19 (W) x 3.5 (H) inch
Power Supply

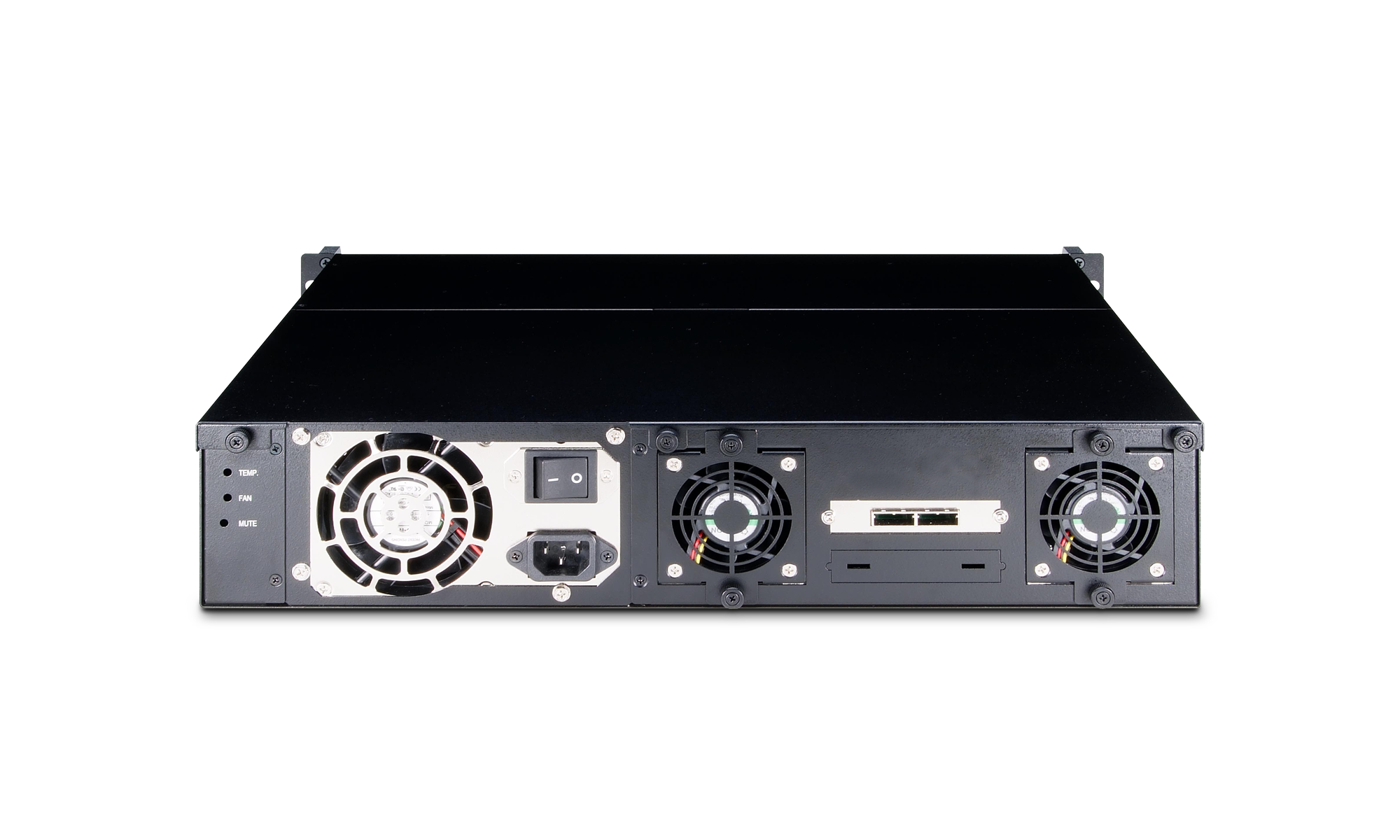

Model : NA341A-S
Server-grade 400W Single Power Supply
Low-noise Design
Universal: 100~240VAC, 50/60Hz

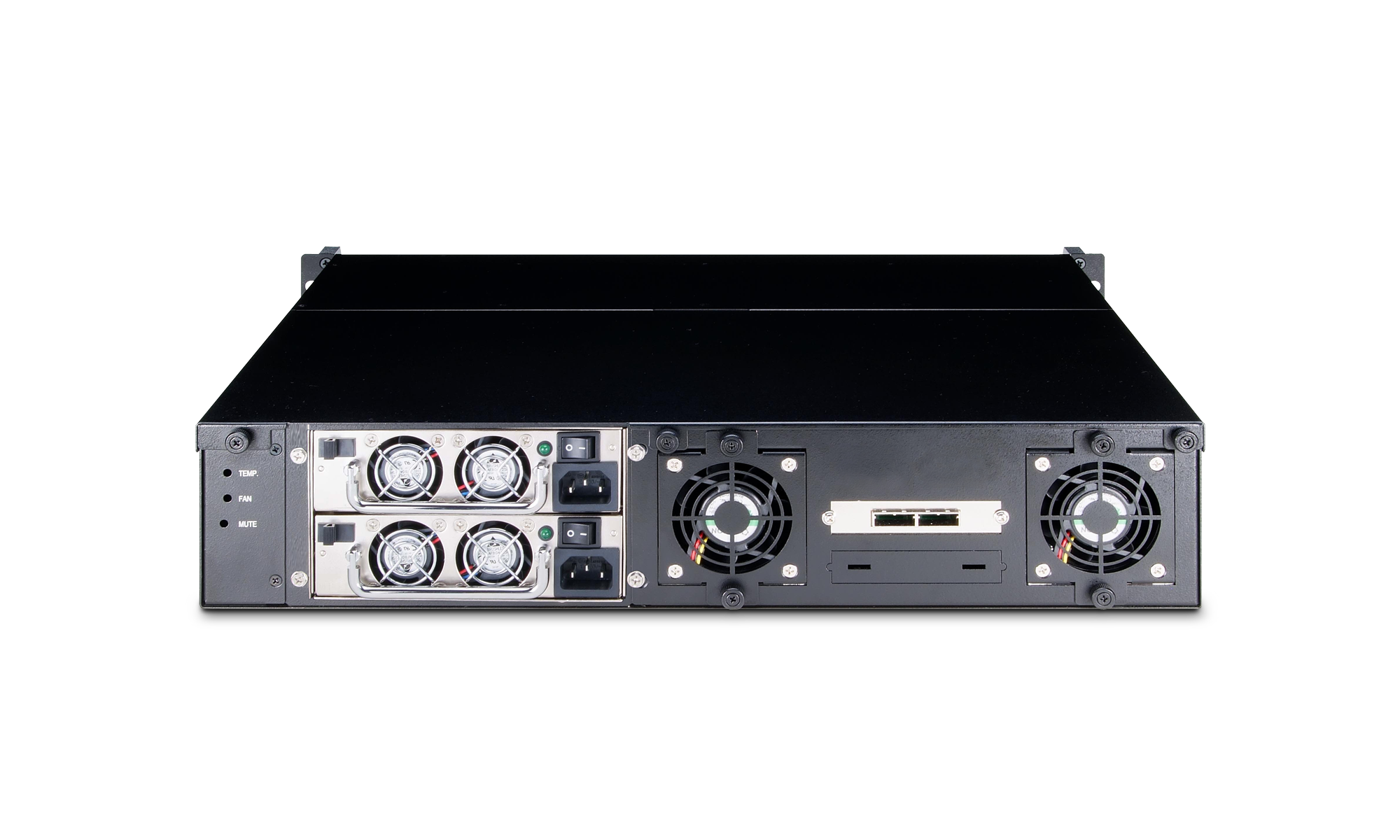

Model : NA341A-R
400W Redundant PSU (Server-grade)
Input: 90-230 VAC/50-60 HZ
Output: +5V and +12V

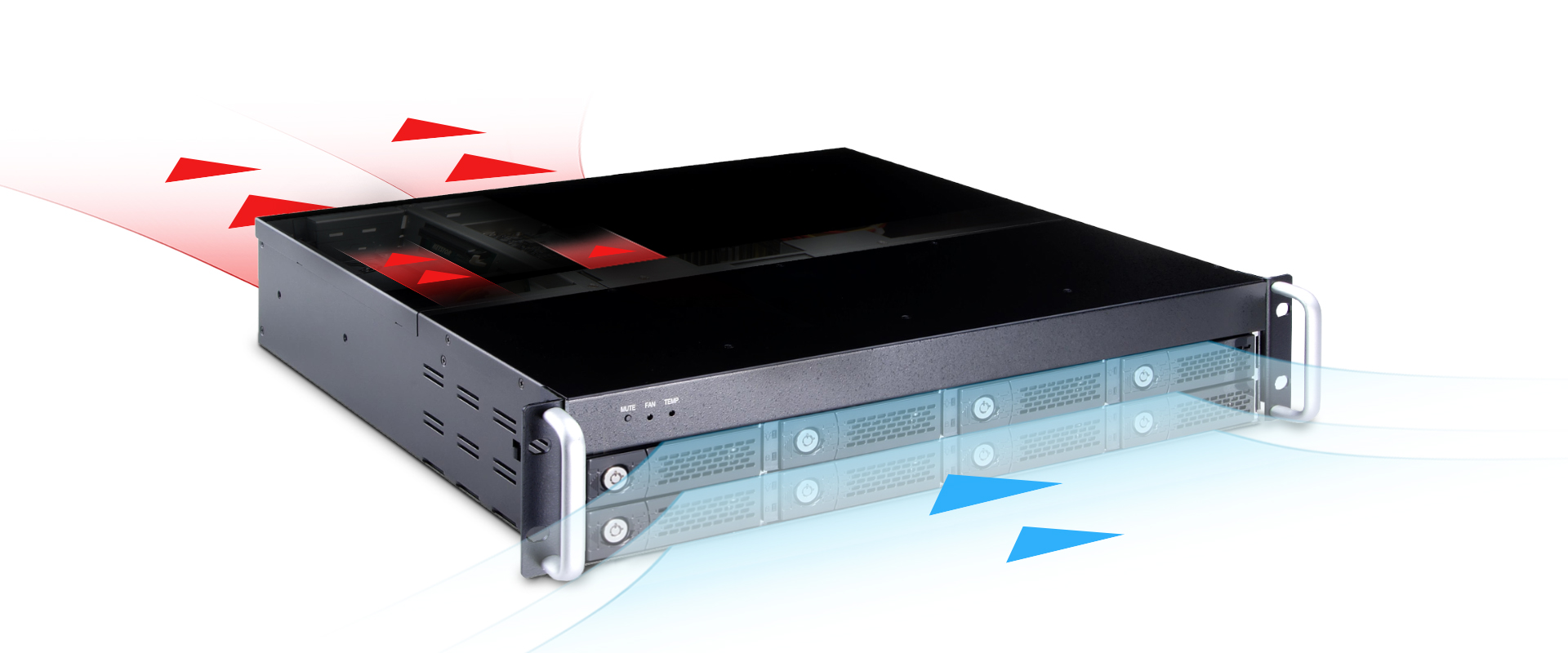

Cooling
Two 60x 60x 25mm Hot-swappable fan modules
O.S. Support
OS Independent
Operating Temperature
5 to 40°C (41 to 104°F)
Storage Temperature
-10 to 50°C (14 to 122°F)
Relative Humidity
20 to 80% (non-condensing)
Package Content
Enclosure x 1
HDD Tray x 8 (Installed)
Hard Disk Drive mounting screw x 32
Key for HDD tray x 2
Power Cord x 1(Single PSU) / Power Cord x 2(Redundant PSU)
Model No. - NA341A-S
2U 8 Bay SAS/SATA JBOD with dual miniSAS connectors, 400W Single power supply, without external cable
Model No. - NA341A-R
2U 8 Bay SAS/SATA JBOD with dual miniSAS connectors, 400W Redundant power supply, without external cable
Model No. - ANNA920C0340
Black Color Short Tray
Model No. - ATSRFR28TW
28" FRICTION SLIDE RAILS
