Host Interface
miniSAS-HD(SFF8644) up to 48Gbps Highest Bandwidth
HDD Interface
Model : NS388S-SE SAS/SATA (12G/6Gbps)
Model : NS388S-DE SAS (12G/6Gbps)
No. of Disk(s)
Up to 24 (for 2.5_inch)
SAS Expander
Model : NS388S-SE Single 12Gb/s SAS Expander
Model : NS388S-DE Dual 12Gb/s SAS Expanders
Host Redundancy
Model : NS388S-SE No
Model : NS388S-DE Yes

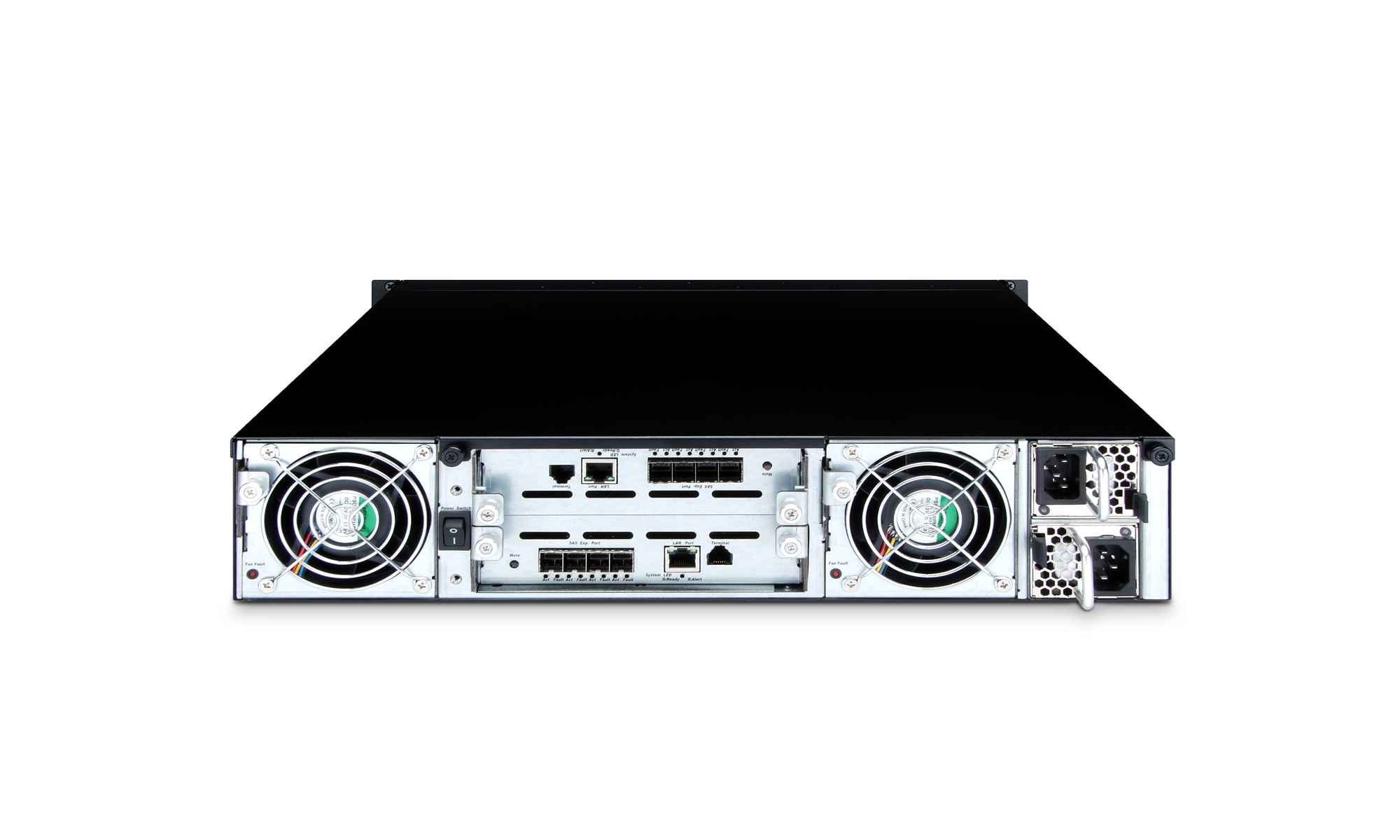

Expansion Port
Two miniSAS-HD(SFF8644) ports for next storage expansion
LED Display for each Tray
White - Power On Indicator
Flash Blue - HDD Accessing Indicator
Red - HDD Failure Indicator
Management
Support SES-2 Standard
Alarm
Cooling Fan
Over Temperature
Voltage
Power Supply
Material
Heavy-duty cold-rolled steel Housing
Dimension
450 (D) x 482(W) x 88 (H) mm
17.7 (D) x 19 (W) x 3.46 (H) inch

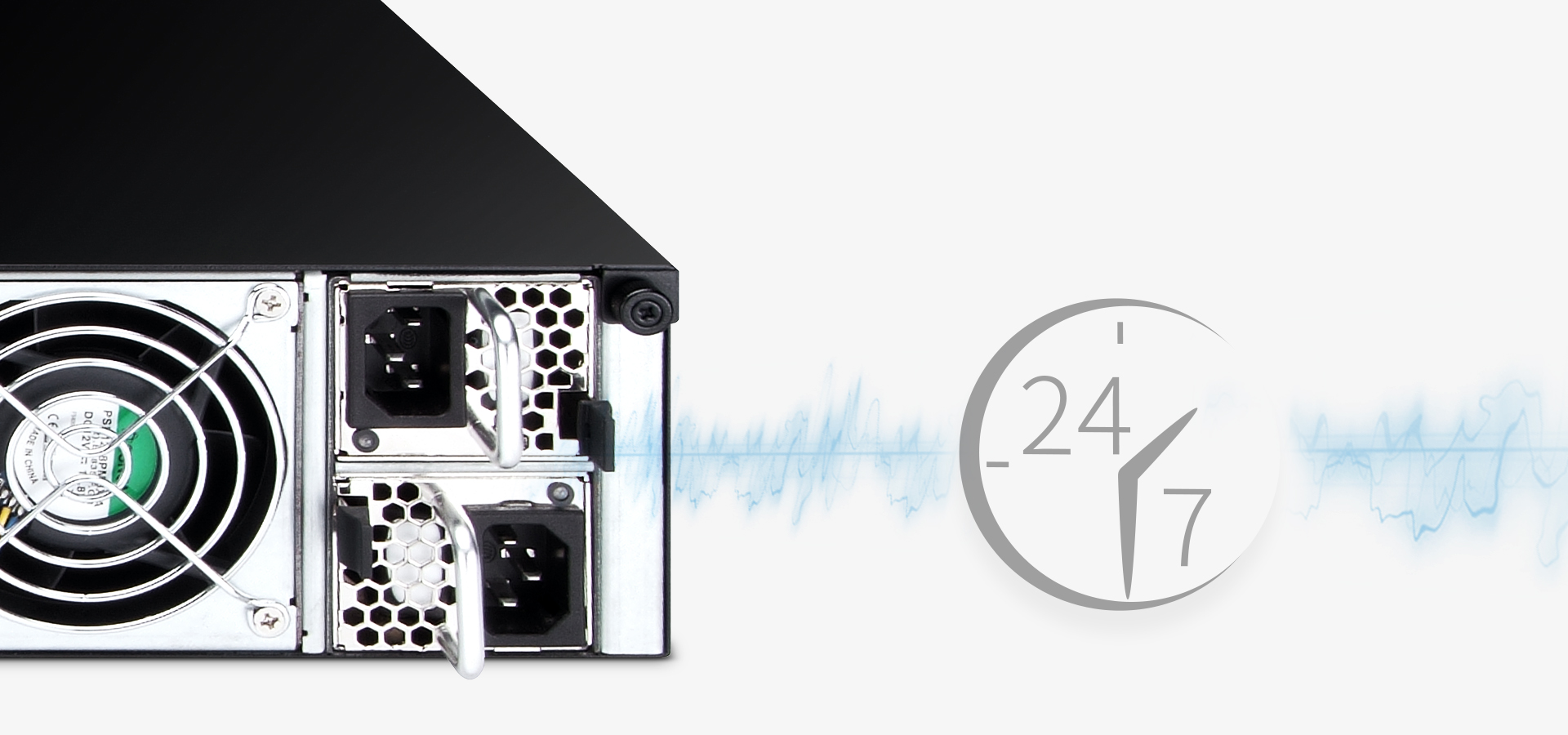

Power Supply
650W Redundant PSU (Server-grade)
Input: 90-230 VAC/50-60 HZ

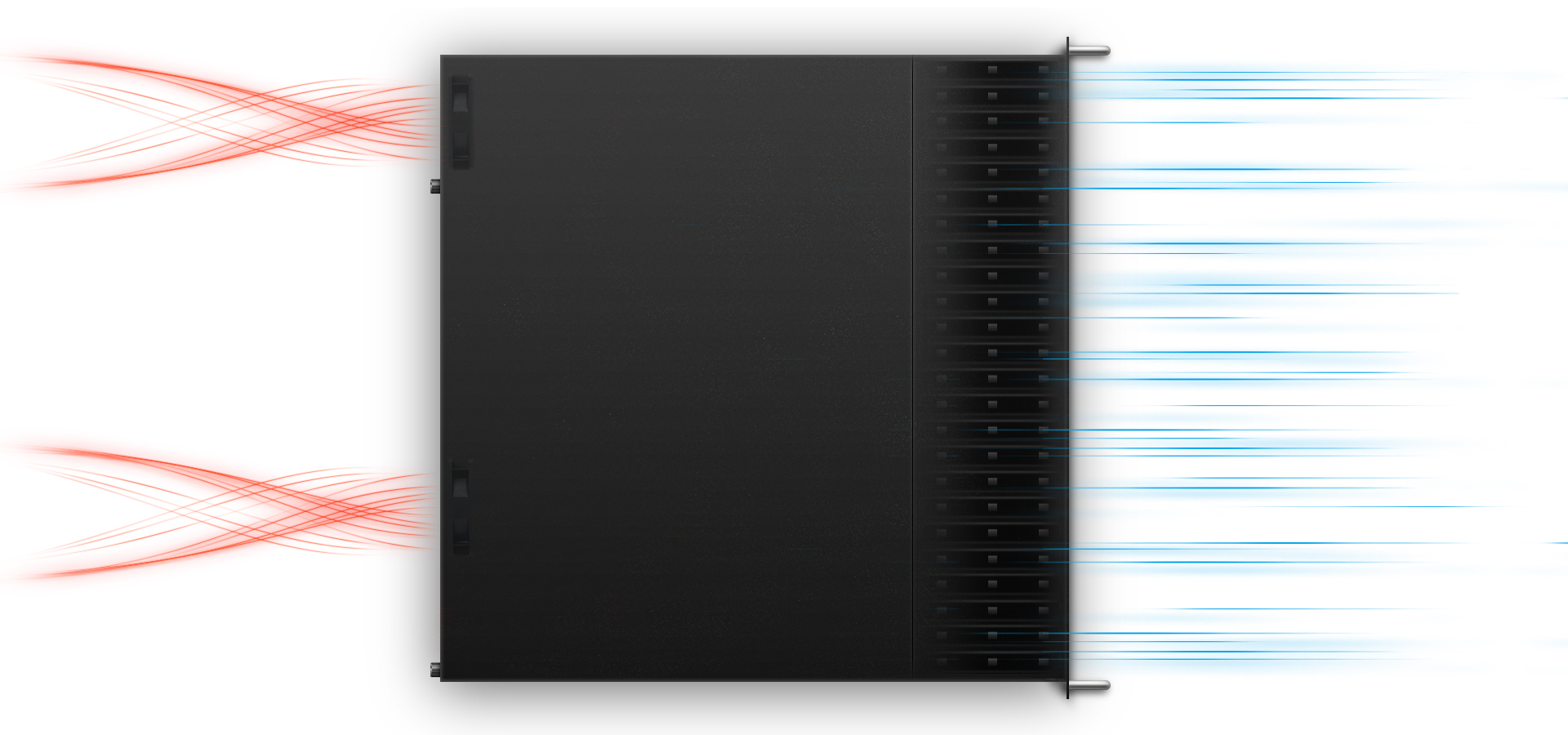

Cooling
Two 80x 80x 38mm (Hot-Swappable)
O.S. support
OS Independent
Operating Temperature
5 to 40°C (41 to 104°F)
Storage Temperature
-10 to 50°C (14 to 122°F)
Relative Humidity
20 to 80% (non-condensing)
Package Content
Enclosure x 1
HDD Tray x 24 (Installed)
Hard Disk Drive mounting screw x 96
Key for HDD tray x 2
Power Cord x 2
Model No. - NS388S-SE

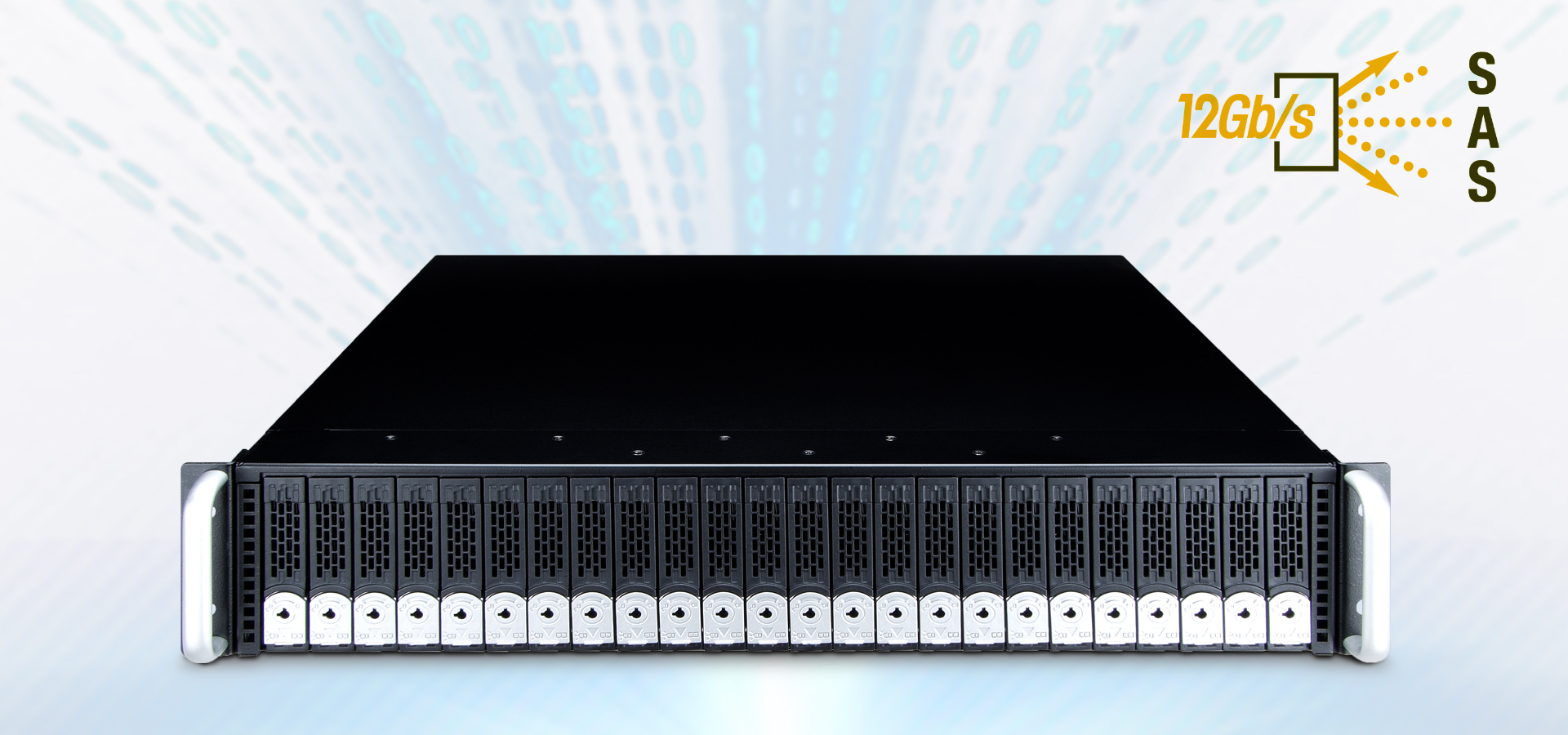

2U 24 bay(2.5_inch) SAS(Host) to SAS/SATA(Disk) JBOD with Single 12Gb/s SAS Expander Module, Redundant 650W Power Supply
Model No. - NS388S-DE
2U 24 bay(2.5_inch) SAS(Host) to SAS/SATA(Disk) JBOD with Dual 12Gb/s SAS Expander Modules, Redundant 650W Power Supply
Model No. - NS388S-EXP12G
12Gb/s SAS Expander Module for NS388S
