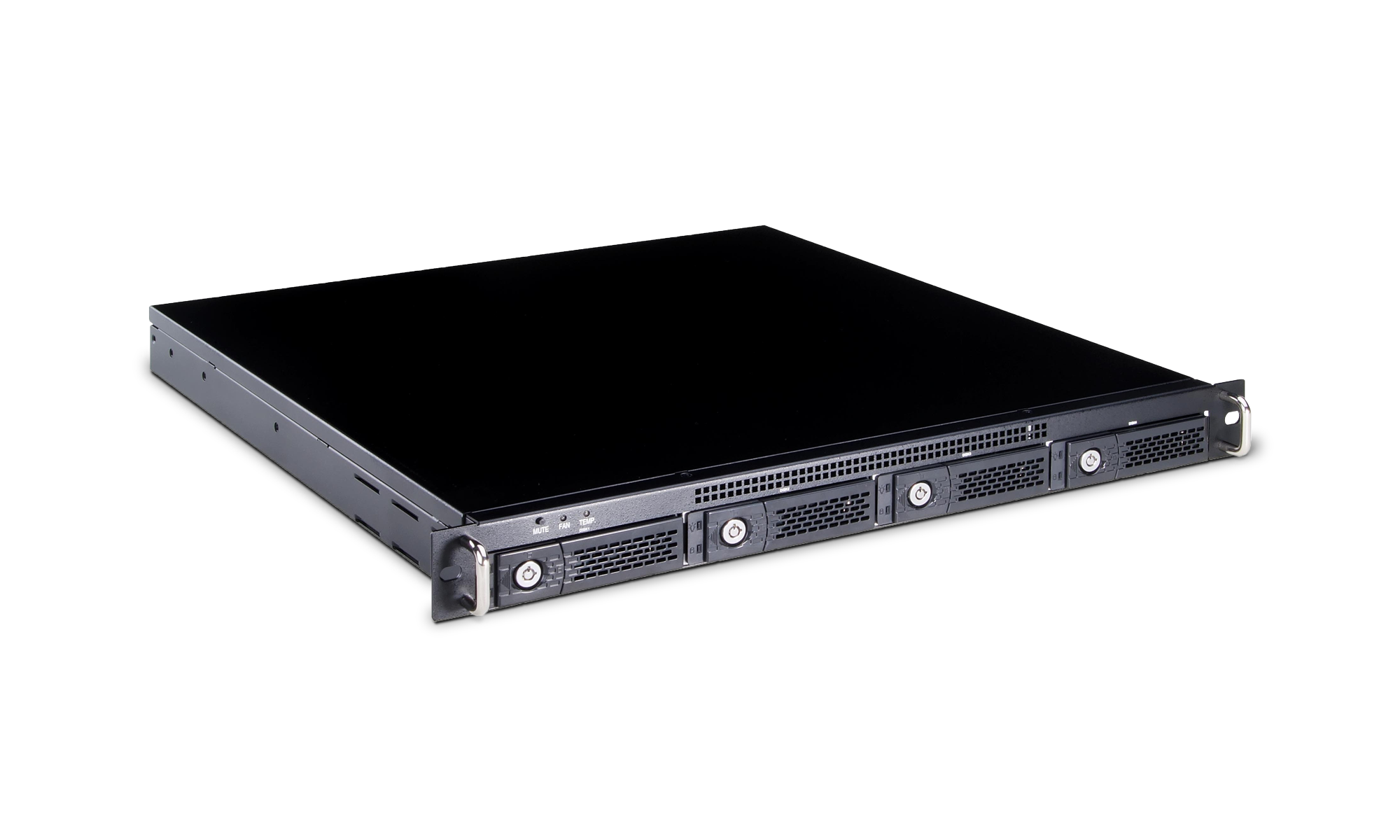

NS370TB3
Rackmount 1U 4 bay (3.5" / 2.5") Thunderbolt™ 3 RAID Storage
Overview

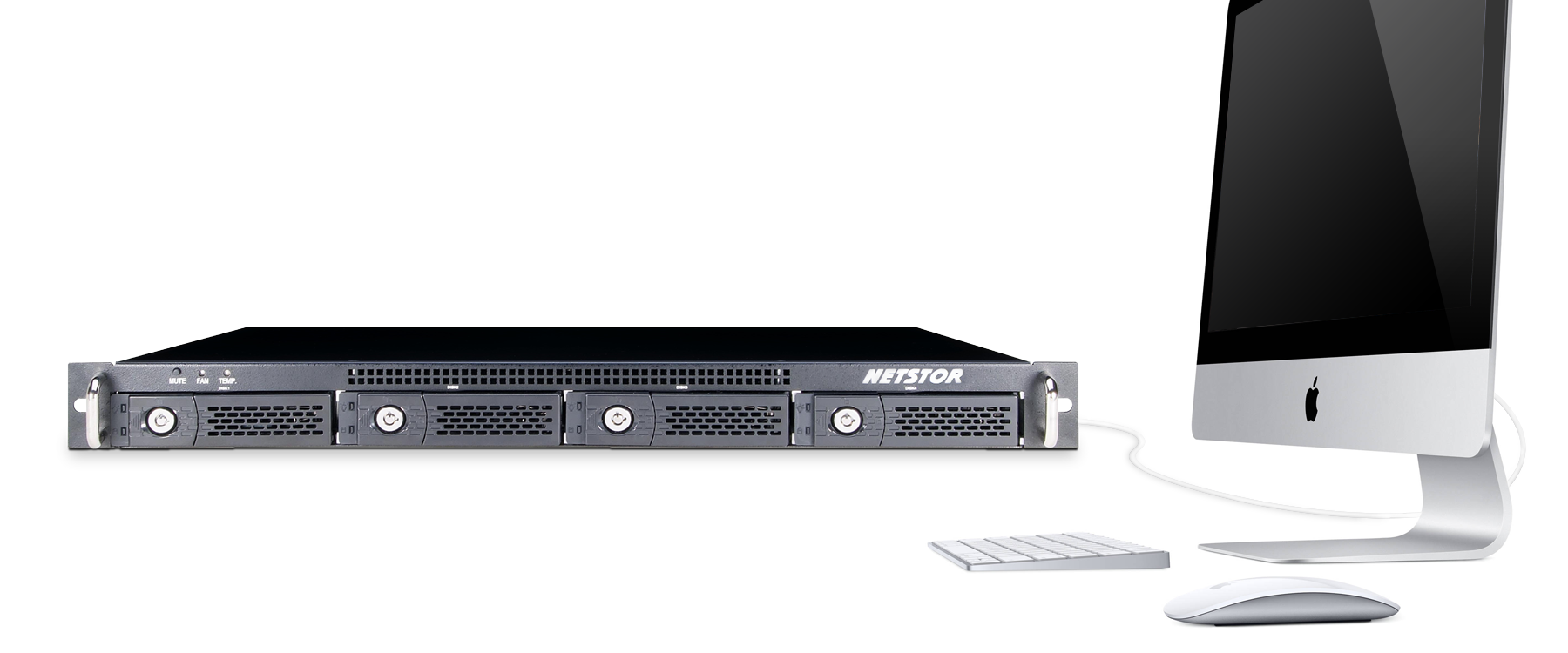

The Enterprise 1U Rackmount Thunderbolt™ 3 Storage supporting Transportable Rack Application
Through the utilizing and implementing of Netstor NS370TB3 19” rackmount storage to your system, you are rest assured your data stored on the unit are given the finest data protection with the highest data transfer speed to the thunderbolt3 host computer or workstation. Moreover, the storage unit is designed to be aligned easily with the 19” transportable rack or ordinary rack cabinet since the setup of the system is effortless and straightforward via the easy connection of Thunderbolt™ 3 between host and enclosure.
Premium Solution with Event Notification and HDD Failure Indication
It's simple for the MIS staff and end-user to set up the NS370TB3 with system. Through Netstor unit’s web GUI program, not only the hardware RAID can be set up conveniently, but the event notification by e-mail can also be achieved. As a result, when a component or an HDD fails, the storage will alarm and will send an event notification by email to the end-users at once to let them know the situation right away. Furthermore, the storage has HDD failure indication with SGPIO support; as any HDD fails, the red LED indicator on the drive tray will light to allow the users to correctly find the faulty HDD for drive replacement and RAID rebuilding.
Large Storage Capacity & Performance
Designed 4-bay rackmount storage with support of up to four hard drives and delivering extraordinary, optimized 40Gbps performance and achievement, the Netstor unit features Thunderbolt™ 3 interface capable of providing data transfer rates up to 2750 MB/s, 2x times the Thunderbolt 2, for all kinds of data storage and file archiving.

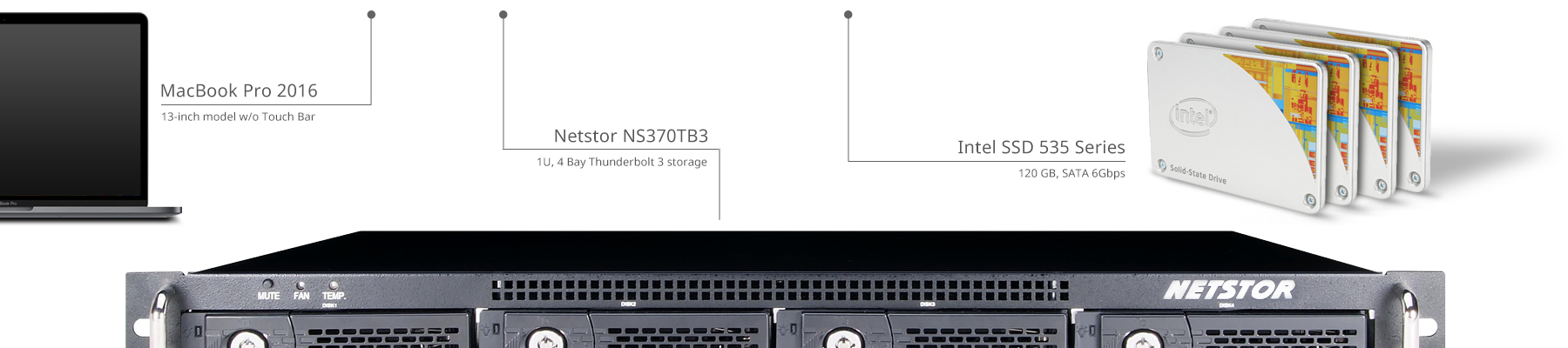

AJA Test Performance - RAID 0 Mode
WRITE
1591 MB/SEC
READ
2224 MB/SEC
* Performance may vary based on system hardware & configuration.

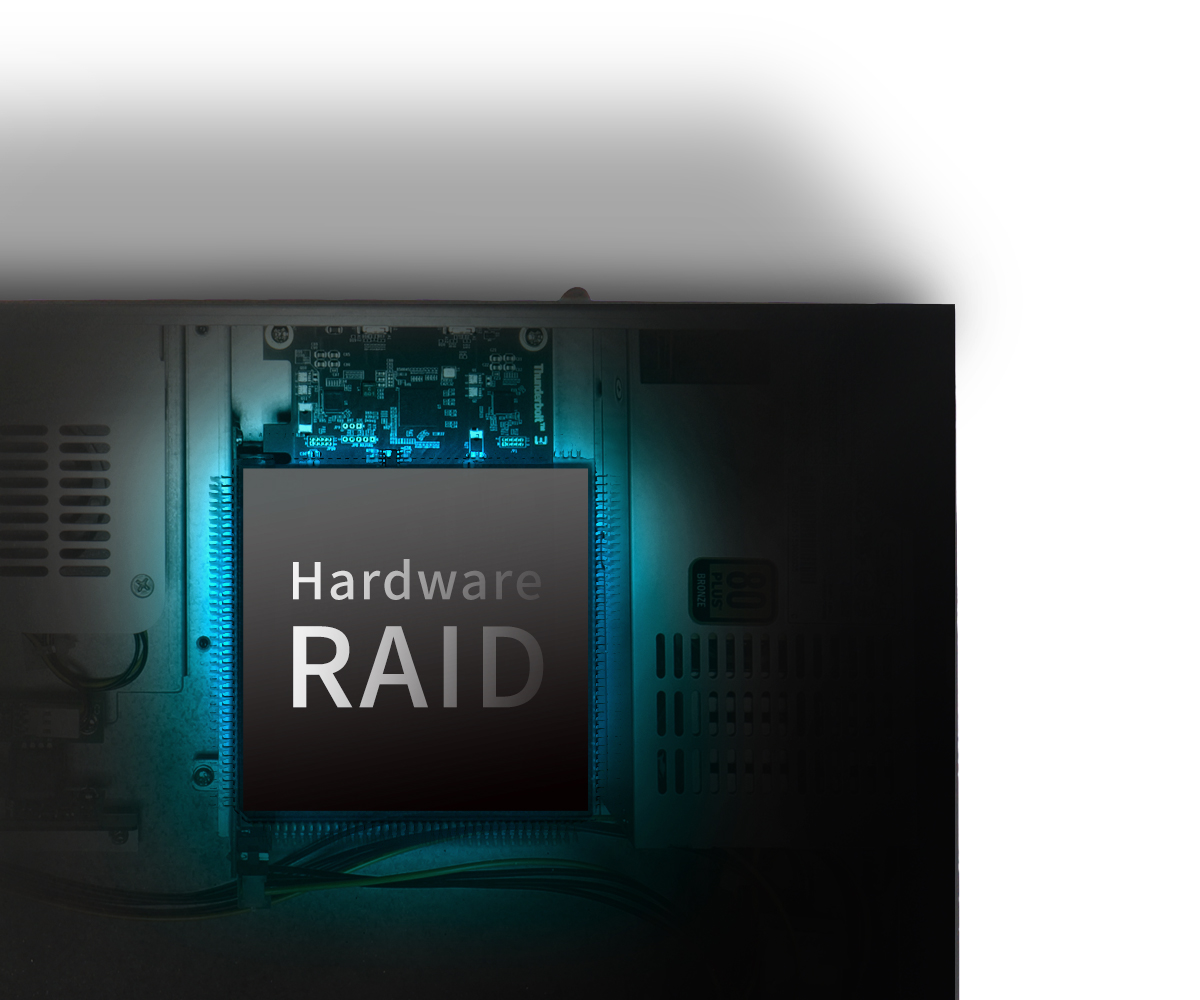

The Uncompromised Hardware RAID Protection
Built-in hardware RAID controller providing uncompromised hardware RAID levels including RAID 0, 1, 10, 3, 5, 6, 30, 50, 60 for all applications with maximum protection and utmost performance.

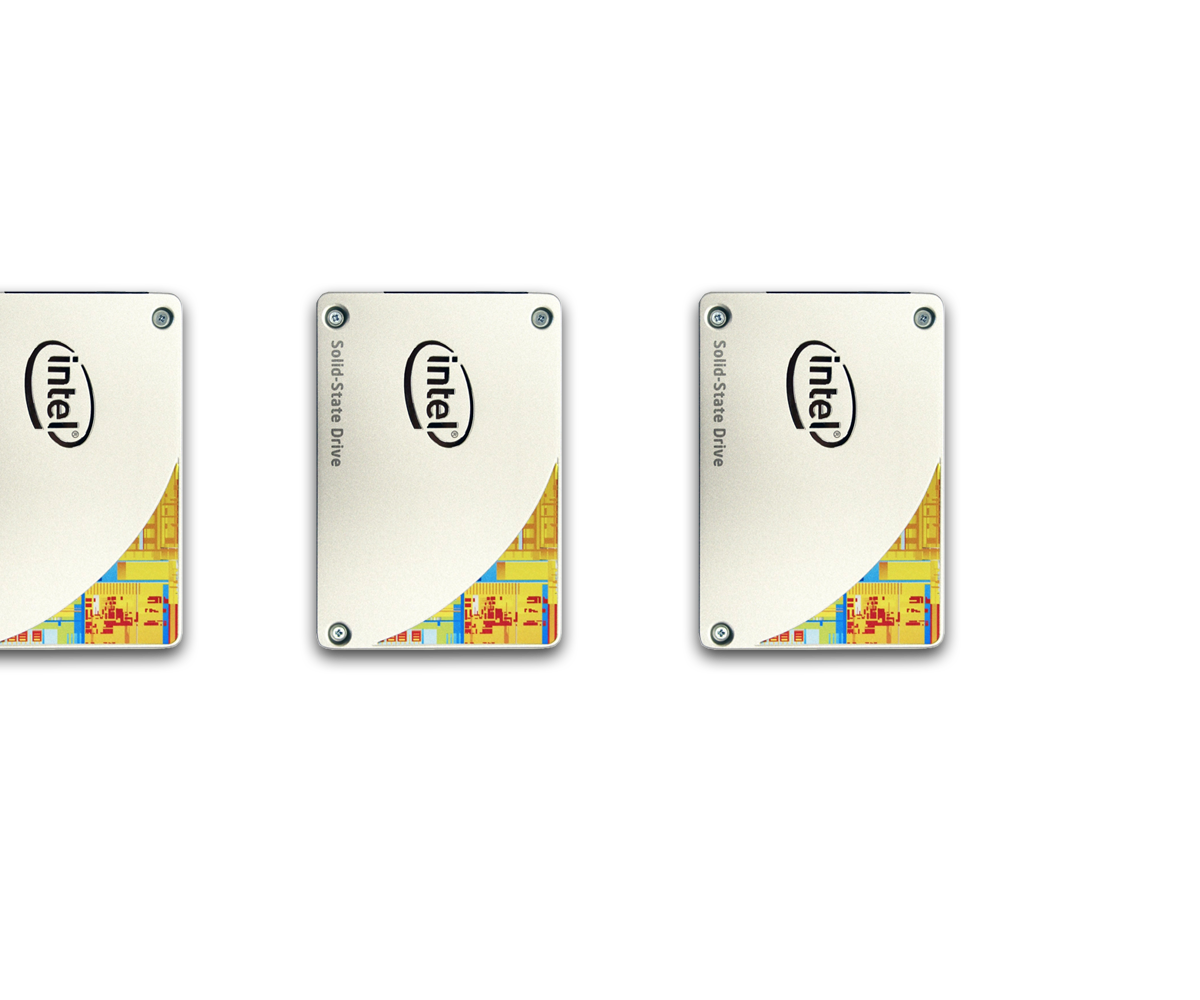

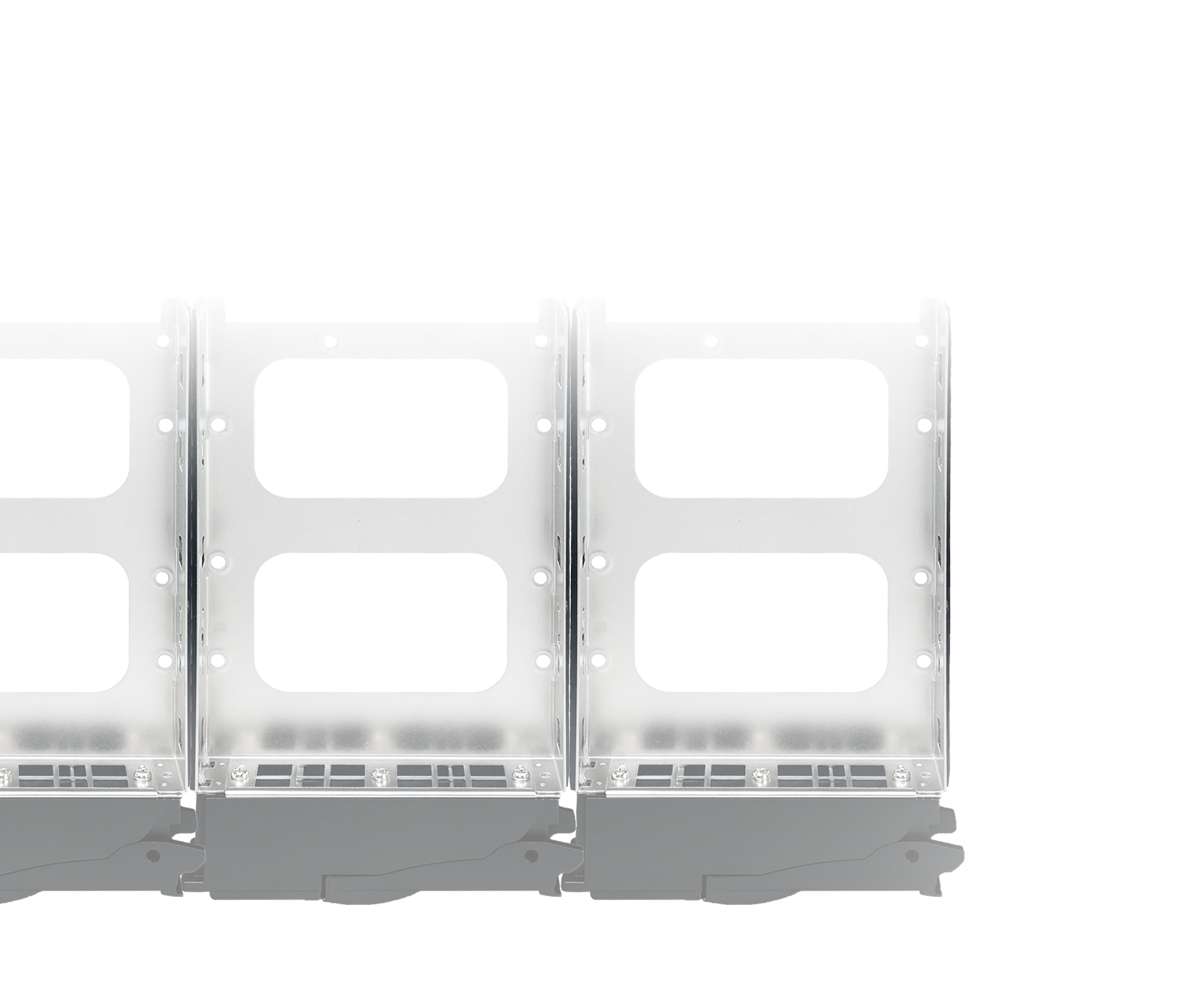

Drive Tray Supporting both 2.5”/SSD and 3.5”
The drive tray from the Thunderbolt™ 3 rackmount storage has been thoughtfully designed to work with both SSD/2.5” HDD and 3.5" hard drive for varied professionals with diverse demands on speed or immense storage capacity.

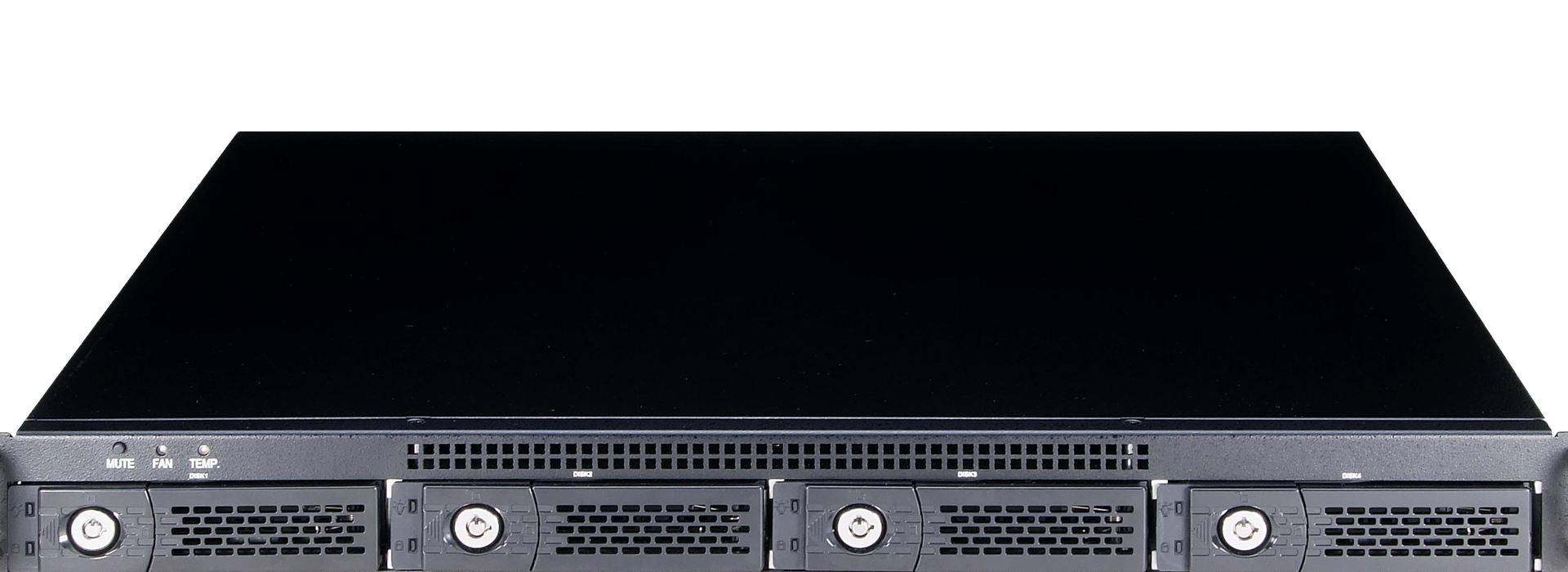

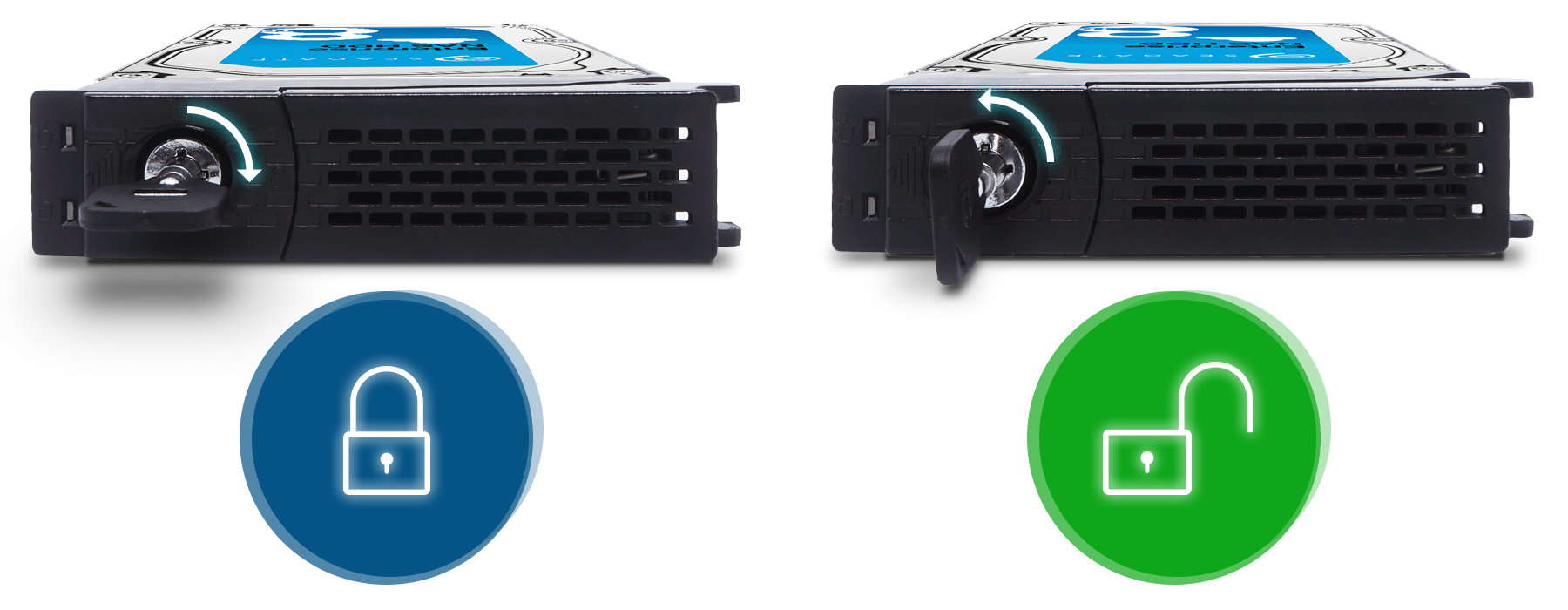

HDD Tray Keylock with Top Physical Security
By the considerately designed keylock for each HDD tray within the storage enclosure, the keylock security helps prevent the MIS staff and end-users from pulling the wrong HDD out of the chassis mistakenly.

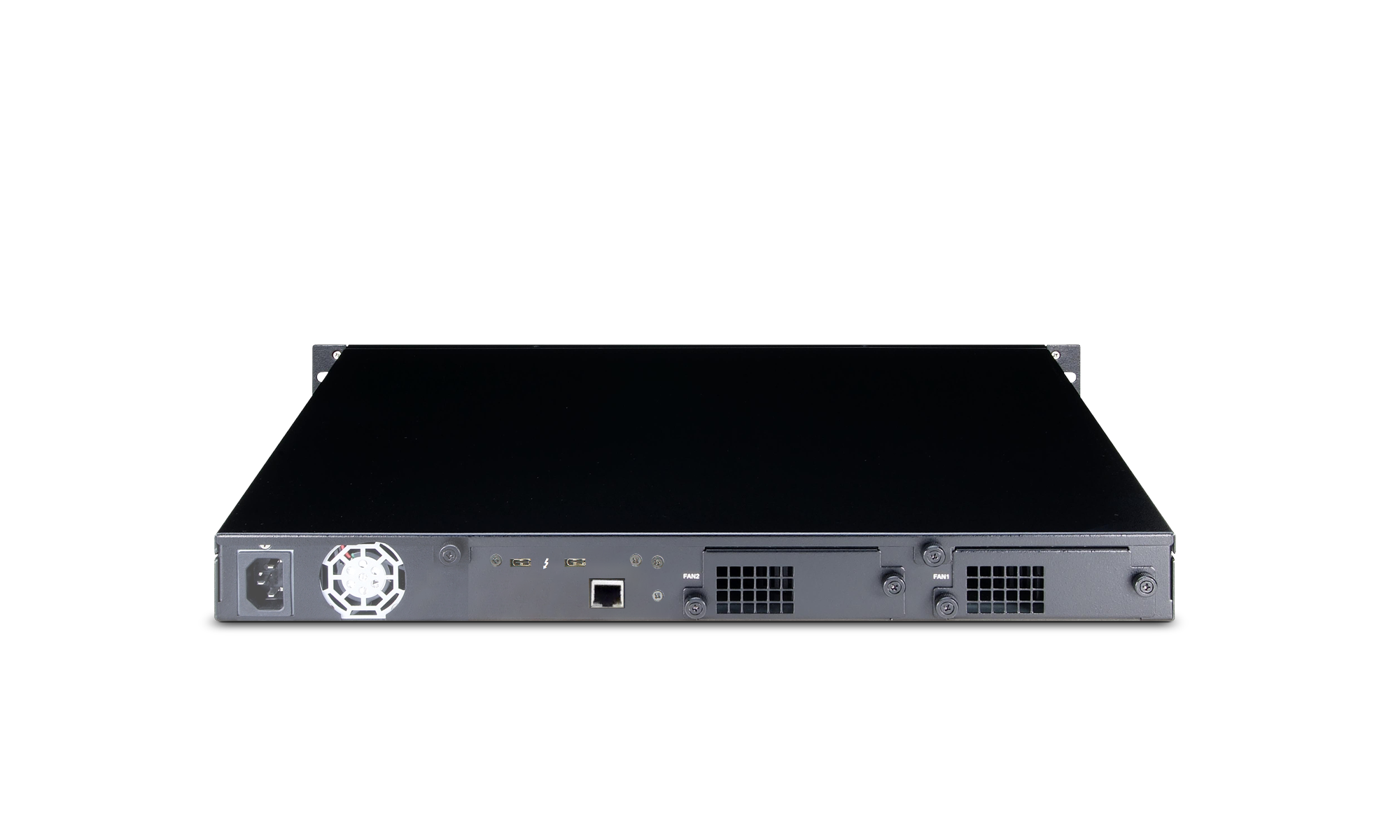

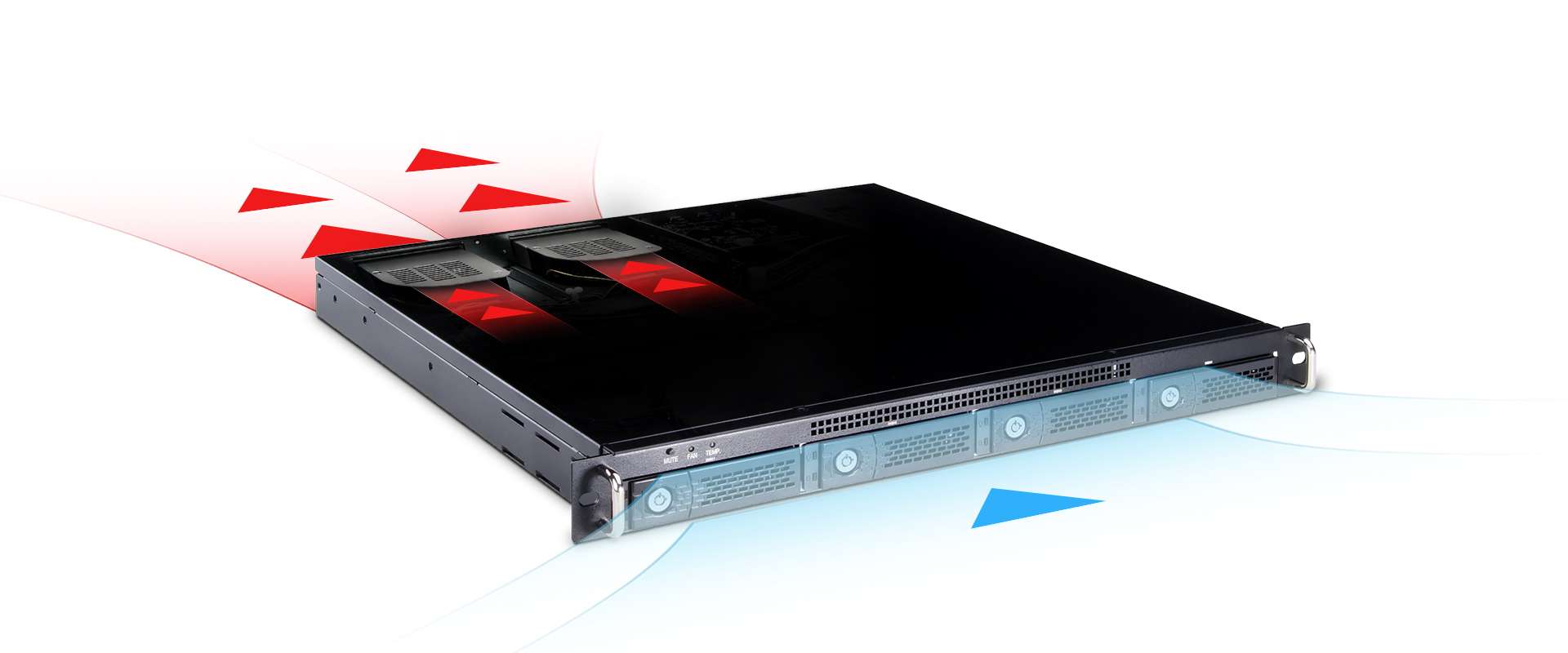

Excellent Airflow Ventilation Framework
Designed with two rear hot-swappable blower fans, the well-devised ventilation architecture does genuinely allow the warm air to be smoothly ventilated out of the enclosure in the company of ultra low dBA sound level to suit all kinds of application.

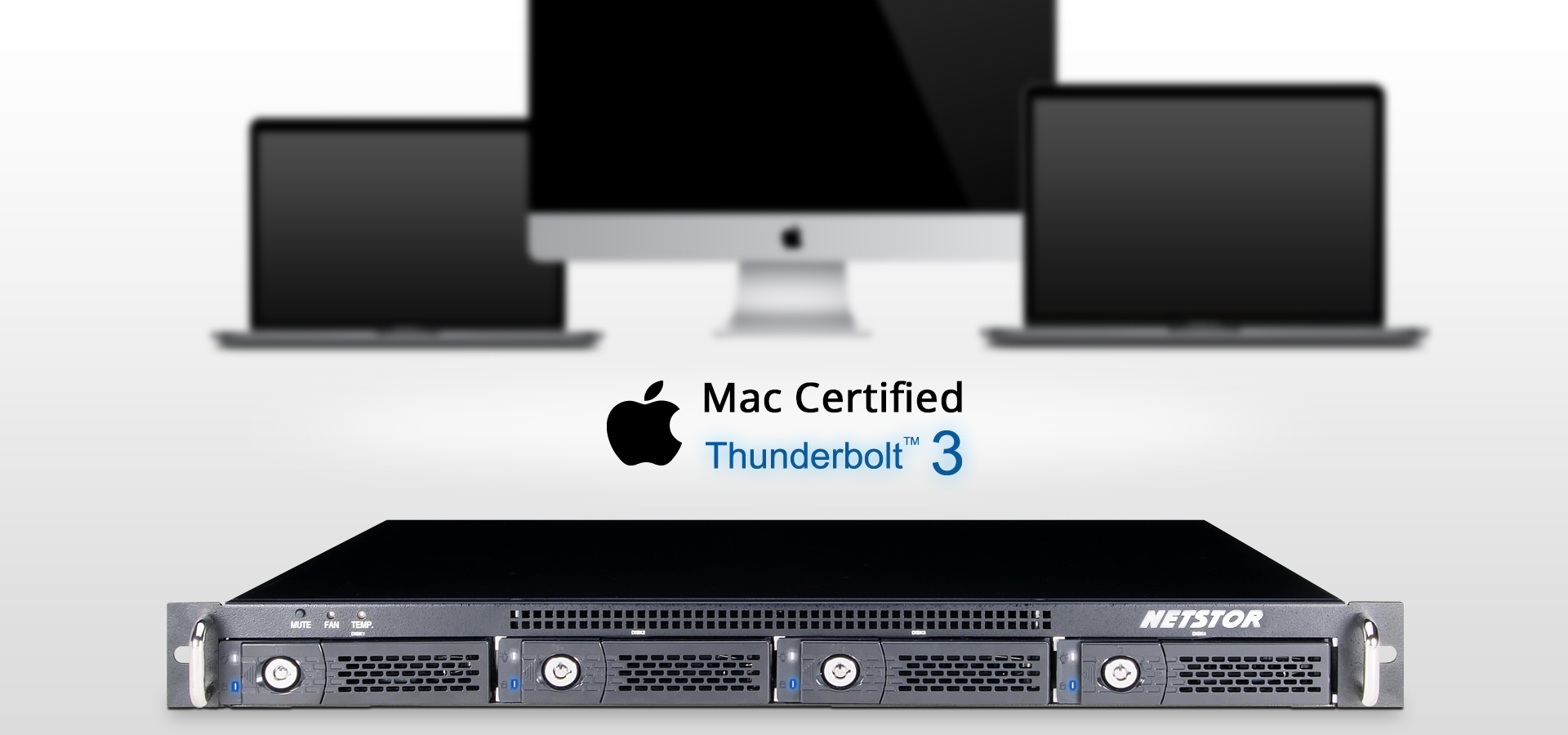

Mac certified. Works with All Series of Thunderbolt Mac
The Thunderbolt™ 3 four-bay NS370TB3 RAID storage has passed Apple's strict certification testing process and is Mac certified, which supports and works with all series of Thunderbolt 3 and Thunderbolt 2 Mac.
(Note: An additional Apple adapter will be required when working with Thunderbolt 2 Mac)
Apple and Mac mentioned in the content are trademarks or registered trademarks of Apple Inc. in the USA and/or other countries.
Specs
Specifications
| |
NS370TB3 |
| Host Interface |
- Thunderbolt™3 (USB-C Interface, compatible with Thunderbolt™4)
- 40Gbps High Bandwidth
|
| Controller & RAID Feature |
- RAID-on-Chip Processor
- 1GB on-board SDRAM with ECC protection
- Supports RAID Level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD
- Multiple RAID Selection
- Online Array Roaming
- Online RAID Level/Stripe Size Migration
- Online Capacity Expansion and RAID Level Migration Simultaneously
- Greater than 2TB Capacity per Disk Drive Support
|
| Storage |
- Supports up to 4 SAS/SATA 12Gb/6Gb 2.5" or 3.5" HDDs/SSDs (Hard Disks/SSD Sold Separately)
- Heavy-duty cold-rolled steel Housing
- Thunderbolt3 Port for Daisy-chain up to 6 Devices
- Individual Key lock of each HDD tray for physical security
|
| Monitors/Indicators |
- Web base GUI RAID Manager for Remote Management
- SMTP Support for Email Notification
- SNMP Support for Remote Manager
- FAN fail LED
- Over Temperature LED
- HDD fail LEDs
|
| Fan Cooler |
- Two 75x 75x 28mm Blower (rear)
|
| Power Supply |
- Server-grade 250W Single Power Supply
- Low-noise Design
- Universal: 100~240VAC, 50/60Hz
|
| Environmental Requirements |
- Operation Temperature: 5°C ~ 50°C
- Storage Temperature: -20°C~ 70°C
- Operation Humidity: 10% ~ 80%, non-condensing
- Storage Humidity: 5% ~ 95%
|
| Dimension |
- 460(D) x 482(W) x 44(H) mm
- 18.1(D) x 19(W) x 1.73(H) inch
|
| Operating System |
- Mac OS X 10.12.3 above, Mac (M1, M1 Pro, M1 Max, and M1 Ultra or Intel)
- Windows 10/8
|
| Scalability |
- Thunderbolt3 port for daisy-chain up to 6 devices
|
| Package Content |
Enclosure x 1
HDD Tray x 4 (Installed)
Thunderbolt3-40Gbps cable x 1 (2 meter)
Hard Disk Drive mounting screw x 16
Key for HDD tray x 2
Power Cord x 1 |
Host Interface
- Thunderbolt™3, USB-C Interface
- 40Gbps High Bandwidth
Controller & RAID Feature
- RAID-on-Chip Processor
- 1GB on-board SDRAM with ECC protection
- Supports RAID Level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD
- Multiple RAID Selection
- Online Array Roaming
- Online RAID Level/Stripe Size Migration
- Online Capacity Expansion and RAID Level Migration Simultaneously
- Greater than 2TB Capacity per Disk Drive Support
Storage
- Supports up to 4 SAS/SATA 12Gb/6Gb 2.5" or 3.5" HDDs/SSDs (Hard Disks/SSD Sold Separately)
- Heavy-duty cold-rolled steel Housing
- Thunderbolt3 Port for Daisy-chain up to 6 Devices
- Individual Key lock of each HDD tray for physical security
Monitors/Indicators
- Web base GUI RAID Manager for Remote Management
- SMTP Support for Email Notification
- SNMP Support for Remote Manager
- FAN fail LED
- Over Temperature LED
- HDD fail LEDs
Fan Cooler
- Two 75x 75x 28mm Blower (rear)
Power Supply
- Server-grade 250W Single Power Supply
- Low-noise Design
- Universal: 100~240VAC, 50/60Hz
Environmental Requirements
- Operation Temperature: 5°C ~ 50°C
- Storage Temperature: -20°C~ 70°C
- Operation Humidity: 10% ~ 80%, non-condensing
- Storage Humidity: 5% ~ 95%
Dimension
- 460(D) x 482(W) x 44(H) mm
- 18.1(D) x 19(W) x 1.73(H) inch
Operating System
- Mac OS X 10.12.3 above
- Windows 10/8
Scalability
- Thunderbolt3 port for daisy-chain up to 6 devices
Package Content
Enclosure x 1
HDD Tray x 4 (Installed)
Thunderbolt3-40Gbps cable x 1 (2 meter)
Hard Disk Drive mounting screw x 16
Key for HDD tray x 2
Power Cord x 1
Accessories
| Model No. |
Description |
| NS370TB3 |
1U 4 bay Thunderbolt3 SAS/SATA RAID Subsystem, Dual Thunderbolt3 Ports for Host and Daisy-chain, with Single 250W Power Supply, One 2 meter Thunderbolt3 cable |
| ANNA920C0340 |
Black Color Short Tray |
| ATSRFR28TW |
28" FRICTION SLIDE RAILS |
Model No. - NS370TB3
1U 4 bay Thunderbolt3 SAS/SATA RAID Subsystem, Dual Thunderbolt3 Ports for Host and Daisy-chain, with Single 250W Power Supply, One 2 meter Thunderbolt3 cable
Model No. - ANNA920C0340
Black Color Short Tray
Model No. - ATSRFR28TW
28" FRICTION SLIDE RAILS
