NA338TB3

Overview

The Perfect Partner for Transportable Rack Application

NA338TB3 – Blackmagic the best choice of transportable rack.

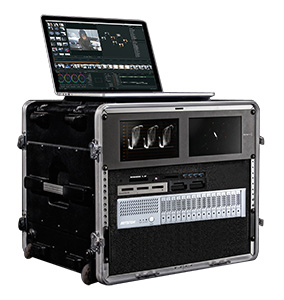

Providing video producers with features of light-weighted, easy carrying and high mobility for outdoor actions and events, the Thunderbolt™ 3 storage is designed 2U low height and 42 cm short deep to fit accurately the easy installation characteristics on transportable rack, suitable for both on-site and in-studio real-time editing and streaming 4K UHD digital content workflows.

Wide Range RAID Card Support

Based on the application and demands, users and professionals are able to choose their own desired brand, model of RAID card in the Thunderbolt™ 3 rackmount storage to work. By utilizing a sixteen-port RAID adapter card inside, the Netstor JBOD immediately turns into an enterprise RAID storage with RAID level protection including 0, 1, 10, 3, 5, 6, 30, 50, and 60.

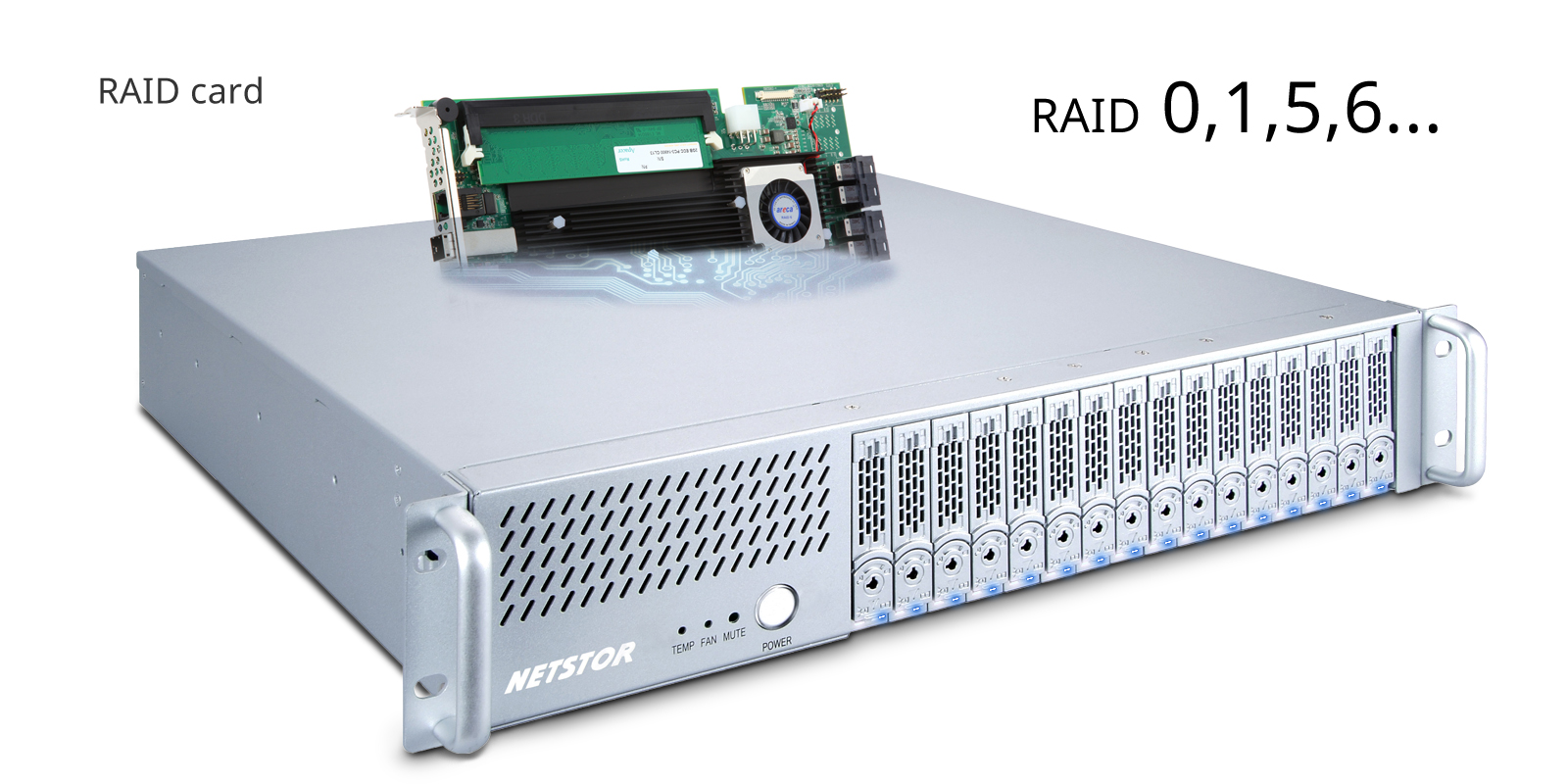

Netstor NA338TB3 support wide range RAID card.

Note: RAID card sold separately

Small Form Factor yet Great Expansion Capability

Provides three PCIe 3.0 slots within the storage chassis that allow the users to make an easy expansion of varied specialty PCIe cards to the Thunderbolt 3 Mac. Except the necessary RAID adapter card to be added, the professionals can still choose to attach two more pro cards such as video capture, video transcoding, audio accelerator, network card and so on in the 2U storage to add extra performance to Thunderbolt Mac.

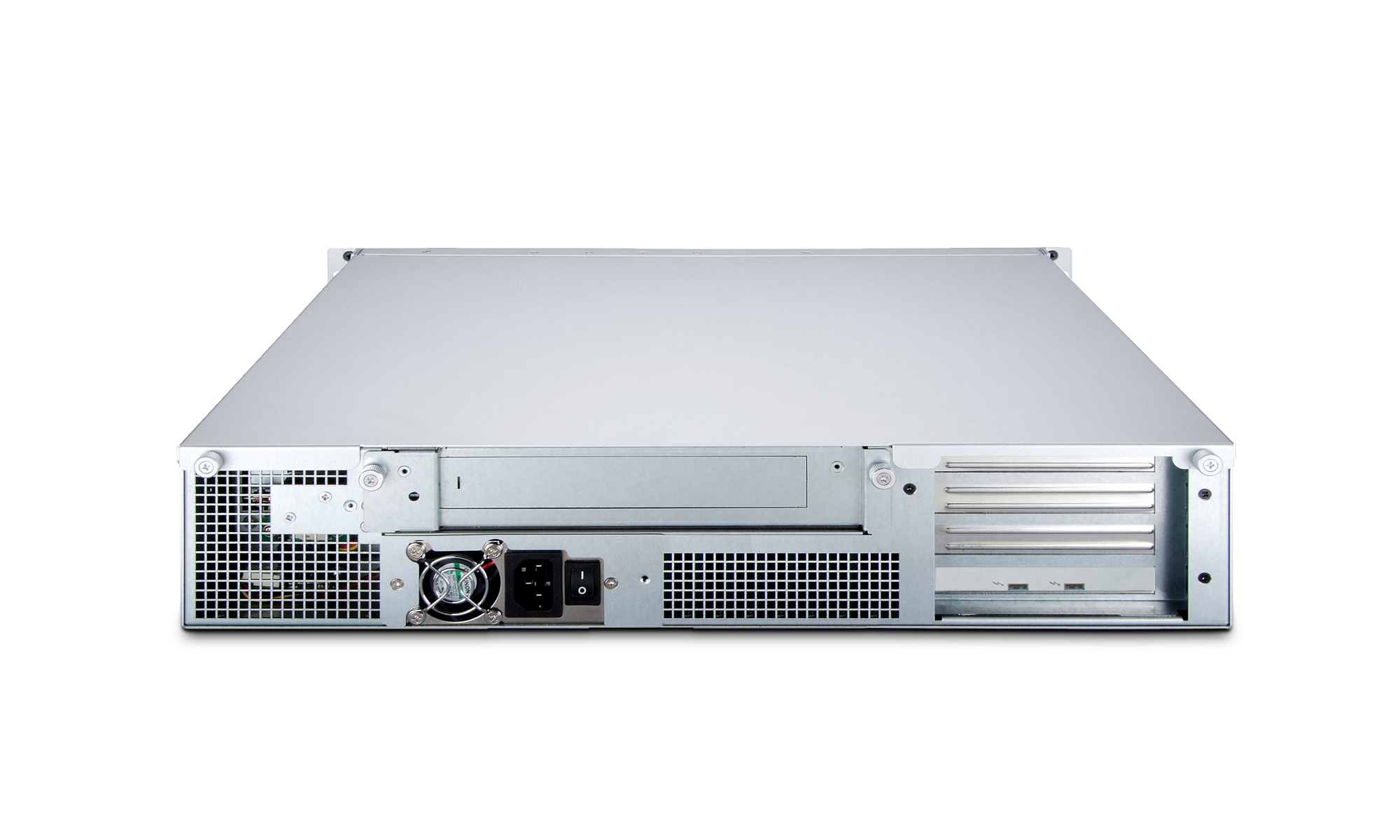

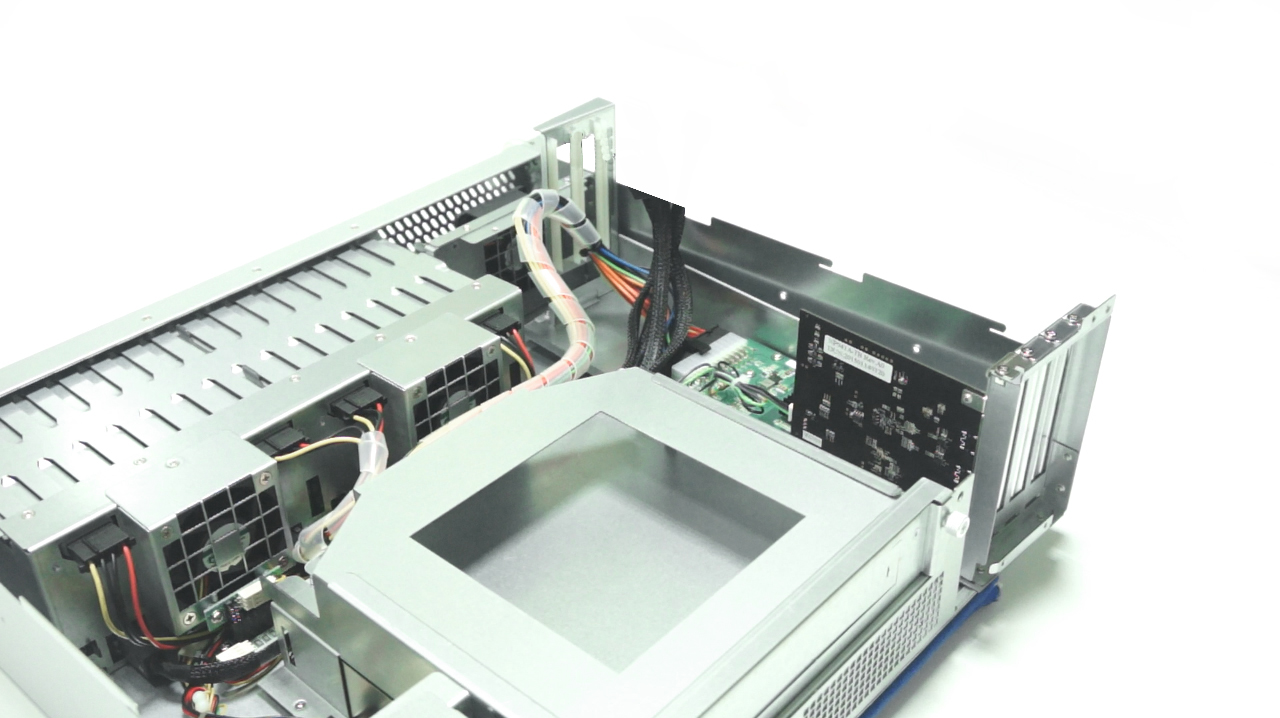

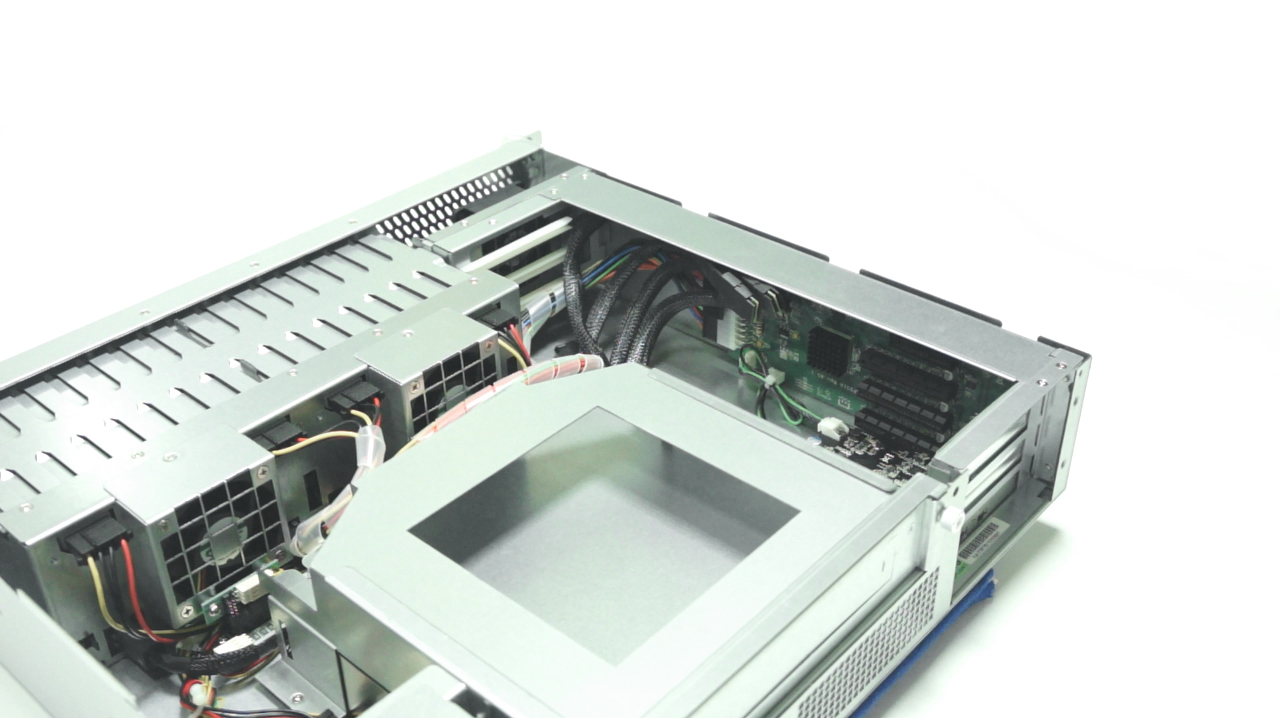

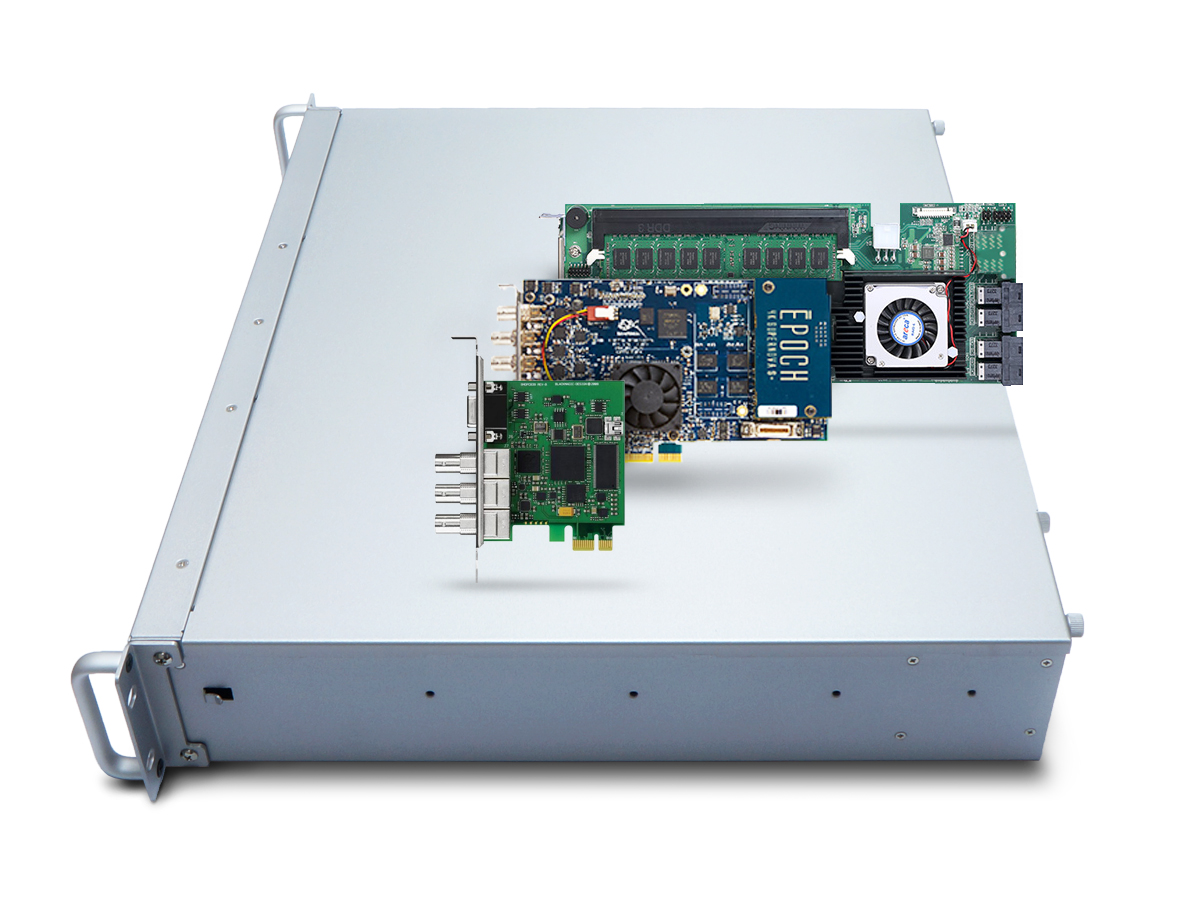

Thunderbolt3 pcie expansion for Netstor NA338TB3

Finest Airflow Ventilation Framework

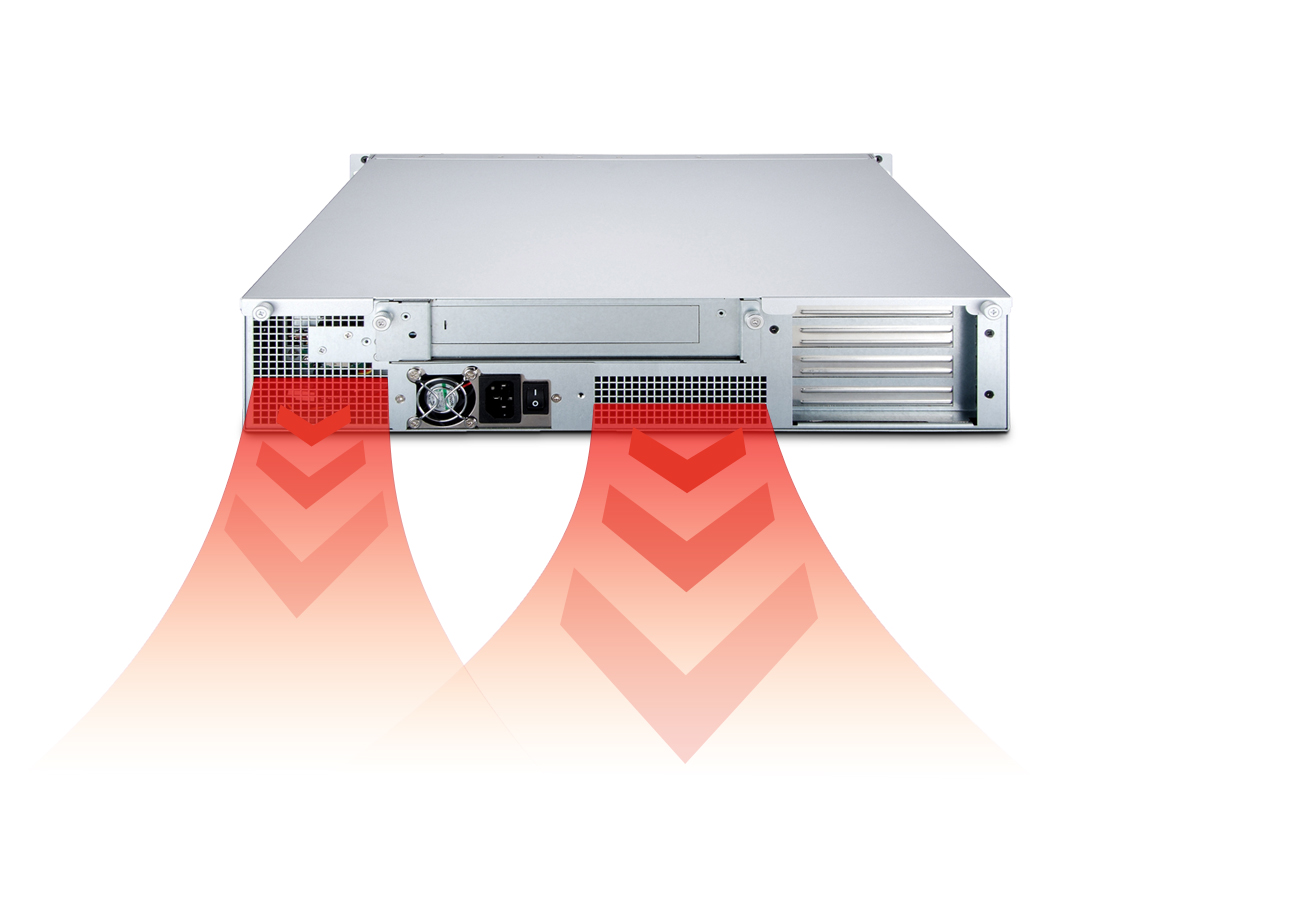

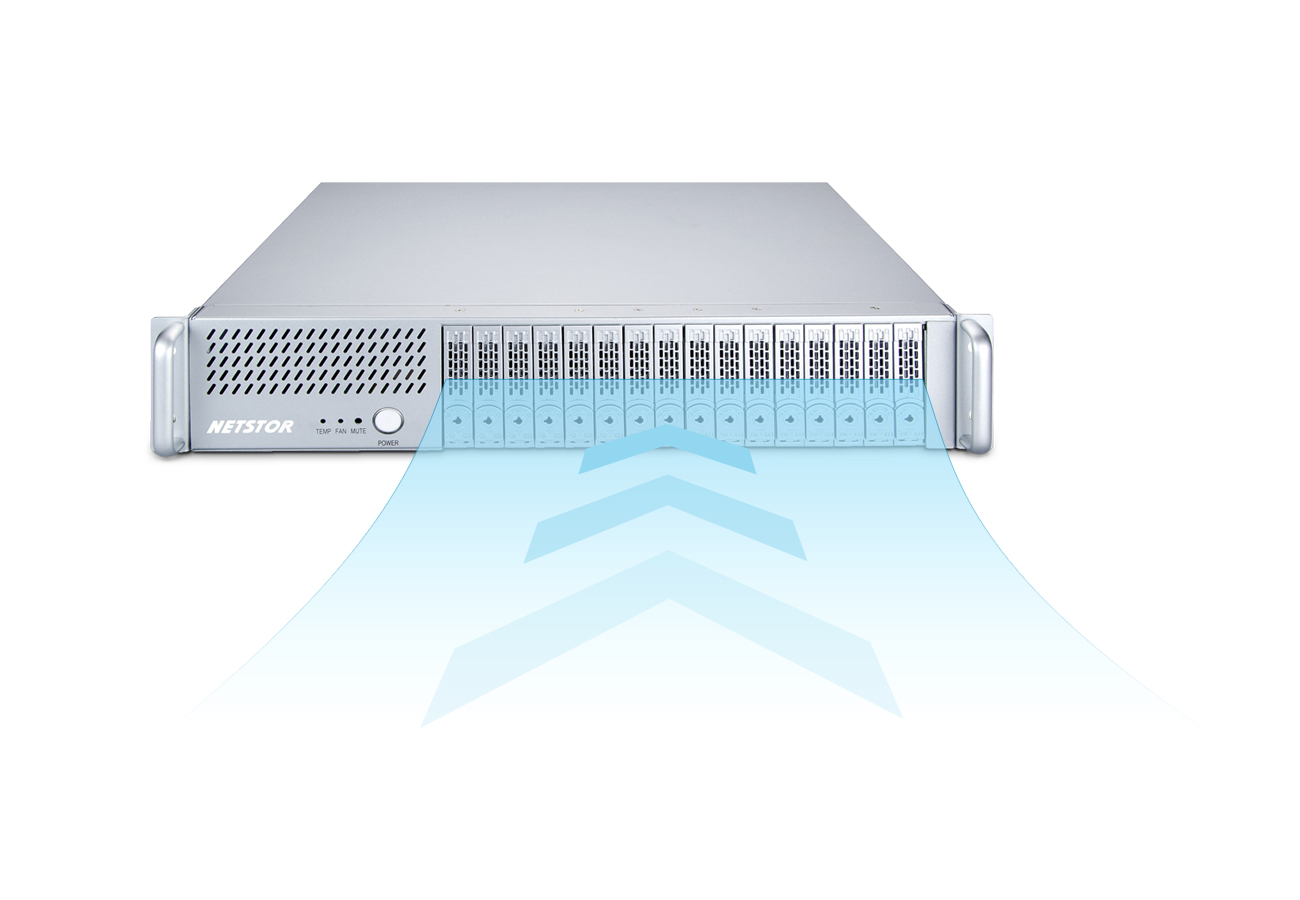

Carrying inside four 6x6 cm ultra quiet cooling fan modules that provide the best airflow ventilation ever and ensure all types of drives are kept at the moderate temperature for work.

Daisy-Chain with the Dual Thunderbolt 3 Ports

With the two Thunderbolt™ 3 (USB-C) ports, professionals can have the first port to computer while the second port to daisy-chain of up to five additional Thunderbolt peripheral devices with two 4K displays or one 5K display being positioned at the very end of chain. What's more, USB 3.1 Gen 2 (10Gbps) is supported: connecting one USB device to the second port for work is applicable.

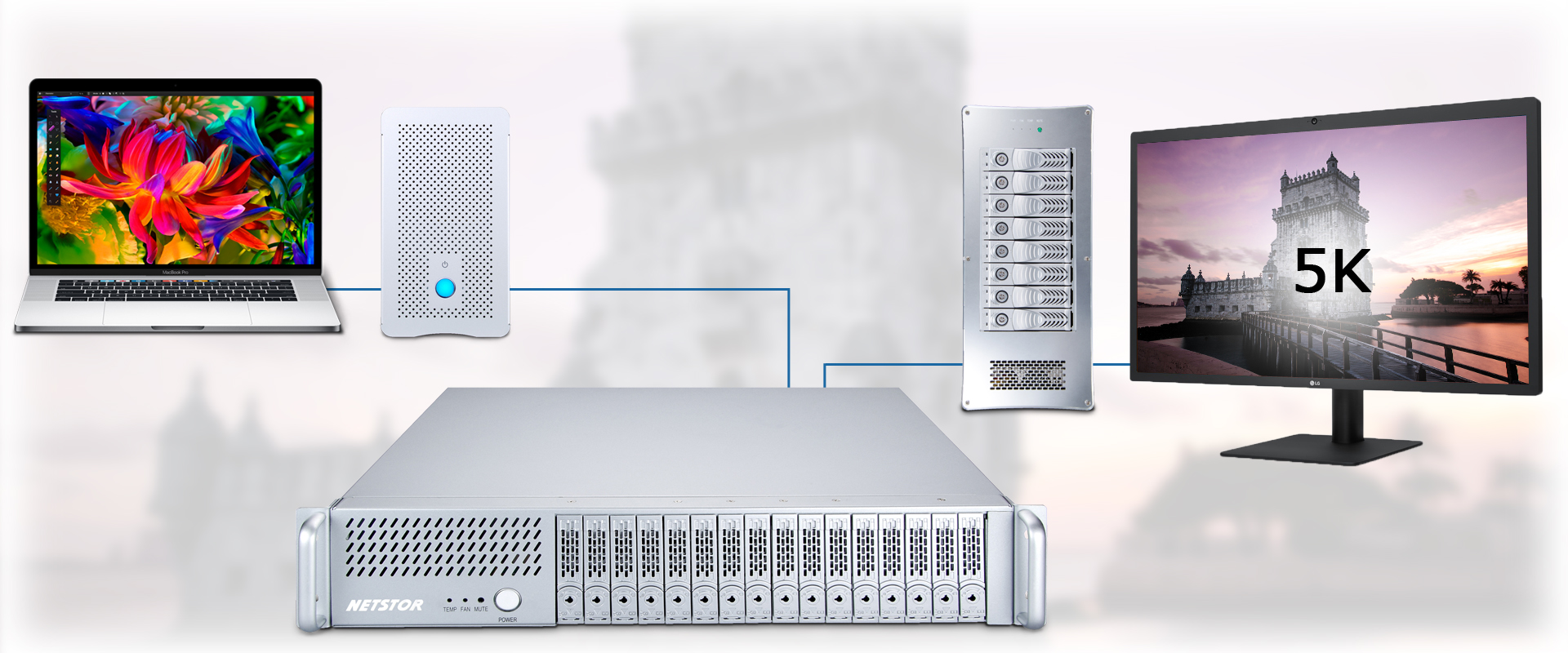

Thunderbolt 3 devices daisy-chain with NA338TB3

Mac certified, Working with All Series of Thunderbolt Mac

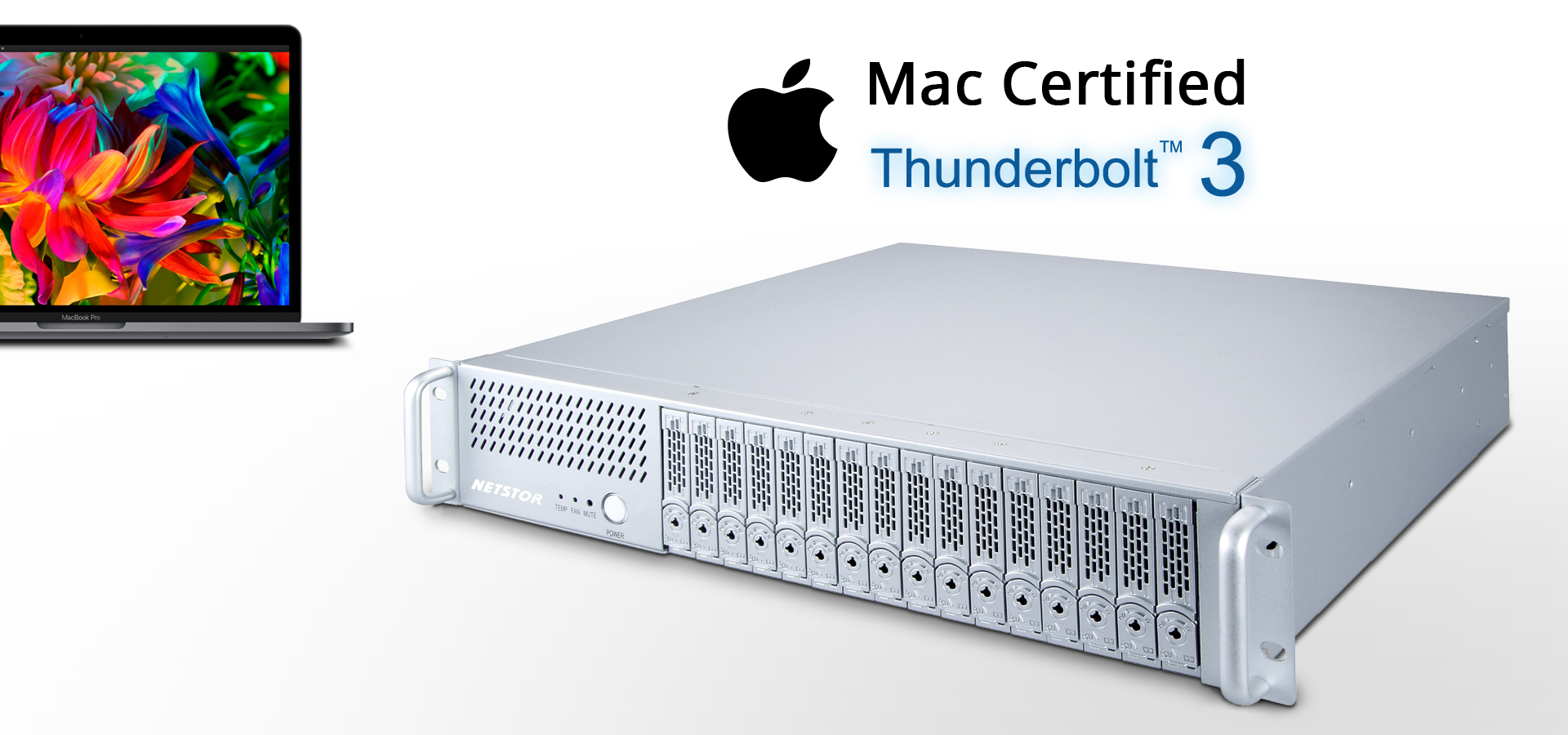

The Thunderbolt™ 3 NA338TB3 has passed Apple's strict certification test process and is Mac certified, working with all series of Thunderbolt Mac.

Netstor NA338TB3 has passed Apple certification test process and is Mac certified.

Can be Integrated with Mac mini 2018.
Let Mac mini Become the Transportable Storage Server

Even though the tiny size of the Mac mini, the advanced designed NA338TB3 with its built-in integrated plate drawer for Mac mini installation is able to provide 16-bay 2.5” great storage capacity as well as add expansion capability of up to 3 extra third-party PCIe cards to the Mac mini seamlessly and perfectly to have Mac mini turn into a powerful, world-class transportable storage server.

Apple and Mac mentioned in the content are trademarks or registered trademarks of Apple Inc. in the USA and/or other countries.

Specs

Specifications

	NA338TB3
Host Interface	Thunderbolt™3 (Dual Port USB-C for Daisy Chain, compatible with Thunderbolt™4)
Data Transfer Rate	40Gbps
HDD Interface	SAS/SATA (12G/6Gbps)
No. of Disk(s)	Up to 16 (For 2.5" & up to 15mm thick SSD / HDD, HDD sold separately)
RAID Levels	Requires a RAID card with internal 16 port and Thunderbolt driver(RAID card sold separately)
PCIe Slot Expansion	Three PCIe3.0 x8 slots
Thunderbolt Expansion	Up to Six Thunderbolt devices
LED Display for Enclosure	Fan normal - Green; Fan failure - Red Temp. normal - Green; Temp. over 50°C - Red
LED Display for each Tray	White - Power On Indicator Flash Blue - HDD Accessing Indicator Red - HDD Failure Indicator
Alarm	Mutable buzzer beeping for fan failure or over temperature occurs
Material	Heavy-duty cold-rolled steel Housing
Power Supply	460W Single PSU (High-Efficiency & Low Noise) Input: 90-230 VAC/50-60 HZ Output: +5V and +12V
Dimension	415(D) x 482(W) x 88.5(H) mm 16.3 (D) x 19 (W) x 3.49 (H) inch
Cooling	Four 60 x 60 x 25 mm
System Support	Mac (M1, M1 Pro, M1 Max, and M1 Ultra or Intel) with Thunderbolt 3/Thunderbolt 4 ports Note: Thunderbolt 2 Mac will request a Thunderbolt 3(USB-C) to Thunderbolt 2 adapter from Apple.
O.S. Support	Mac OS X 10.12.3 above
PCIe card Driver Request	Third-party PCIe card should support Mac OS with Thunderbolt aware's driver
PCIe card Size Available	Full length and full height PCIe card
Operating Temperature	5 to 40°C (41 to 104°F)
Storage Temperature	-10 to 50°C (14 to 122°F)
Relative Humidity	20 to 80% (non-condensing)
Package Content	Enclosure x 1 HDD Tray x 16 (Installed) Internal miniSAS cable x 4 Thunderbolt3-40Gbps cable x 1 (2 meter) Hard Disk Drive mounting screw x 64 Key for HDD tray x 2 Power Cord x 1

Host Interface

Thunderbolt™3 (Dual Port USB-C for Daisy Chain)

Data Transfer Rate

40Gbps

HDD Interface

SAS/SATA (12G/6Gbps)

No. of Disk(s)

Up to 16 (For 2.5" & up to 15mm thick SSD / HDD, HDD sold separately)

RAID Levels

Requires a RAID card with internal 16 port and Thunderbolt driver(RAID card sold separately)

PCIe Slot Expansion

Three PCIe3.0 x8 slots

Thunderbolt Expansion

Up to Six Thunderbolt devices

LED Display for Enclosure

Fan normal - Green; Fan failure - Red
Temp. normal - Green; Temp. over 50°C - Red

LED Display for each Tray

White - Power On Indicator
Flash Blue - HDD Accessing Indicator
Red - HDD Failure Indicator

Alarm

Mutable buzzer beeping for fan failure or over temperature occurs

Material

Heavy-duty cold-rolled steel Housing

Power Supply

460W Single PSU (High-Efficiency & Low Noise)
Input: 90-230 VAC/50-60 HZ
Output: +5V and +12V

Dimension

415(D) x 482(W) x 88.5(H) mm
16.3 (D) x 19 (W) x 3.49 (H) inch

Cooling

Four 60 x 60 x 25 mm

System Support

MacBook Pro(2016) with a Thunderbolt 3 port

Note: Thunderbolt 2 Mac will request a Thunderbolt 3(USB-C) to Thunderbolt 2 adapter from Apple.

O.S. Support

Mac OS X 10.12.3 above

PCIe card Driver Request

Third-party PCIe card should support Mac OS with Thunderbolt aware's driver

PCIe card Size Available

Full length and full height PCIe card

Operating Temperature

5 to 40°C (41 to 104°F)

Storage Temperature

-10 to 50°C (14 to 122°F)

Relative Humidity

20 to 80% (non-condensing)

Package Content

Enclosure x 1
HDD Tray x 16 (Installed)
Internal miniSAS cable x 4
Thunderbolt3-40Gbps cable x 1 (2 meter)
Hard Disk Drive mounting screw x 64
Key for HDD tray x 2
Power Cord x 1

Accessories

Model No.	Description
NA338TB3	2U 16 bay Thunderbolt™ 3 to Combo SAS/SATA JBOD and PCIe Expansion Chassis, with 460W Single PSU Power Supply, One Thunderbolt 3 active 2 meter cable
BARC1883IX16	Areca's ARC-1883ix-16, internal 16 port SAS/SATA RAID Adapter, Dual Core RAID-on-Chip 1.2GHz processor, Supports RAID level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD

Model No. - NA338TB3

2U 16 bay Thunderbolt™ 3 to Combo SAS/SATA JBOD and PCIe Expansion Chassis, with 460W Single PSU Power Supply, One Thunderbolt 3 active 2 meter cable

Model No. - BARC1883IX16

Areca's ARC-1883ix-16, internal 16 port SAS/SATA RAID Adapter, Dual Core RAID-on-Chip 1.2GHz processor, Supports RAID level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD

Compatibility

Host Support

iMac
(Mid 2017) MacBookPro
(Mid 2017) MacBookPro
(Late 2016)

RAID Card Support

	ARC-1883ix-16
	ESAS-R60F (RAID card) ESAH- H120F (HBA card)
	RocketRAID 2760A

Audio Card Support

	Pro Tools HDX (Tested by Netstor) Pro Tools HD Native
	AES16e
	HDSPe MADI HDSPe AIO HDSPe AES HDSPe RayDAT
	UAD-2 DUO (version 6.3.1+) UAD-2 QUAD

Video Card Support

	DeckLink Studio DeckLink Quad Intensity Pro DeckLink HD 3D DeckLink 4K (version 9.5+)
	Create 3D Ultra Create 3D Create HD Epoch Supernova S+
	Mojito MAX
	Kona 3G (version 10.3+) Kona LHi Kona LHe Plus
	RED ROCKET™ RED ROCKET-X

10G Networking Card

	10G-PCIE-8B-2C 10G-PCIE-8B-2S 10G-PCIE-8B-C 10G-PCIE-8B-S 10G-PCIE2-8B2-2C 10G-PCIE2-8B2-2S (version v1.3.1+)
	FFRM-NS11 FFRM-NS12 FFRM-NS14 FFRM-NQ41 FFRM-NQ42
