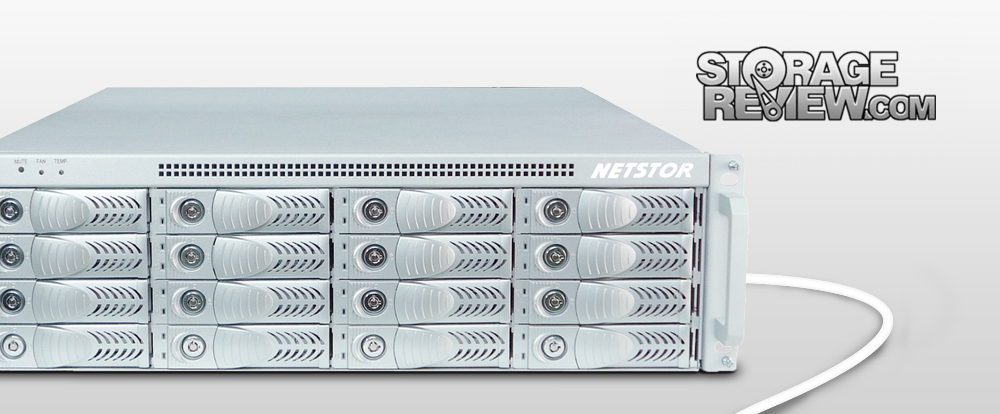

NA333TB3

3U 16 bay (3.5" / 2.5") Thunderbolt™ 3 Storage and PCIe Expansion

Home
Products
Thunderbolt™ 3 Storage and PCIe Expansion
NA333TB3

Overview

Thunderbolt 3 High-Bandwidth 40Gbps

Netstor NA333TB3 is designed to have greatly high bandwidth for fastest data storage access and operation with multiple professional PCIe cards.

Thunderbolt™ 3 40 Gbps

Thunderbolt™ 2 20 Gbps

Thunderbolt™ 1 10 Gbps

USB3.1 Gen2 10 Gbps

USB3.1 Gen1 5 Gbps

Flexible, Wide Range RAID Cards Support

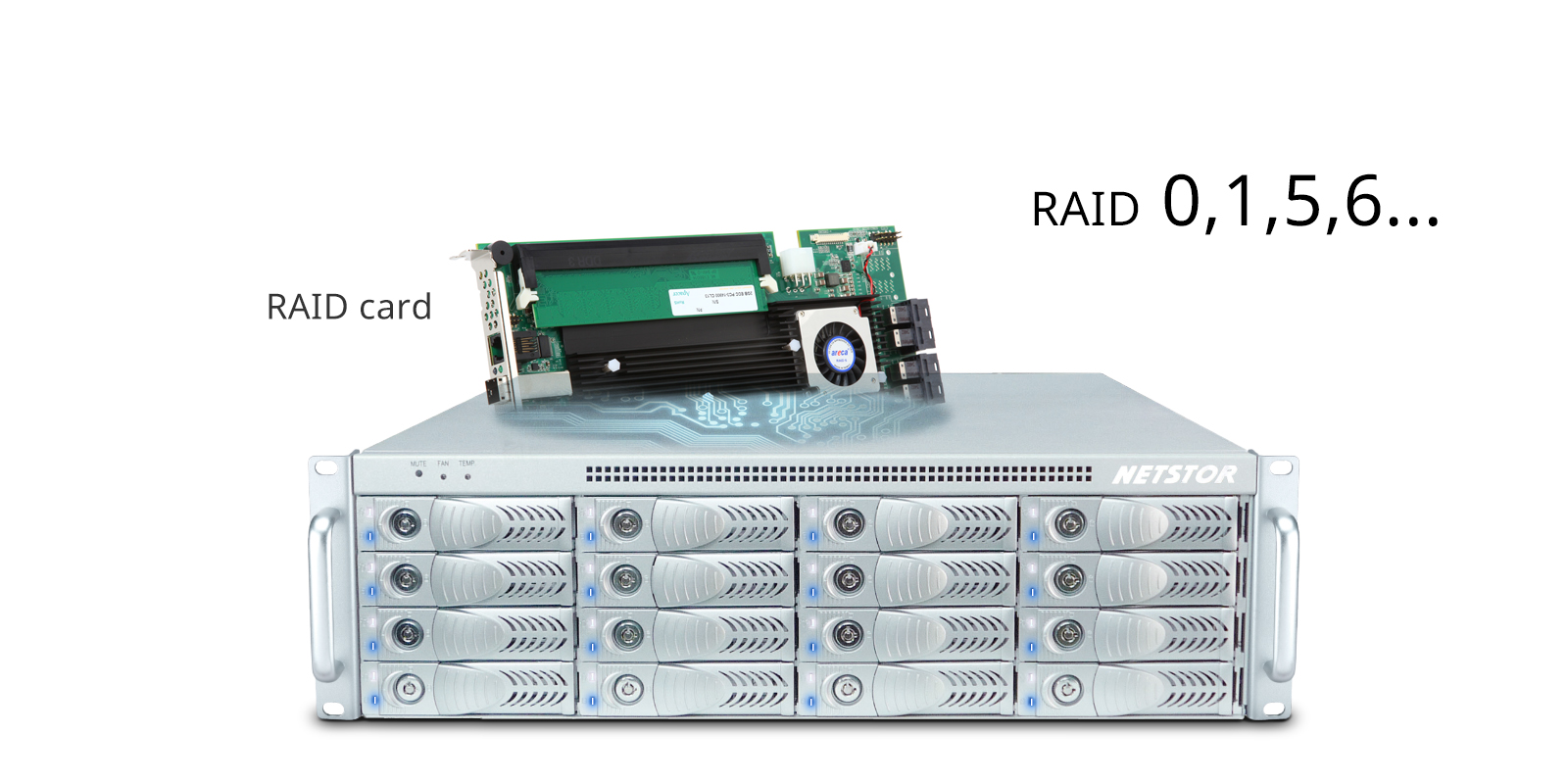

Professionals and users are able to choose to use their own desired brand, model of RAID card in the NA333TB3 storage for working according to their application and demands. By utilizing a sixteen-port RAID adapter card inside, the Netstor JBOD immediately turns into an enterprise RAID storage with RAID level protection including 0, 1, 10, 3, 5, 6, 30, 50, and 60.

NA333TB3 Thunderbolt RAID storage, Rackmount storage

Note: RAID card sold separately.

Up to 3 PCIe Cards Expansion

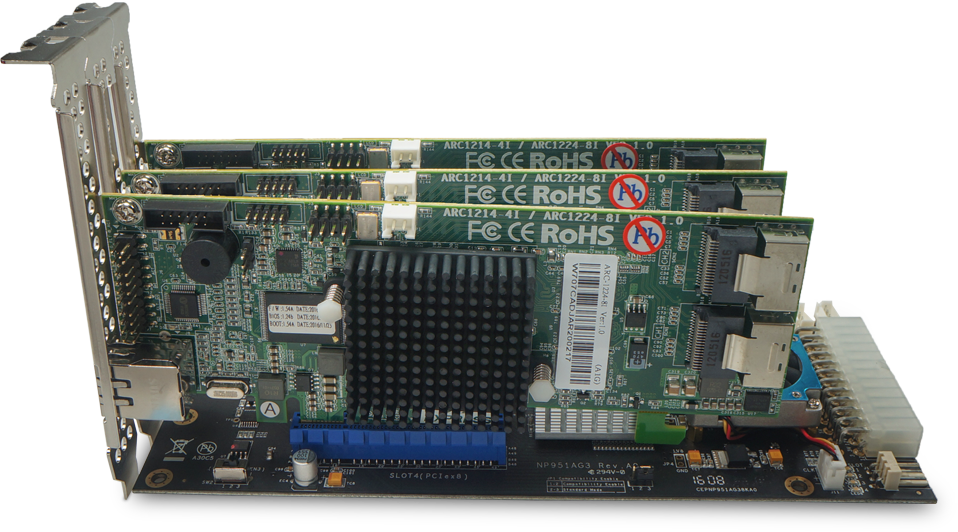

Netstor NA333TB3 provides three PCIe 3.0 slots within the storage chassis that allow the users to make an easy expansion of varied specialty PCIe cards to the Thunderbolt 3 Mac. Except the necessary RAID adapter card to be added, the professionals can still choose to attach two more pro cards such as video capture, video transcoding, audio accelerator, network card and so on in the 3U storage to add extra performance to Thunderbolt Mac.

More Capacity with Even Higher Speeds

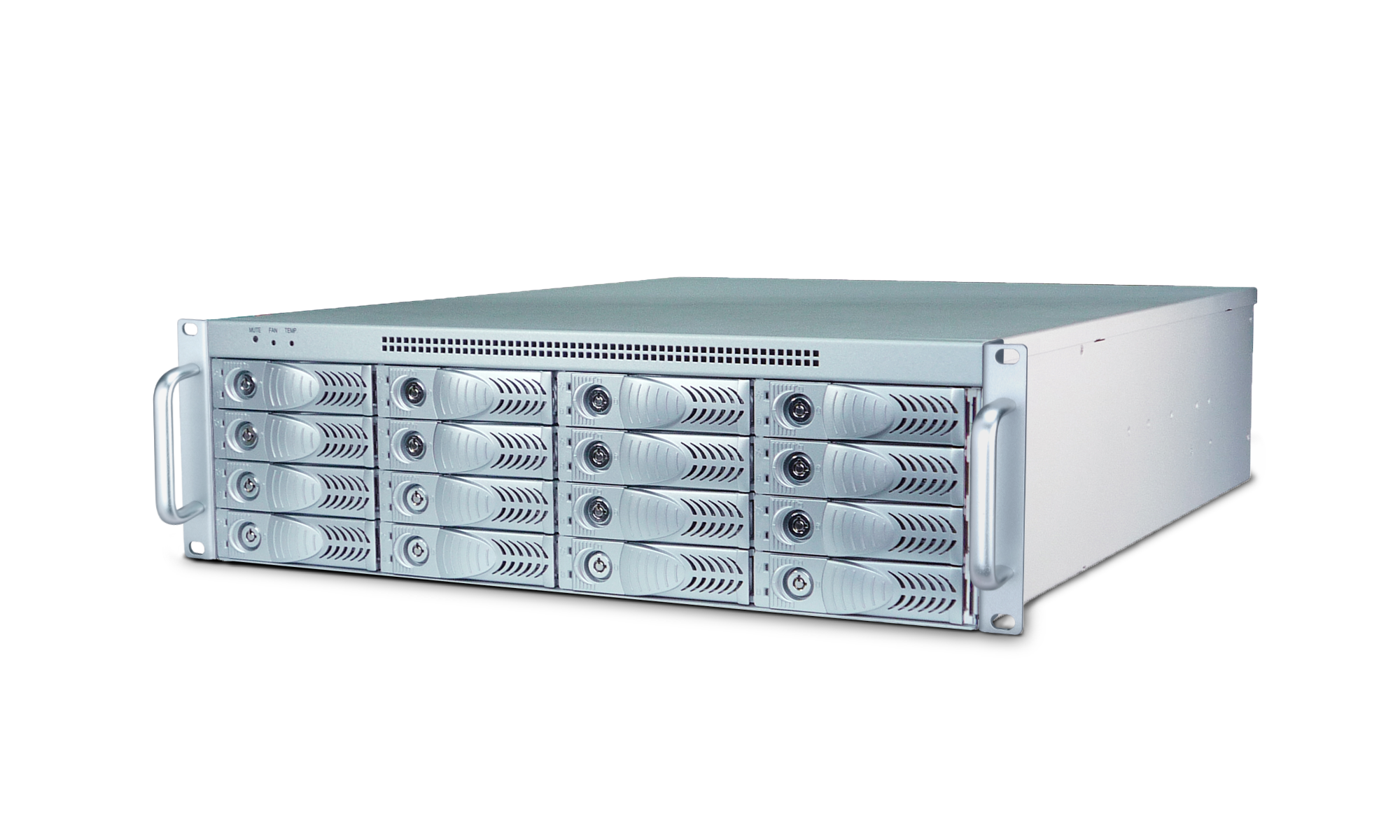

Designed 3U 16-bay storage chassis with support of sixteen hot-swappable drive trays. As each tray attached with 10TB HDD, total usable storage will come to 160 TB capacity. Additionally, through enclosure's lightning-fast Thunderbolt™ 3 interface, the ultra large archiving storage is ensured to have higher data transfer bandwidth of up to 2750 MB/s.

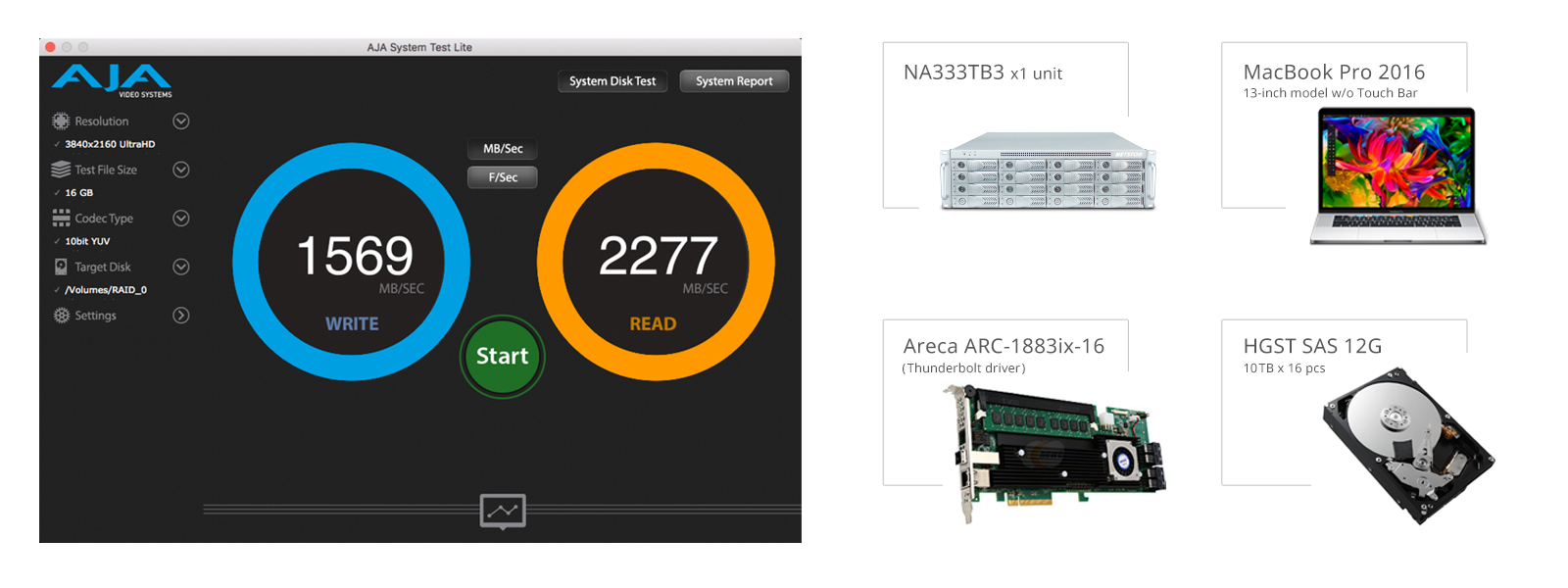

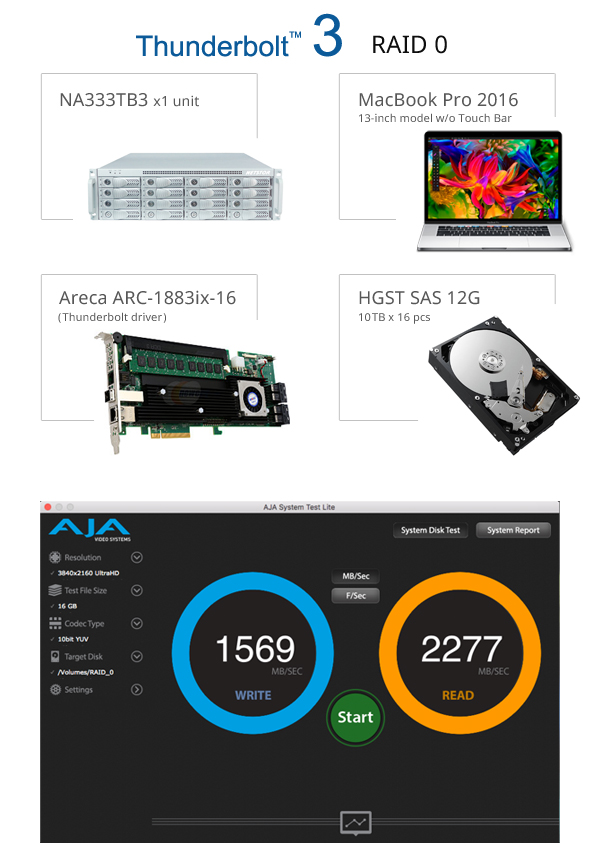

NA333TB3 – aja testing performance. Tested by NA333TB3, Macbook Pro 2016, Areca ARC 1883ix-16, and HGST 10TB.

Note: Performance may vary based on system hardware & configuration.

In addition to 3.5", Drive Tray Supports SSD/2.5"

The drive tray from the Netstor Thunderbolt 3 storage has been considerately designed to work with both SSD/2.5" HDD and 3.5" hard drive for various professionals with diverse demands on speed or immense storage capacity.

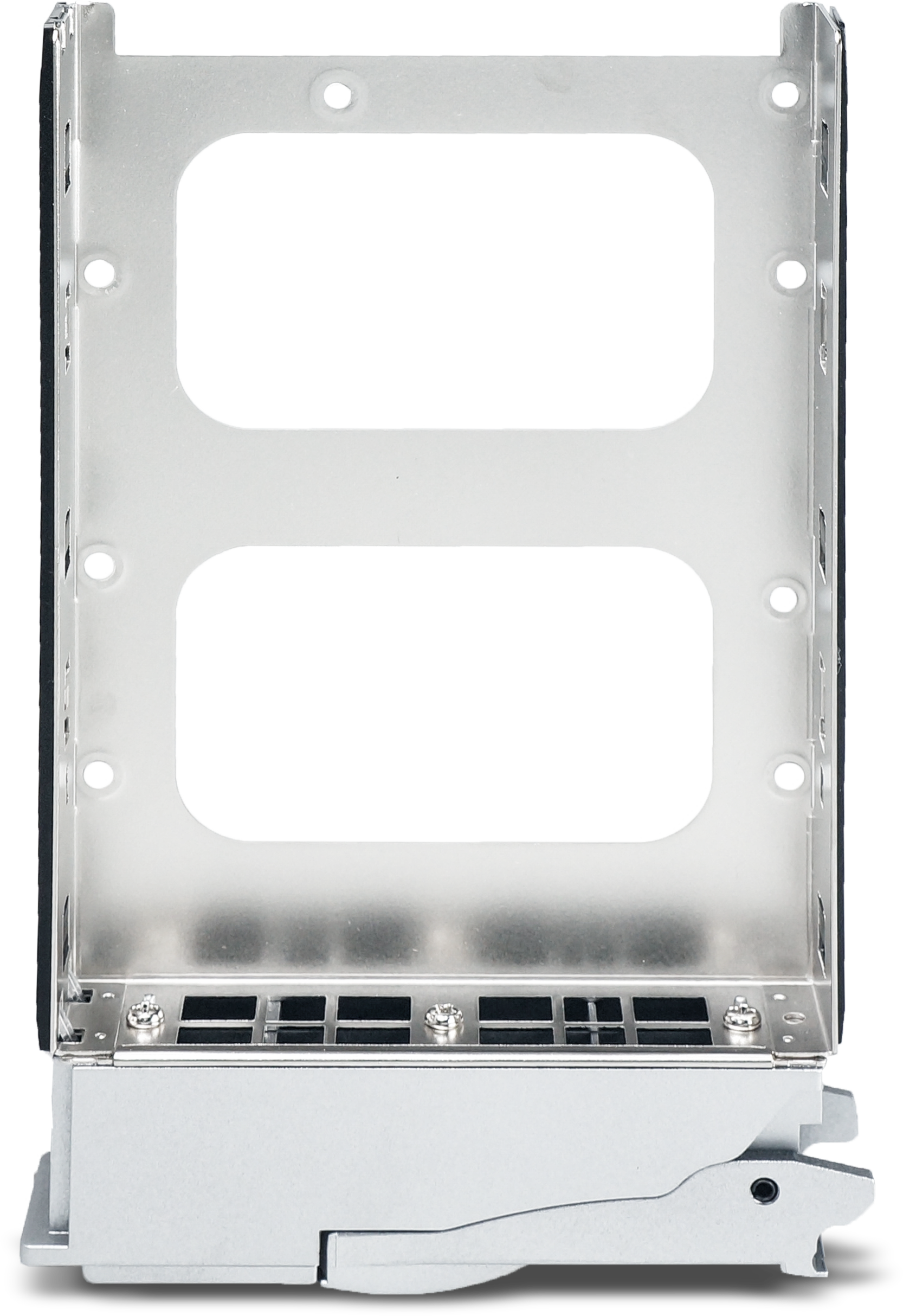

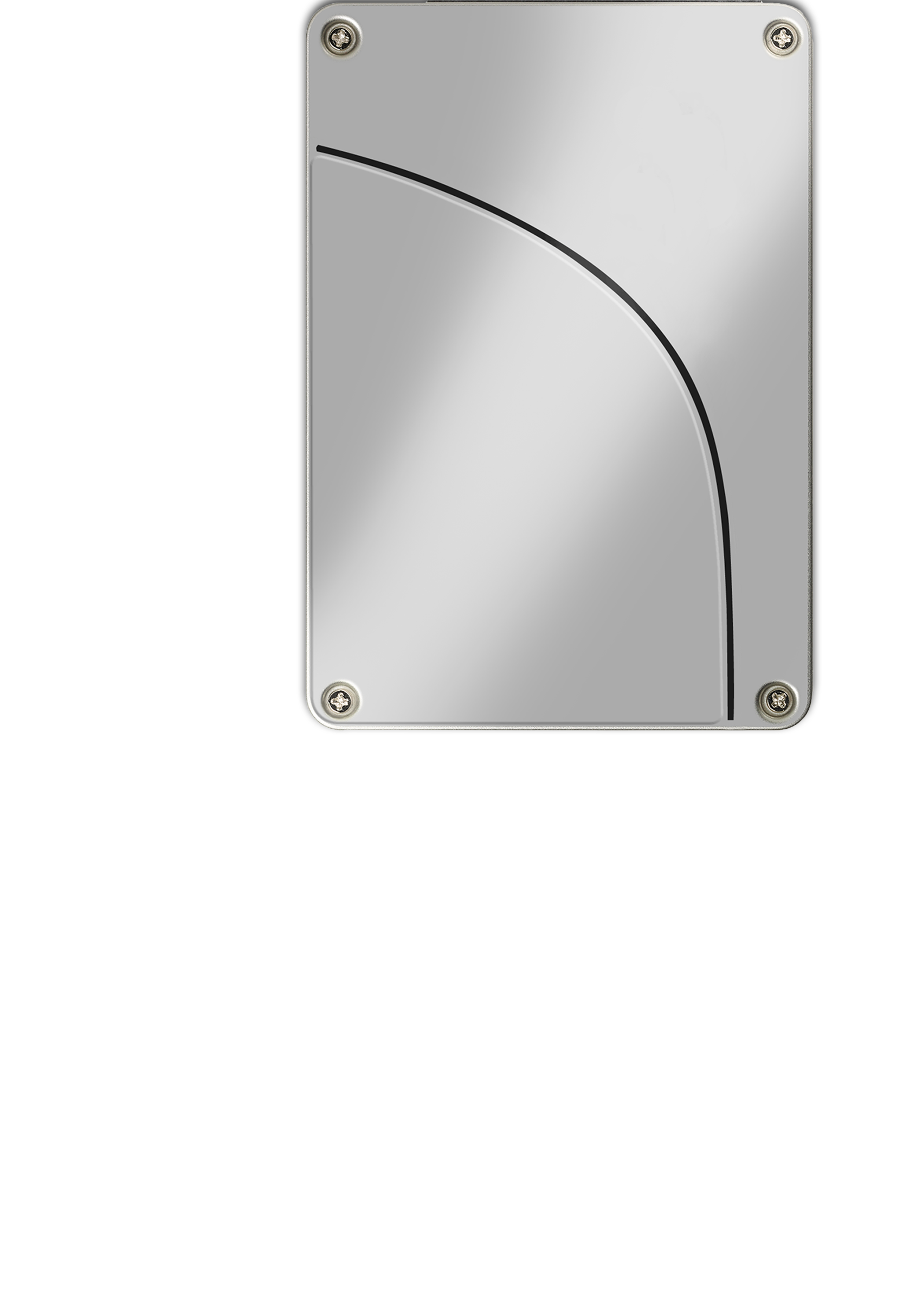

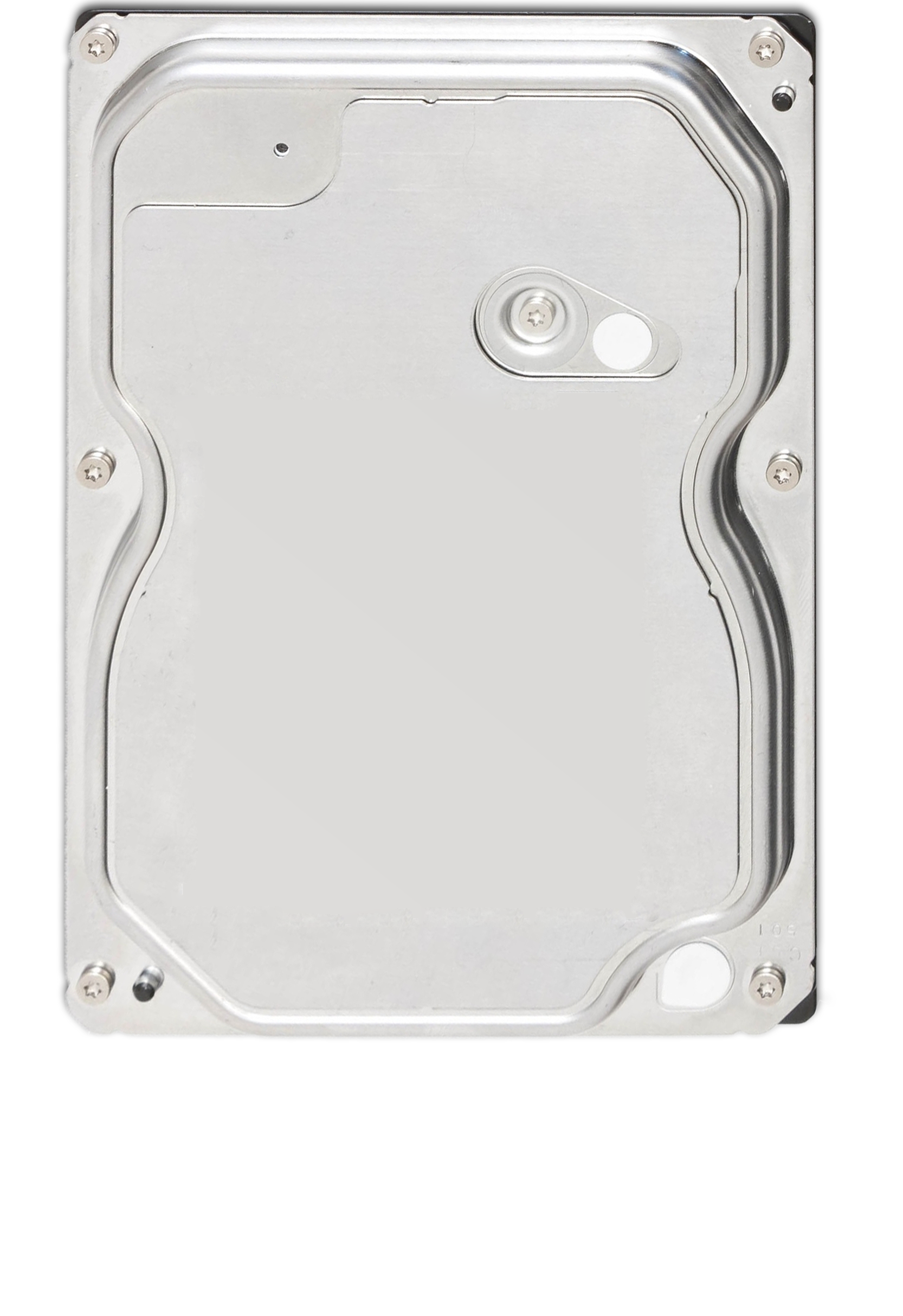

disk tray for 2.5 and 3.5 inches SSD/HDD hard drives.

24/7 Application

The 3U 16-bay NA333TB3 has the built-in server-grade 500W redundant PSU that ensures application running 24/7 with no system downtime to continuously working with the Thunderbolt 3 Mac server.

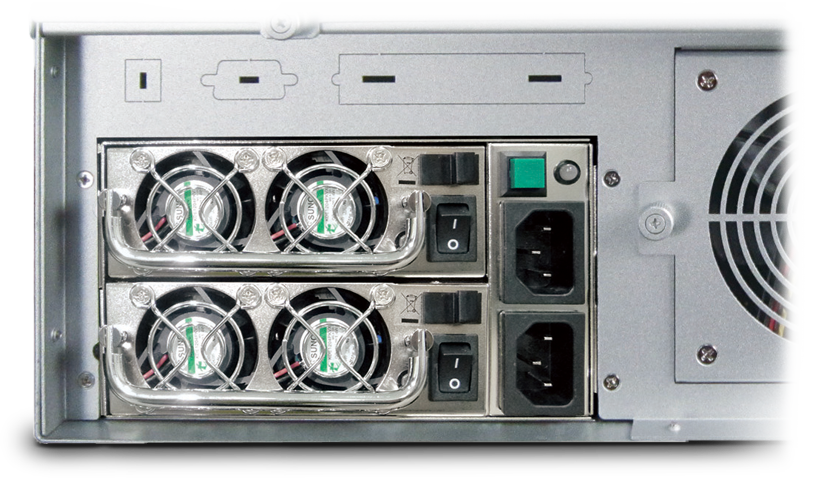

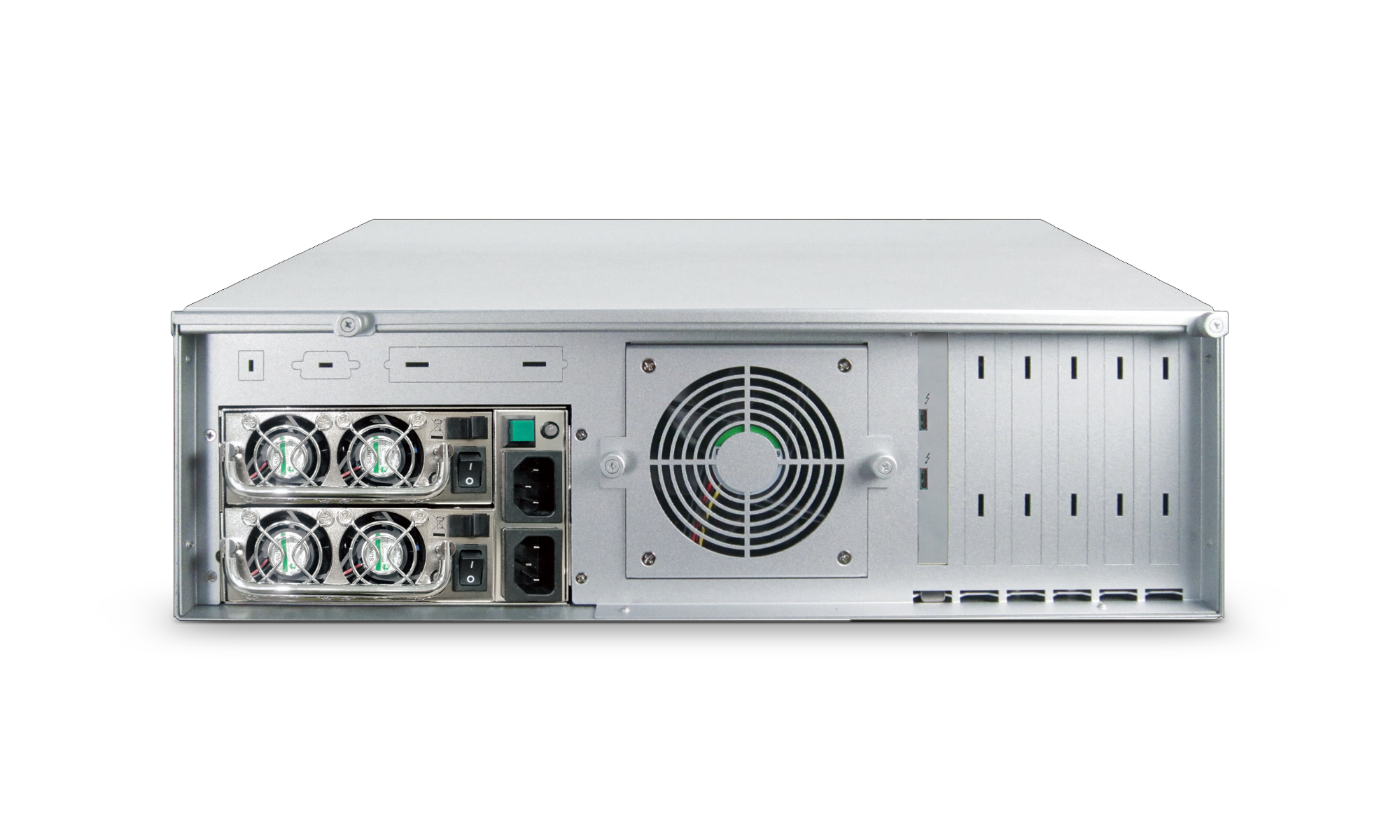

NA333TB3 has the built-in 500W redundant PSU, so that it can work 24/7 with no system downtime.

Two Thunderbolt 3 Ports supporting Daisy-Chain

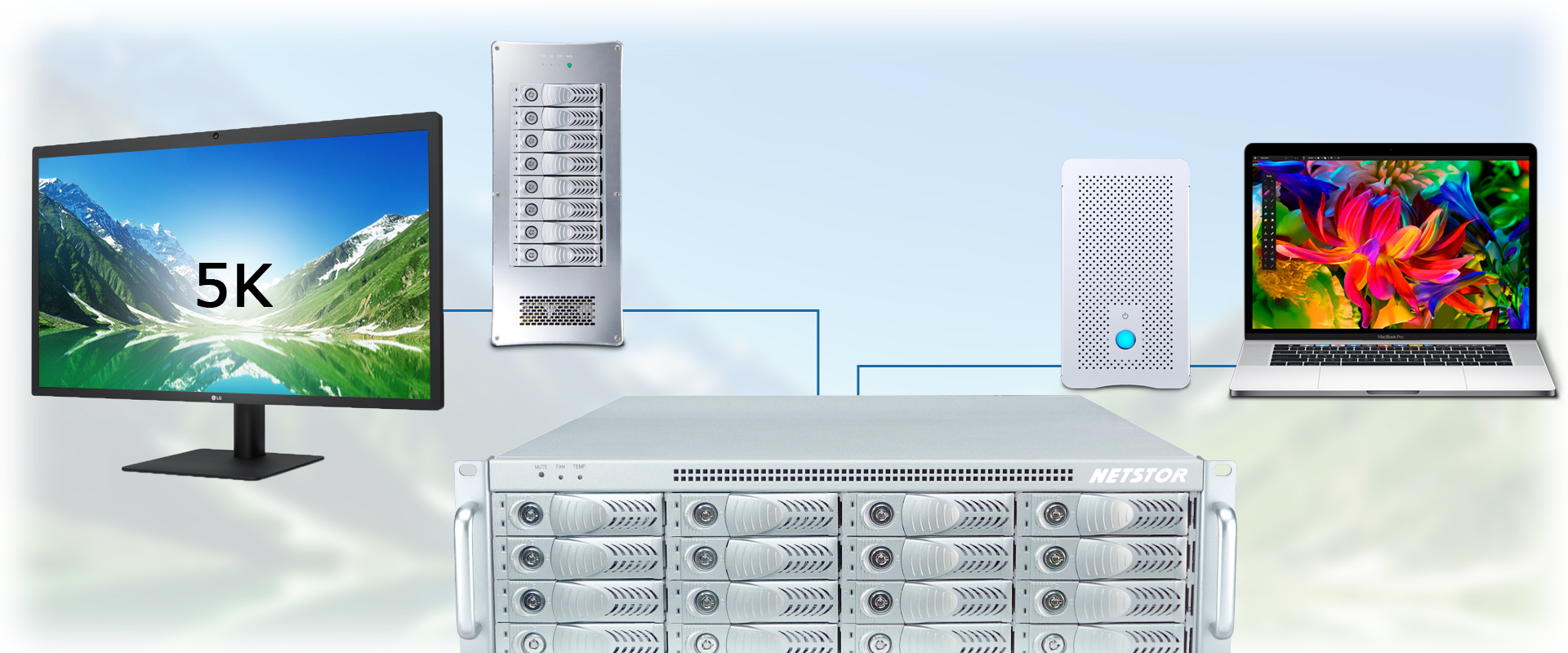

Netstor NA333TB3 is able to daisy-chain with up to six Thunderbolt 3 devices. Also with the support of up to two 4K UHD or one 5K display daisy-chained together.

Thunderbolt 3 devices daisy-chain with NA333TB3

Mac certified, Working with All Series of Thunderbolt Mac

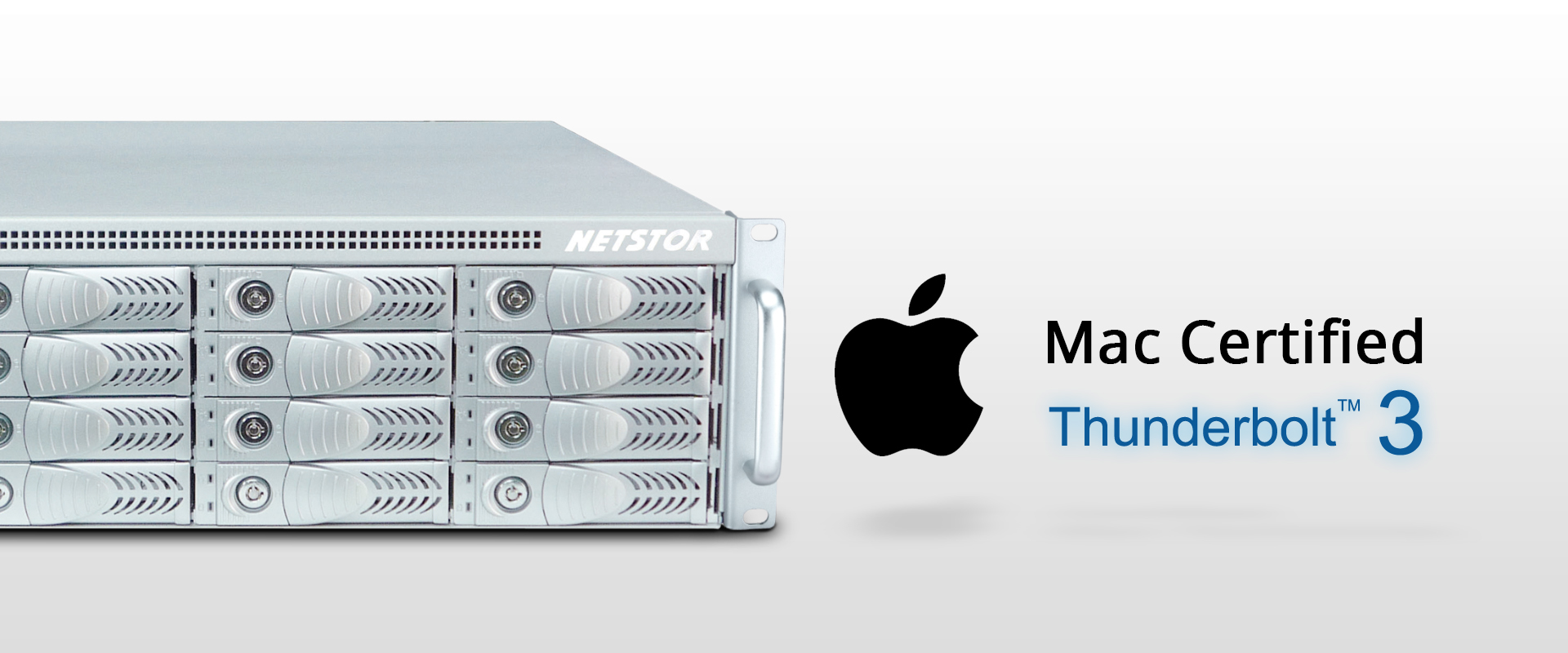

The Netstor Thunderbolt 3 NA333TB3 has passed Apple's strict certification test process and is Mac certified, working with all series of Thunderbolt Mac.

Netstor NA333TB3 has passed Apple's certification test process and is Mac certified.

Apple and Mac mentioned in the content are trademarks or registered trademarks of Apple Inc. in the USA and/or other countries.

Specs

Specifications

	NA333TB3
Host Interface	Thunderbolt™3 (Dual Port USB-C for Daisy Chain, compatible with Thunderbolt™4)
Data Transfer Rate	40Gbps
HDD Interface	SAS/SATA (12G/6Gbps)
No. of Disk(s)	Up to 16 (For 2.5" or 3.5" HDD & sold separately)
RAID Levels	Requires a RAID card with internal 16 port and Thunderbolt driver(RAID card sold separately)
PCIe Slot Expansion	Three PCIe3.0 x8 slots
Thunderbolt Expansion	Up to Six Thunderbolt devices
LED Display for Enclosure	Fan normal - Green; Fan failure - Red Temp. normal - Green; Temp. over 50°C - Red
LED Display for each Tray	White - Power On Indicator Flash Blue - HDD Accessing Indicator Red - HDD Failure Indicator
Alarm	Mutable buzzer beeping for fan failure or over temperature occurs
Material	Heavy-duty cold-rolled steel Housing
Power Supply	500W Redundant PSU (High-Efficiency & Low Noise) Input: 90-230 VAC/50-60 HZ Output: +5V and +12V
Dimension	559(D) x 482(W) x 131(H) mm 22 (D) x 19 (W) x 5.16 (H) inch
Cooling	Three 90 x90 x25 mm
System Support	Mac (M1, M1 Pro, M1 Max, and M1 Ultra or Intel) with Thunderbolt 3/Thunderbolt 4 ports Note: Thunderbolt 2 Mac will request a Thunderbolt 3(USB-C) to Thunderbolt 2 adapter from Apple.
O.S. Support	Mac OS X 10.12.3 above
PCIe card Driver Request	Third-party PCIe card should support Mac OS with Thunderbolt aware's driver
PCIe card Size Available	Full length and full height PCIe card
Operating Temperature	5 to 40°C (41 to 104°F)
Storage Temperature	-10 to 50°C (14 to 122°F)
Relative Humidity	20 to 80% (non-condensing)
Package Content	Enclosure x 1 HDD Tray x 16 (Installed) Internal miniSAS cable x 4 Thunderbolt3-40Gbps cable x 1 (2 meter) Hard Disk Drive mounting screw x 64 Key for HDD tray x 2 Power Cord x 2

Host Interface

Thunderbolt™3 (Dual Port USB-C for Daisy Chain)

Data Transfer Rate

40Gbps

HDD Interface

SAS/SATA (12G/6Gbps)

No. of Disk(s)

Up to 16 (For 2.5" or 3.5" HDD & sold separately)

RAID Levels

Requires a RAID card with internal 16 port and Thunderbolt driver(RAID card sold separately)

PCIe Slot Expansion

Three PCIe3.0 x8 slots

Thunderbolt Expansion

Up to Six Thunderbolt devices

LED Display for Enclosure

Fan normal - Green; Fan failure - Red
Temp. normal - Green; Temp. over 50°C - Red

LED Display for each Tray

White - Power On Indicator
Flash Blue - HDD Accessing Indicator
Red - HDD Failure Indicator

Alarm

Mutable buzzer beeping for fan failure or over temperature occurs

Material

Heavy-duty cold-rolled steel Housing

Power Supply

500W Redundant PSU (High-Efficiency & Low Noise)
Input: 90-230 VAC/50-60 HZ
Output: +5V and +12V

Dimension

559(D) x 482(W) x 131(H) mm
22 (D) x 19 (W) x 5.16 (H) inch

Cooling

Three 90 x90 x25 mm

System Support

MacBook Pro(2016) with a Thunderbolt 3 port

Note: Thunderbolt 2 Mac will request a Thunderbolt 3(USB-C) to Thunderbolt 2 adapter from Apple.

O.S. Support

Mac OS X 10.12.3 above

PCIe card Driver Request

Third-party PCIe card should support Mac OS with Thunderbolt aware's driver

PCIe card Size Available

Full length and full height PCIe card

Operating Temperature

5 to 40°C (41 to 104°F)

Storage Temperature

-10 to 50°C (14 to 122°F)

Relative Humidity

20 to 80% (non-condensing)

Package Content

Enclosure x 1
HDD Tray x 16 (Installed)
Internal miniSAS cable x 4
Thunderbolt3-40Gbps cable x 1 (2 meter)
Hard Disk Drive mounting screw x 64
Key for HDD tray x 2
Power Cord x 2

Accessories

Model No.	Description
NA333TB3	3U 16 bay Thunderbolt™ 3 to Combo SAS/SATA JBOD and PCIe Expansion Chassis, with redundant 500W Power Supply, One Thunderbolt 3 active 2 meter cable
ANNA920C0450	Silver Color Short Tray for NA333TB3
BARC1883IX16	Areca's ARC-1883ix-16, internal 16 port SAS/SATA RAID Adapter, Dual Core RAID-on-Chip 1.2GHz processor, Supports RAID level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD

Model No. - NA333TB3

3U 16 bay Thunderbolt™ 3 to Combo SAS/SATA JBOD and PCIe Expansion Chassis, with redundant 500W Power Supply, One Thunderbolt 3 active 2 meter cable

Model No. - ANNA920C0450

Silver Color Short Tray for NA333TB3

Model No. - BARC1883IX16

Areca's ARC-1883ix-16, internal 16 port SAS/SATA RAID Adapter, Dual Core RAID-on-Chip 1.2GHz processor, Supports RAID level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD

Compatibility

Host Support

iMac
(Mid 2017) MacBookPro
(Mid 2017) MacBookPro
(Late 2016)

RAID Card Support

	ARC-1883ix-16
	ESAS-R60F (RAID card) ESAH- H120F (HBA card)
	RocketRAID 2760A

Audio Card Support

	Pro Tools HDX (Tested by Netstor) Pro Tools HD Native
	AES16e
	HDSPe MADI HDSPe AIO HDSPe AES HDSPe RayDAT
	UAD-2 DUO (version 6.3.1+) UAD-2 QUAD

Video Card Support

	DeckLink Studio DeckLink Quad Intensity Pro DeckLink HD 3D DeckLink 4K (version 9.5+)
	Create 3D Ultra Create 3D Create HD Epoch Supernova S+
	Mojito MAX
	Kona 3G (version 10.3+) Kona LHi Kona LHe Plus
	RED ROCKET™ RED ROCKET-X

10G Networking Card

	10G-PCIE-8B-2C 10G-PCIE-8B-2S 10G-PCIE-8B-C 10G-PCIE-8B-S 10G-PCIE2-8B2-2C 10G-PCIE2-8B2-2S (version v1.3.1+)
	FFRM-NS11 FFRM-NS12 FFRM-NS14 FFRM-NQ41 FFRM-NQ42
