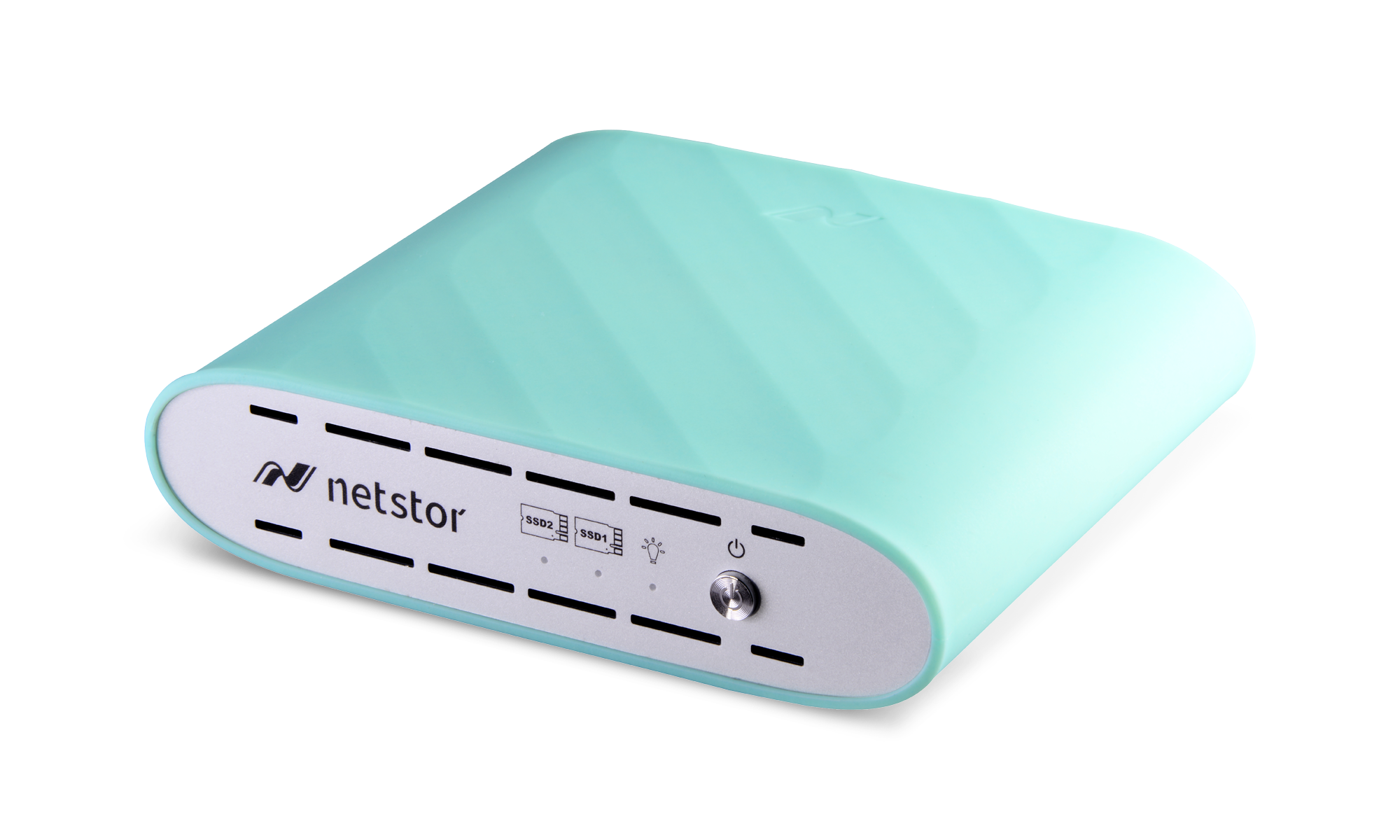

NA611TB3

Thunderbolt 3 (雷電 3) 2槽式 NVMe SSD 外接擴展盒

產品特色

小巧，卻有令人吃驚的速度。

儘管NA611TB3只有小巧的尺寸以及輕盈的重量，但是卻有著驚人速度的介面。最新科技Thunderbolt™3的40Gbps頻寬規格、如閃電般飛快的每秒2600MB傳輸速度適用於要求低延遲、高效率的資料儲存以及高畫質影片剪輯等應用。

NVMe SSD 外接盒 擴充盒

4K創作，掌握在你的手掌。

針對NVMe閃存而設計的NA611TB3，雖然只有手掌般的尺寸，但其驚人的傳輸效能卻足以支援4K影片剪輯以及廣播電視的後製工作流程，絕非一般傳統硬碟能夠比擬。

總是能有雙倍的容量。

科技的飛快進步讓M.2 NVMe PCIe的固態硬碟有單支模組越來越大的容量推出，但濰進科技知道這樣對影音剪輯的應用還是不夠，於是設計能夠自行安裝兩個M.2 NVMe模組的NA611TB3。無論市面上有多大容量的M.2 NVMe，你總是能夠有雙倍的容量。

* NVMe SSD為選購商品。

專為NVMe快閃儲存而設計。

NA611TB3是專為快閃儲存最新技術的NVMe PCIe而設計，使用者可以自行安裝兩個M.2 NVMe固態硬碟模組，尺寸包含2242(42mm)、2260、2280到全長的22110(110mm)。並設計每一模組PCIe 3.0 x2高達16Gpbs的傳輸頻寬，除了各自單顆JBOD運作外，還可以使用電腦系統的RAID 0功能來加速，或者用RAID 1來備分重要的資料。

NVMe SSD 外接盒 擴充盒

超快、極速 !

AJA 實測結果 - RAID 0 等級

WRITE

1940 MB/SEC

READ

2369 MB/SEC

* 測試結果及效能可能因硬體或作業系統不同而略有誤差。 (NVMe SSD為選購商品)

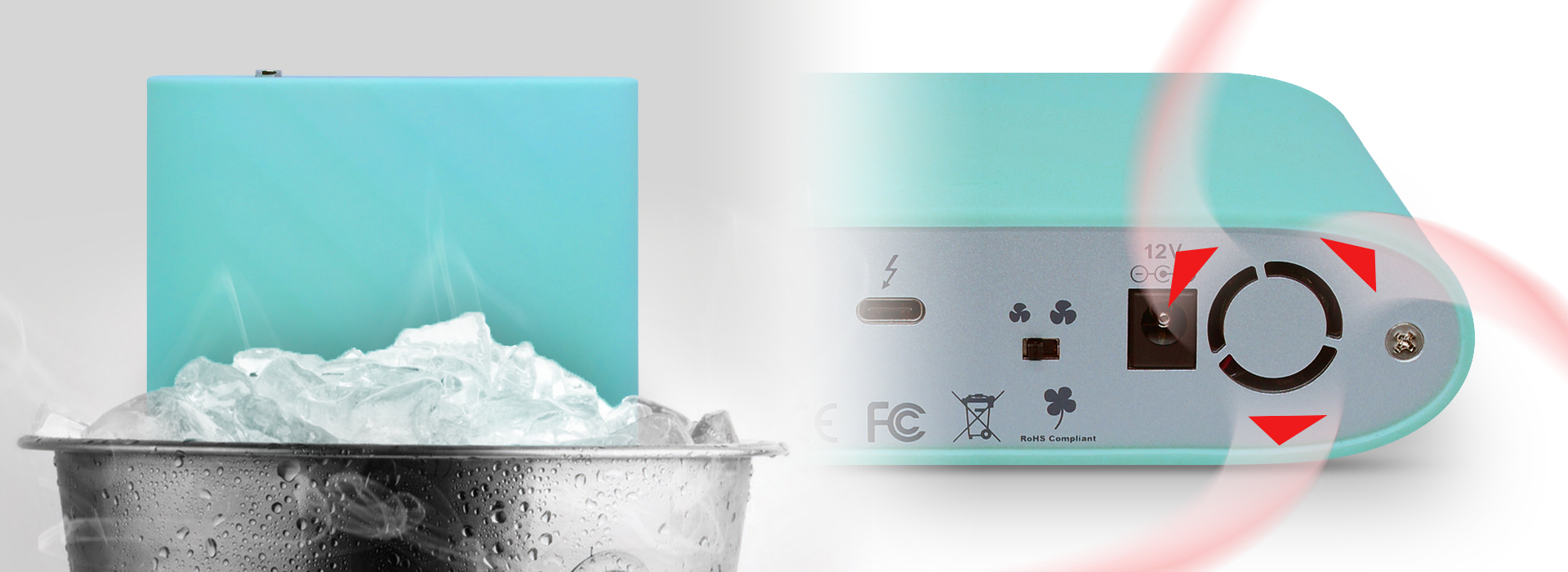

內建風扇 ，保持你的NVMe在 ”酷” 的狀態。

內建主動式散熱風扇並設計可調式風速開關，在保持靜音的過程中將NVMe所產生的熱氣快速排出，讓您的NVMe模組總是保持在最低溫度，進而發揮NVMe固態硬碟的最佳效能。

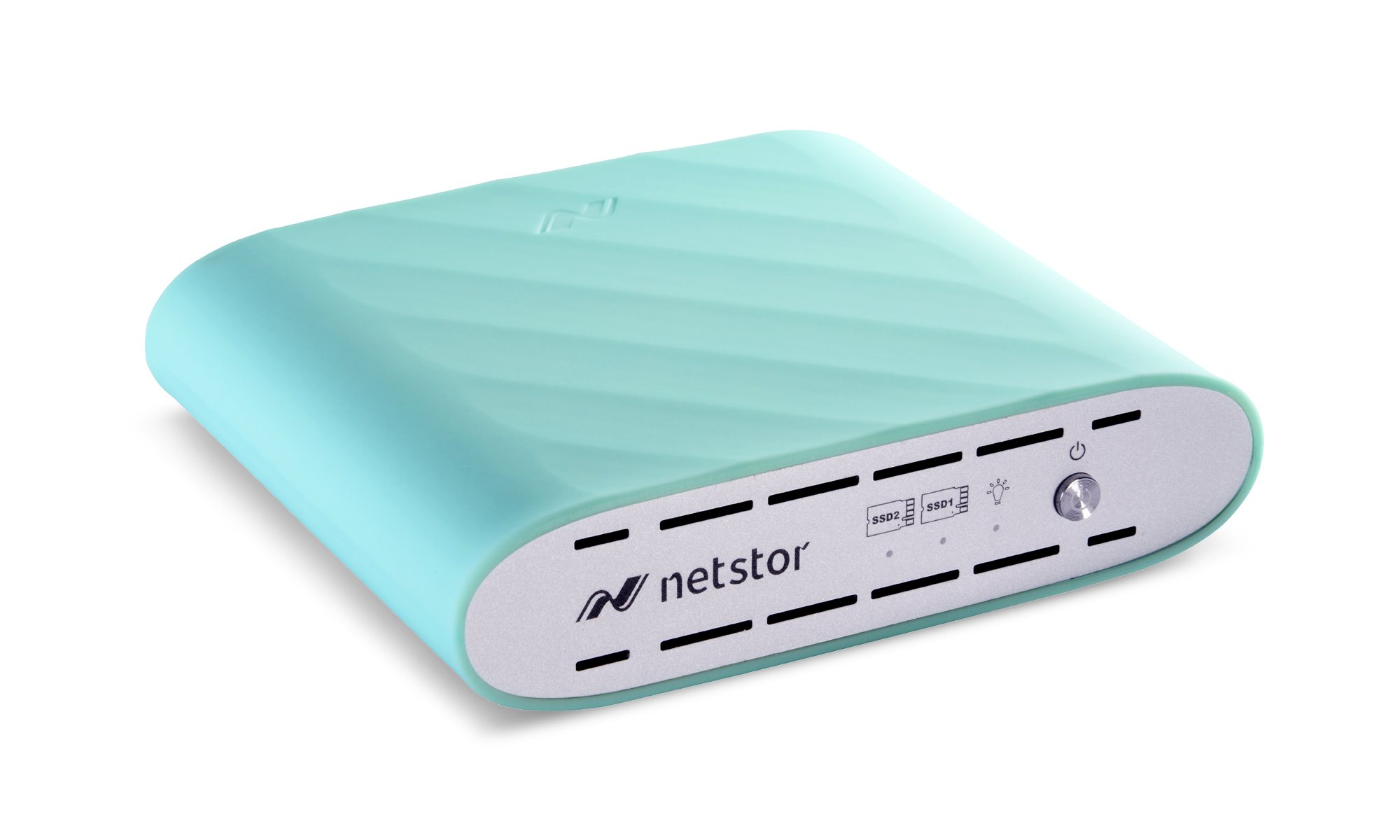

體積小，但擴充能力強。

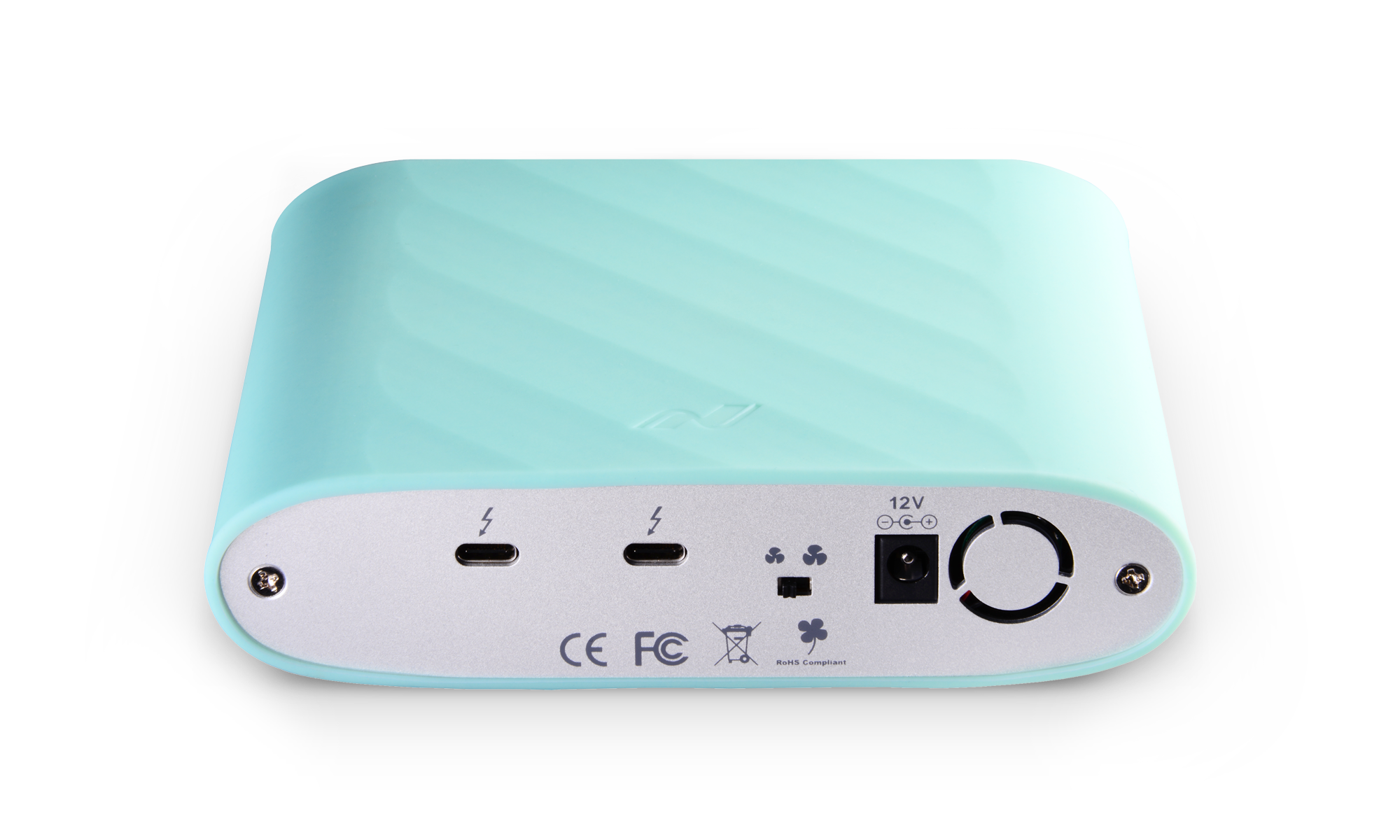

即使只有手掌大小，NA611TB3仍然設計保留兩個Thunderbolt3接口，最新統一接頭的USB-C不僅可以向上游與同樣Thunderbolt3主機連接，所保留的第二個接口還可以向下連接Thunderbolt3 大型存儲、周邊設備，或者Thunderbolt的螢幕。影音剪輯者能在享有高速傳輸的NVMe SSD速度時，還可將完成的作品立即移至硬碟式的儲存設備。

上述內容所提到的Apple®、Mac等訊息屬於Apple Inc. 在美國及各國的版權所有。

詳細規格

Specifications

  NA611TB3
主機介面 Thunderbolt™ 3 (USB-C, 相容於 Thunderbolt™4主機)
傳輸速率 40Gbps
NVMe 規格 Two M.2 x4 M key (Two PCIe 3.0 x2 electrical)
NVMe Type Supports 2242 / 2260 / 2280 / 22110 PCIe SSD
容量 NVMe SSD 為選購商品
RAID 等級 JBOD (RAID 0 or 1 can be provided by OS)
NVMe 配置 A Single volume (single M.2 NVMe SSD is installed as JBOD mode)
B Dual volumes (two M.2 NVMe SSDs are installed as JBOD mode)
C Single volume (two M.2 NVMe SSDs are installed configured as RAID 0 by O.S.)
D Single volume (two M.2 NVMe SSDs are installed configured as RAID 1 by O.S.)
系統碟設定功能 macOS: macOS: 10.13以上,
single NVMe SSD (not RAIDed)
Windows: 不支援
LED 指示燈 Standby - orange
Power on - blue
NVMe Access - flashing white
產品尺寸 125(D) x 150(W) x 35(H) mm
4.92(D) x 5.9(W) x 1.37(H) inch
材質 Aluminum housing
電源供應器 Power Adapter:
AC Input: 100–240V, 50-60Hz
DC Output:+12V/5A, 60W
風扇 One 20 x 20 x 10 mm Cooling Fan

(If your NVMe module doesn’t need active cooling, please stop the fan by disconnecting the fan connector)
系統支援 macOS 10.13 或更新版本(支援 M1, M1 Pro, M1 Max, and M1 Ultra or Intel)
Windows 8 / 10
產品重量 0.6 Kgs / 1.32 lbs (w/o Adapter)
建議運作環境溫度 0 to 40°C (32 to 104°F)
建議收納環境溫度 -10 to 50°C (14 to 122°F)
建議環境相對濕度 20 to 80% (non-condensing)
雷電串接 Thunderbolt 3 port for daisy-chain up to 6 devices
有效保固期限 2年
包裝內容物 Enclosure x 1
60W Power Adapter x 1
Thunderbolt3-40Gbps cable x 1 (0.5 meter)
Power Cord x 1
主機介面
Thunderbolt™3 (USB-C)
傳輸速率
40Gbps
NVMe 規格
Two M.2 x4 M key (Two PCIe 3.0 x2 electrical)
NVMe Type
Supports 2242 / 2260 / 2280 / 22110 PCIe SSD
容量
NVMe SSD 為選購商品
RAID 等級
JBOD (RAID 0 or 1 can be provided by OS)
NVMe 配置
A Single volume (single M.2 NVMe SSD is installed as JBOD mode)
B Dual volumes (two M.2 NVMe SSDs are installed as JBOD mode)
C Single volume (two M.2 NVMe SSDs are installed configured as RAID 0 by O.S.)
D Single volume (two M.2 NVMe SSDs are installed configured as RAID 1 by O.S.)
系統碟設定功能
macOS: macOS: 10.13以上,
single NVMe SSD (not RAIDed)
Windows: 不支援
LED 指示燈
Standby - orange
Power on - blue
NVMe Access - flashing white
產品尺寸
125(D) x 150(W) x 35(H) mm
4.92(D) x 5.9(W) x 1.37(H) inch
材質
Aluminum housing
電源供應器
Power Adapter:
AC Input: 100–240V, 50-60Hz
DC Output:+12V/5A, 60W
風扇
One 20 x 20 x 10 mm Cooling Fan

(If your NVMe module doesn’t need active cooling, please stop the fan by disconnecting the fan connector)

系統支援
macOS High Sierra 10.13 或更新版本
Windows 8 / 10
產品重量
0.6 Kgs / 1.32 lbs (w/o Adapter)
建議運作環境溫度
0 to 40°C (32 to 104°F)
建議收納環境溫度
-10 to 50°C (14 to 122°F)
建議環境相對濕度
20 to 80% (non-condensing)
雷電串接
Thunderbolt 3 port for daisy-chain up to 6 devices
有效保固期限
2年
包裝內容物
Enclosure x 1
60W Power Adapter x 1
Thunderbolt3-40Gbps cable x 1 (0.5 meter)
Power Cord x 1

Accessories

型號 內容物描述
NA611TB3 Thunderbolt3 to M.2 NVMe Storage, Dual Thunderbolt3 Ports, with 60W Power Adapter, One 0.5 meter Thunderbolt3 cable
型號 - NA611TB3
Thunderbolt3 to M.2 NVMe Storage, Dual Thunderbolt3 Ports, with 60W Power Adapter, One 0.5 meter Thunderbolt3 cable

相容性列表

M.2 NVMe SSD

任何標準規格的M.2 NVME PCIe介面SSD都能夠相容於NA611TB3並工作於PC Windows 10以上的系統。下列相容性列表是針對Mac 的macOS，如有任何未列於其中的品牌型號需先事先詢問NVMe製造商是否相容於macOS。

asgard logo AN2
500G GB 1 TB 2 TB
crucial logo P1 SSD
500G GB 1 TB
  P3 Plus
500G GB 1 TB 2 TB 4 TB
  P5 Plus
500G GB 1 TB 2 TB

Note: P3 Plus / P5 Plus, the top performance will be limited to 2750 MB/s due to Thunderbolt 3's native PCIe 3.0.
intel logo 600p
128 GB 256 GB 512 GB 1.02 TB
  660p
512 GB 1 TB 2 TB
  760p
256 GB 512 GB 1 TB
micron logo 7300 PRO
480 GB 960 GB 1.92 TB3.84 TB
  2210
512 GB 1 TB 2 TB
  2300
512 GB 1 TB 2 TB
ocz logo RD400
256 GB 512 GB 1 TB
pny logo CS3030
250 GB 500 GB 1 TB 2 TB
  CS3040
500 GB 1 TB 2 TB 4 TB
sabrent logo Rocket
500 GB 1 TB 2 TB 4 TB
  Rocket Q
500 GB 1 TB 2 TB 4 TB
  Rocket Q4
1 TB 2 TB 4 TB

Note: Rocket Q4, the top performance will be limited to 2750 MB/s due to Thunderbolt 3’s native PCIe 3.0.
samsung logo SM961
256 GB
  960 EVO
250 GB 500 GB 1000 GB
  960 PRO
512 GB 1024 GB 2048 GB
  970 EVO *
500 GB 1000 GB 2000 GB

970 EVO Plus had compatibility issue with macOS operating system, please check Samsung's latest 970 EVO Plus firmware to solve this issue.
  970 PRO
512 GB 1024 GB
  980 PRO *
250 GB 500 GB 1 TB

Note: The top performance will be limited to 2750 MB/s due to Thunderbolt 3's native PCIe 3.0.
toshhiba logo XG3
128 GB 256 GB 512 GB
  XG5
256 GB 512 GB 1 TB
  XG6
256 GB 512 GB 1 TB
ocz logo WD Black
250 GB 500 GB 1 TB 2 TB

最後更新日期：2024年3月1日
