NA611TB3

Thunderbolt 3 (雷电 3) 2槽式 NVMe SSD 外接扩展盒

产品特色

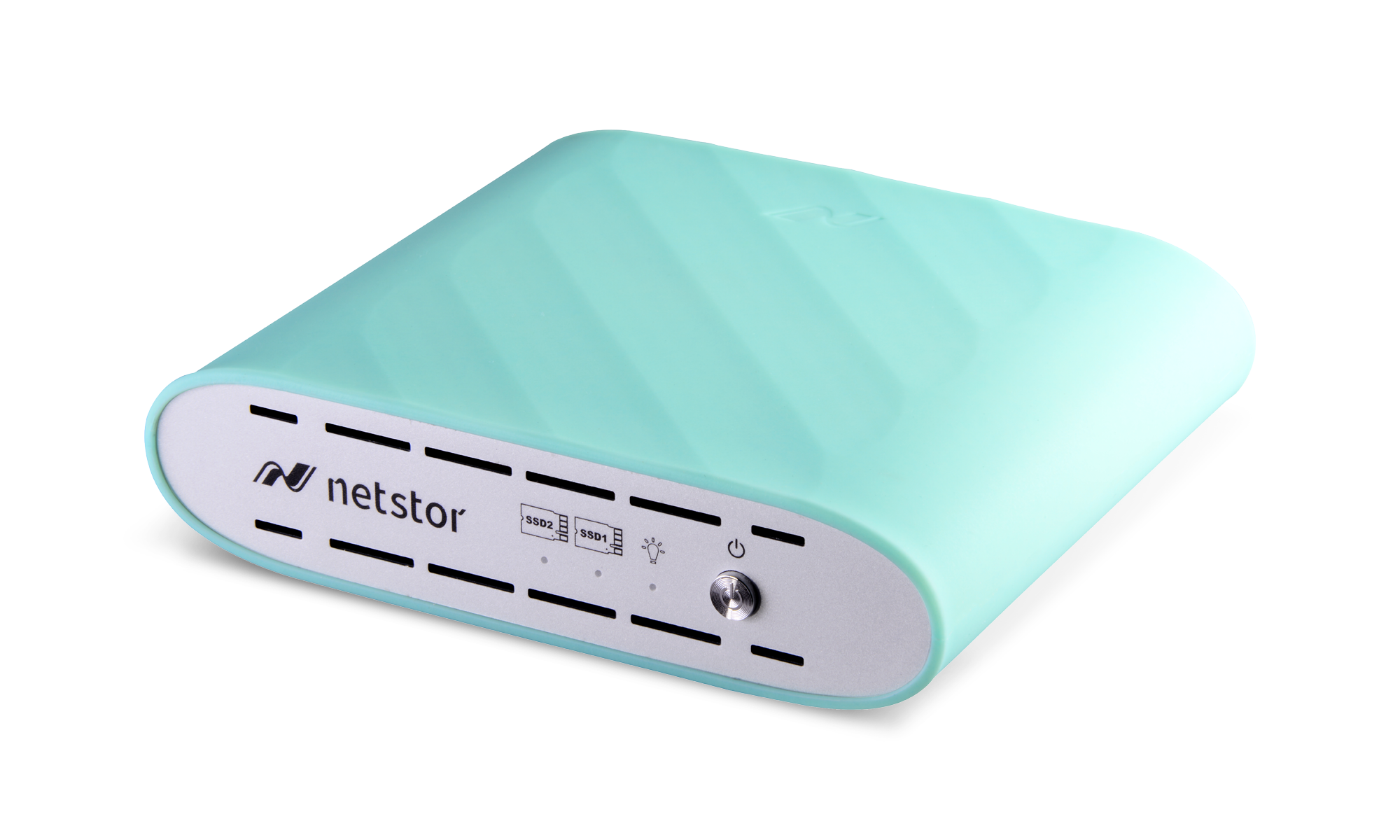

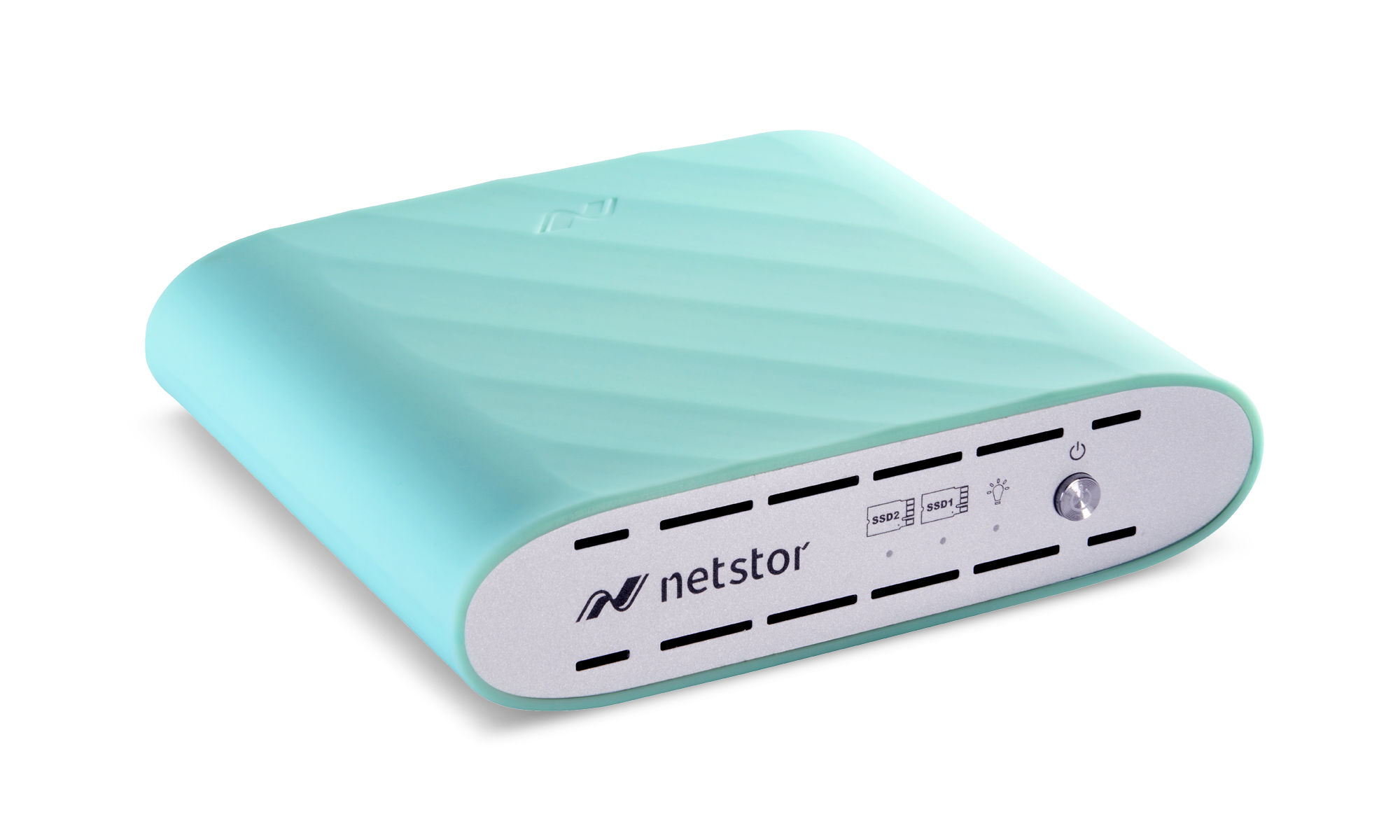

小巧，却有令人吃惊的速度。

尽管NA611TB3只有小巧的尺寸以及轻盈的重量，但是却有着惊人速度的接口。最新科技Thunderbolt™3的40Gbps带宽规格、如闪电般飞快的每秒2600MB传输速度适用于要求低延迟、高效率的数据储存以及高画质影片剪辑等应用。

NVMe SSD 外接盒 扩充盒

4K创作，掌握在你的手掌。

针对NVMe闪存而设计的NA611TB3，虽然只有手掌般的尺寸，但其惊人的传输效能却足以支持4K影片剪辑以及广播电视的后制工作流程，绝非一般传统硬盘能够比拟。

总是能有双倍的容量。

科技的飞快进步让M.2 NVMe PCIe的固态硬盘有单支模块越来越大的容量推出，但潍进科技知道这样对影音剪辑的应用还是不够，于是设计能够自行安装两个M.2 NVMe模块的NA611TB3。无论市面上有多大容量的M.2 NVMe，你总是能够有双倍的容量。

* NVMe SSD为选购商品。

专为NVMe快闪储存而设计。

NA611TB3是专为快闪储存最新技术的NVMe PCIe而设计，使用者可以自行安装两个M.2 NVMe固态硬盘模块，尺寸包含2242(42mm)、2260、2280到全长的22110(110mm)。并设计每一模块PCIe 3.0 x2高达16Gpbs的传输带宽，除了各自单颗JBOD运作外，还可以使用计算机系统的RAID 0功能来加速，或者用RAID 1来备分重要的数据。

NVMe SSD 外接盒 扩充盒

超快、极速 !

AJA 实测结果 - RAID 0 等级

WRITE

1940 MB/SEC

READ

2369 MB/SEC

* 测试结果及效能可能因硬件或操作系统不同而略有误差。 (NVMe SSD为选购商品)

内建风扇 ，保持你的NVMe在 ”酷” 的状态。

内建主动式散热风扇并设计可调式风速开关，在保持静音的过程中将NVMe所产生的热气快速排出，让您的NVMe模块总是保持在最低温度，进而发挥NVMe固态硬盘的最佳效能。

体积小，但扩充能力强。

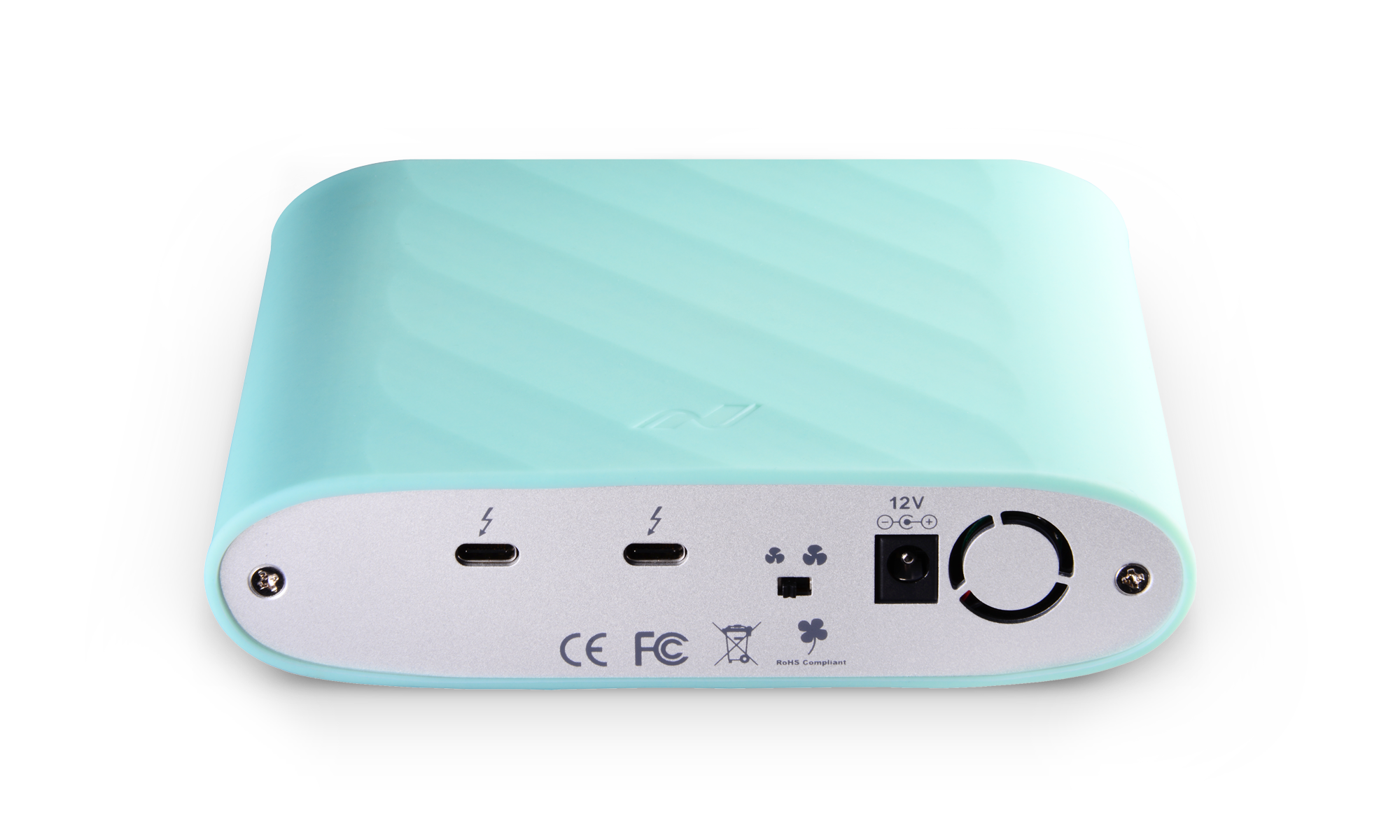

即使只有手掌大小，NA611TB3仍然设计保留两个Thunderbolt3接口，最新统一接头的USB-C不仅可以向上游与同样Thunderbolt3主机连接，所保留的第二个接口还可以向下连接Thunderbolt3 大型存储、接口设备，或者Thunderbolt的屏幕。影音剪辑者能在享有高速传输的NVMe SSD速度时，还可将完成的作品立即移至硬盘式的储存设备。

上述内容所提到的Apple®、Mac等讯息属于Apple Inc. 在美国及各国的版权所有。

详细规格

Specifications

  NA611TB3
主机接口 Thunderbolt™ 3 (USB-C端口, 兼容于雷雳4主机)
传输速率 40Gbps
NVMe 规格 Two M.2 x4 M key (Two PCIe 3.0 x2 electrical)
NVMe Type Supports 2242 / 2260 / 2280 / 22110 PCIe SSD
容量 NVMe SSD 为选购商品
RAID 等级 JBOD (RAID 0 or 1 can be provided by OS)
NVMe 配置 A Single volume (single M.2 NVMe SSD is installed as JBOD mode)
B Dual volumes (two M.2 NVMe SSDs are installed as JBOD mode)
C Single volume (two M.2 NVMe SSDs are installed configured as RAID 0 by O.S.)
D Single volume (two M.2 NVMe SSDs are installed configured as RAID 1 by O.S.)
系统盘设定功能 macOS: macOS: 10.13以上,
single NVMe SSD (not RAIDed)
Windows: 不支援
LED 指示灯 Standby - orange
Power on - blue
NVMe Access - flashing white
产品尺寸 125(D) x 150(W) x 35(H) mm
4.92(D) x 5.9(W) x 1.37(H) inch
材质 Aluminum housing
电源供应器 Power Adapter:
AC Input: 100–240V, 50-60Hz
DC Output:+12V/5A, 60W
风扇 One 20 x 20 x 10 mm Cooling Fan

(If your NVMe module doesn’t need active cooling, please stop the fan by disconnecting the fan connector)
系统支持 macOS High Sierra 10.13 或更新版本
Windows 8 / 10
产品重量 0.6 Kgs / 1.32 lbs (w/o Adapter)
建议运作环境温度 0 to 40°C (32 to 104°F)
建议收纳环境温度 -10 to 50°C (14 to 122°F)
建议环境相对湿度 20 to 80% (non-condensing)
雷电串接 Thunderbolt 3 port for daisy-chain up to 6 devices
有效保固期限 2年
包装内容物 Enclosure x 1
60W Power Adapter x 1
Thunderbolt3-40Gbps cable x 1 (0.5 meter)
Power Cord x 1
主机接口
Thunderbolt™3 (USB-C)
传输速率
40Gbps
NVMe 规格
Two M.2 x4 M key (Two PCIe 3.0 x2 electrical)
NVMe Type
Supports 2242 / 2260 / 2280 / 22110 PCIe SSD
容量
NVMe SSD 为选购商品
RAID 等级
JBOD (RAID 0 or 1 can be provided by OS)
NVMe 配置
A Single volume (single M.2 NVMe SSD is installed as JBOD mode)
B Dual volumes (two M.2 NVMe SSDs are installed as JBOD mode)
C Single volume (two M.2 NVMe SSDs are installed configured as RAID 0 by O.S.)
D Single volume (two M.2 NVMe SSDs are installed configured as RAID 1 by O.S.)
系统盘设定功能
macOS: macOS: 10.13以上,
single NVMe SSD (not RAIDed)
Windows: 不支援
LED 指示灯
Standby - orange
Power on - blue
NVMe Access - flashing white
产品尺寸
125(D) x 150(W) x 35(H) mm
4.92(D) x 5.9(W) x 1.37(H) inch
材质
Aluminum housing
电源供应器
Power Adapter:
AC Input: 100–240V, 50-60Hz
DC Output:+12V/5A, 60W
风扇
One 20 x 20 x 10 mm Cooling Fan

(If your NVMe module doesn’t need active cooling, please stop the fan by disconnecting the fan connector)

系统支持
macOS High Sierra 10.13 或更新版本
Windows 8 / 10
产品重量
0.6 Kgs / 1.32 lbs (w/o Adapter)
建议运作环境温度
0 to 40°C (32 to 104°F)
建议收纳环境温度
-10 to 50°C (14 to 122°F)
建议环境相对湿度
20 to 80% (non-condensing)
雷电串接
Thunderbolt 3 port for daisy-chain up to 6 devices
有效保固期限
2年
包装内容物
Enclosure x 1
60W Power Adapter x 1
Thunderbolt3-40Gbps cable x 1 (0.5 meter)
Power Cord x 1

Accessories

型号 内容物描述
NA611TB3 Thunderbolt3 to M.2 NVMe Storage, Dual Thunderbolt3 Ports, with 60W Power Adapter, One 0.5 meter Thunderbolt3 cable
型号 - NA611TB3
Thunderbolt3 to M.2 NVMe Storage, Dual Thunderbolt3 Ports, with 60W Power Adapter, One 0.5 meter Thunderbolt3 cable

兼容性列表

M.2 NVMe SSD

任何标准规格的M.2 NVME PCIe界面SSD都能够兼容于NA611TB3并工作于PC Windows 10以上的系统。下列兼容性列表是针对Mac 的macOS，如有任何未列于其中的品牌型号需先事先询问NVMe制造商是否兼容于macOS。

asgard logo AN2
500G GB 1 TB 2 TB
crucial logo P1 SSD
500G GB 1 TB
  P3 Plus
500G GB 1 TB 2 TB 4 TB
  P5 Plus
500G GB 1 TB 2 TB

Note: P3 Plus / P5 Plus, the top performance will be limited to 2750 MB/s due to Thunderbolt 3's native PCIe 3.0.
intel logo 600p
128 GB 256 GB 512 GB 1.02 TB
  660p
512 GB 1 TB 2 TB
  760p
256 GB 512 GB 1 TB
micron logo 7300 PRO
480 GB 960 GB 1.92 TB3.84 TB
  2210
512 GB 1 TB 2 TB
  2300
512 GB 1 TB 2 TB
ocz logo RD400
256 GB 512 GB 1 TB
pny logo CS3030
250 GB 500 GB 1 TB 2 TB
  CS3040
500 GB 1 TB 2 TB 4 TB
sabrent logo Rocket
500 GB 1 TB 2 TB 4 TB
  Rocket Q
500 GB 1 TB 2 TB 4 TB
  Rocket Q4
1 TB 2 TB 4 TB

Note: Rocket Q4, the top performance will be limited to 2750 MB/s due to Thunderbolt 3’s native PCIe 3.0.
samsung logo SM961
256 GB
  960 EVO
250 GB 500 GB 1000 GB
  960 PRO
512 GB 1024 GB 2048 GB
  970 EVO *
500 GB 1000 GB 2000 GB

970 EVO Plus had compatibility issue with macOS operating system, please check Samsung's latest 970 EVO Plus firmware to solve this issue.
  970 PRO
512 GB 1024 GB
  980 PRO *
250 GB 500 GB 1 TB

Note: The top performance will be limited to 2750 MB/s due to Thunderbolt 3's native PCIe 3.0.
toshhiba logo XG3
128 GB 256 GB 512 GB
  XG5
256 GB 512 GB 1 TB
  XG6
256 GB 512 GB 1 TB
ocz logo WD Black
250 GB 500 GB 1 TB 2 TB

最后更新日期：2024年3月1日
