NS370TB3
机架型4盘位 <3.5吋 / 2.5吋> Thunderbolt 3 (雷电3) 磁盘阵列
产品特色
1U机架式Thunderbolt™ 3 Storage，移动机柜的好伙伴。
Netstor产品里最薄的机架式NS370TB3只占有1U空间，提供4个热插入的硬盘Tray可安装大容量3.5吋或讲求速度的2.5吋SSD。虽然是机架结构但安装上却非常容易，透过万用USB-C 接口只要一条Thunderbolt™3连接线就可以立即为Thunderbolt3主机扩充储存容量。
警报监控，一项不缺。
除了近端的蜂鸣器警报通知硬盘数组(RAID)事件外，NS370TB3额外提供一个网络接头，用来远程监控磁盘阵列的状况。当使用者设定需要通知管理者的事件条件后并填上通知的email，当数组发生需要通知的事项时就会寄出email给接收者 ，让管理人员可以实时处理事件。除此之外，NS370TB3磁盘背板设计有SGPIO线路能让损坏的硬盘精确的亮出红灯位置，更换硬盘的管理者再也不用盲目猜测来避免拔错硬盘进而毁损保贵数据。
容量与速度兼俱的Thunderbolt3机架式方案。

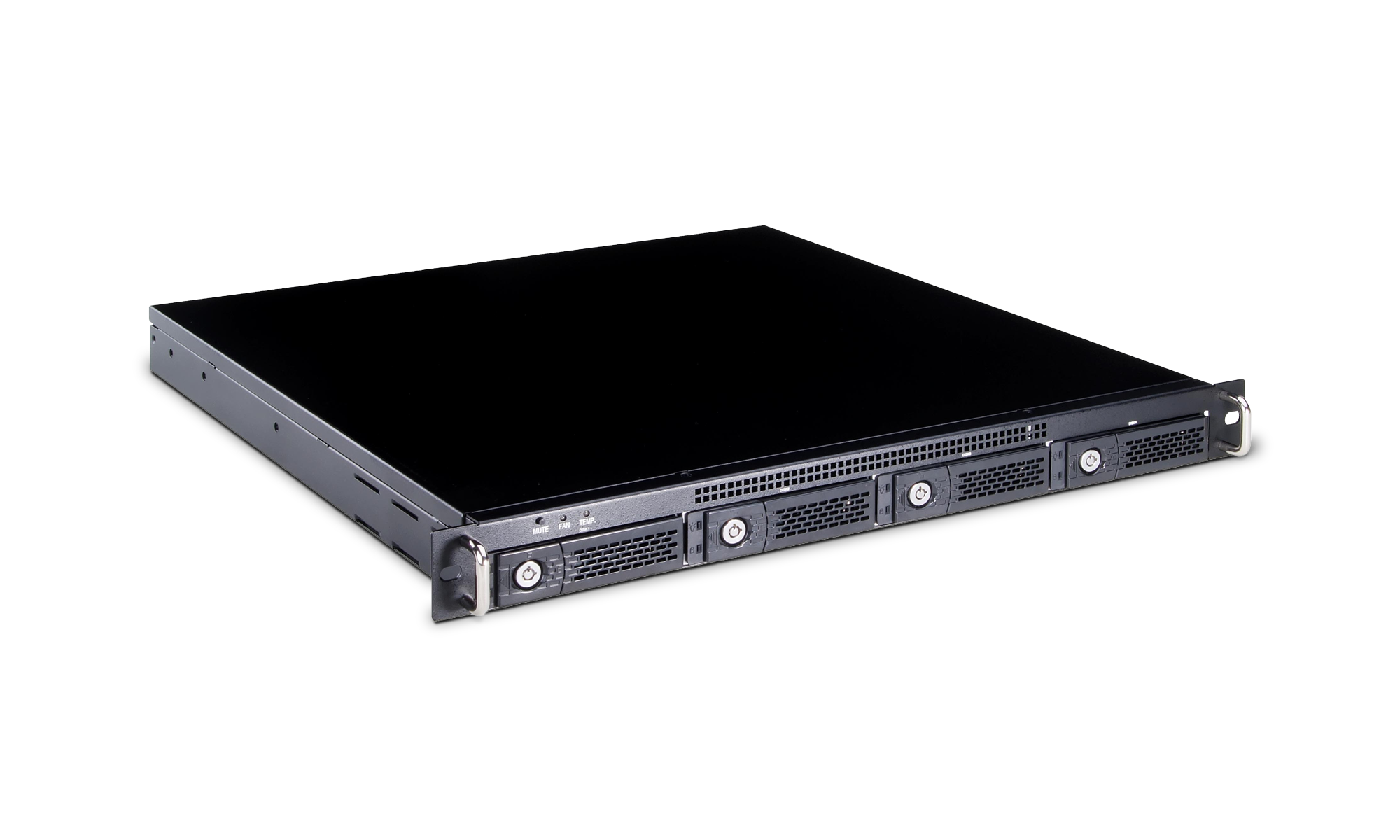

1U 4 bay的NS370TB3前方设计有4个热插入硬盘盘，每个Tray盘可安装高达10TB的超大容量硬盘或者高速的SSD，并藉由高达每秒40Gb的Thunderbolt 3带宽接口让机架式储存设备也享有高速的数据传输。
AJA 实测结果 - RAID 0 等级
WRITE
1591 MB/SEC
READ
2224 MB/SEC
* 测试结果及效能可能因硬件或操作系统不同而略有误差。
不可妥协的硬件式RAID处理器。
内建高阶硬件式RAID控制器，高性能933MHz Storage专用处理器再加上1GB具ECC规格的SDRAM能够在高效能的情况下不占用主计算机性能，并且提供多元RAID等级选项从RAID 0, 1, 10, 3, 5, 6, 30, 50, 60 为数据储存提供高速传输同时又具数据保护的功能。
要2.5吋还是3. 5吋 ? 一机双用。
你再也不需要、在购买产品前选择要装2.5吋HDD/SSD还是3.5吋硬盘而担忧，因为NS370TB3的前方热插入Tray盘能让你想装3.5吋硬盘就装3.5吋硬盘，想装2.5吋SSD就装2.5吋SSD。
硬盘盘锁头，安全加一级。
贴心的硬盘Tray盘锁头设计，可避免磁盘阵列的硬盘被意外的抽出，进而造成您宝贵数据毁损。
风扇热插入设计，更换风扇非难事。

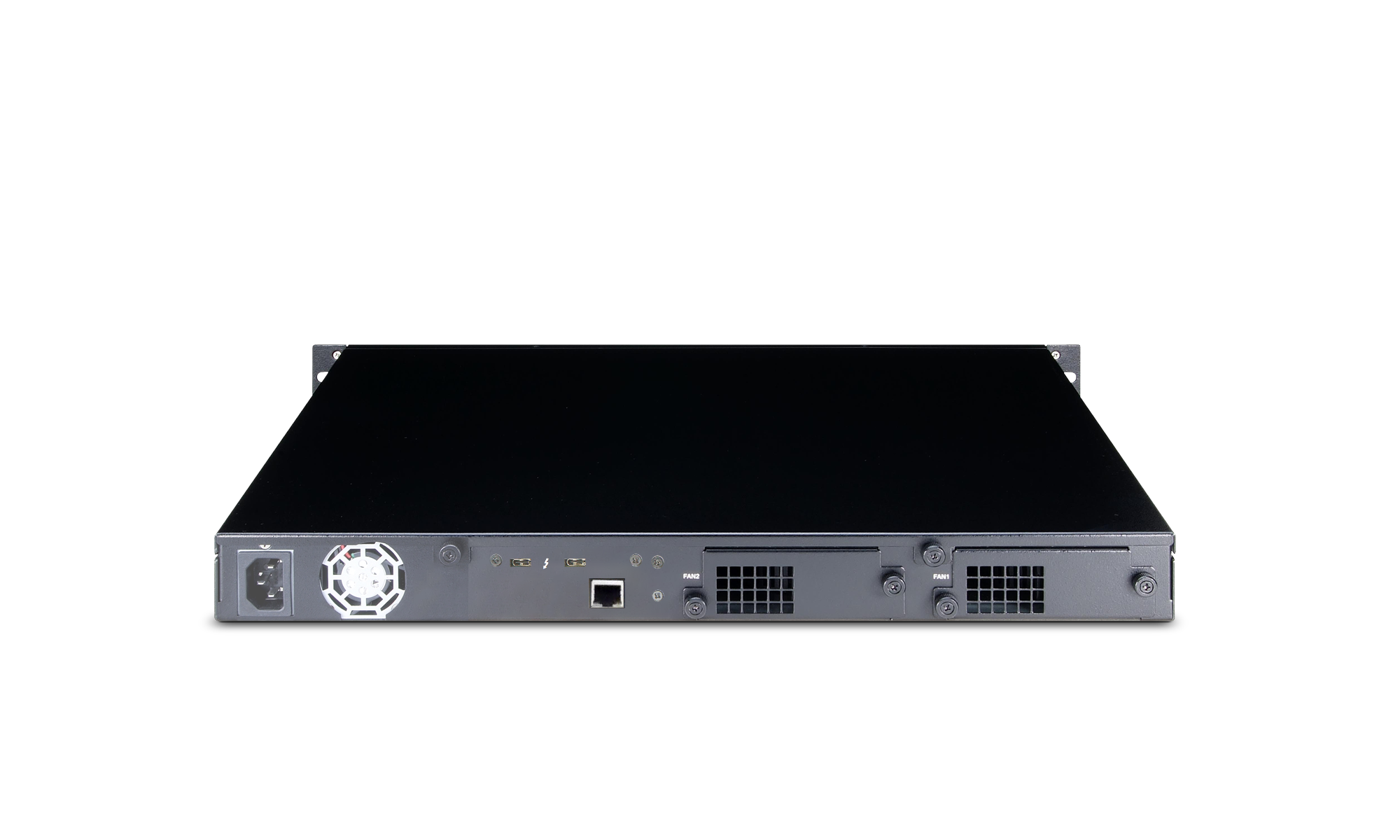

优质的硬盘通风背板设计，于后方双热插入高效风扇模块，加上风扇停止运转蜂鸣器警报，更换风扇再也不用停机。
通过Apple®认证，适用于各式Thunderbolt接口的Mac。
Netstor的4 bayNS370TB3产品已经通过Apple®认证，经由完整的测试将可适用于各式的Thunderbolt 3接口的Mac或者Thunderbolt 2 的Mac
(注: Thunderbolt2 Mac将需要额外购买Apple® 的转接器。
上述内容所提到的Apple®、Mac等讯息属于Apple Inc. 在美国及各国的版权所有。
详细规格
Specifications
| |
NS370TB3 |
| Host Interface |
- Thunderbolt™3 (USB-C 端口, 兼容于雷雳4主机)
- 40Gbps High Bandwidth
|
| Controller & RAID Feature |
- RAID-on-Chip Processor
- 1GB on-board SDRAM with ECC protection
- Supports RAID Level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD
- Multiple RAID Selection
- Online Array Roaming
- Online RAID Level/Stripe Size Migration
- Online Capacity Expansion and RAID Level Migration Simultaneously
- Greater than 2TB Capacity per Disk Drive Support
|
| Storage |
- Supports up to 4 SAS/SATA 12Gb/6Gb 2.5" or 3.5" HDDs/SSDs (Hard Disks/SSD Sold Separately)
- Heavy-duty cold-rolled steel Housing
- Thunderbolt3 Port for Daisy-chain up to 6 Devices
- Individual Key lock of each HDD tray for physical security
|
| Monitors/Indicators |
- Web base GUI RAID Manager for Remote Management
- SMTP Support for Email Notification
- SNMP Support for Remote Manager
- FAN fail LED
- Over Temperature LED
- HDD fail LEDs
|
| Fan Cooler |
- Two 75x 75x 28mm Blower (rear)
|
| Power Supply |
- Server-grade 250W Single Power Supply
- Low-noise Design
- Universal: 100~240VAC, 50/60Hz
|
| Environmental Requirements |
- Operation Temperature: 5°C ~ 50°C
- Storage Temperature: -20°C~ 70°C
- Operation Humidity: 10% ~ 80%, non-condensing
- Storage Humidity: 5% ~ 95%
|
| Dimension |
- 460(D) x 482(W) x 44(H) mm
- 18.1(D) x 19(W) x 1.73(H) inch
|
| Operating System |
- Mac OS X 10.12.3 above (支援 M1, M1 Pro, M1 Max, and M1 Ultra or Intel)
- Windows 10/8
|
| Scalability |
- Thunderbolt3 port for daisy-chain up to 6 devices
|
| 包装内容物 |
机台本体 x 1
硬盘Tray盘 x 4 (已安装于机台本体上)
Thunderbolt3-40Gbps 传输线 x 1 (2 米长)
硬盘固定座螺丝 x 16
硬盘锁钥匙 x 2
电源线 x 1 |
Host Interface
- Thunderbolt™3, USB-C Interface
- 40Gbps High Bandwidth
Controller & RAID Feature
- RAID-on-Chip Processor
- 1GB on-board SDRAM with ECC protection
- Supports RAID Level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD
- Multiple RAID Selection
- Online Array Roaming
- Online RAID Level/Stripe Size Migration
- Online Capacity Expansion and RAID Level Migration Simultaneously
- Greater than 2TB Capacity per Disk Drive Support
Storage
- Supports up to 4 SAS/SATA 12Gb/6Gb 2.5" or 3.5" HDDs/SSDs (Hard Disks/SSD Sold Separately)
- Heavy-duty cold-rolled steel Housing
- Thunderbolt3 Port for Daisy-chain up to 6 Devices
- Individual Key lock of each HDD tray for physical security
Monitors/Indicators
- Web base GUI RAID Manager for Remote Management
- SMTP Support for Email Notification
- SNMP Support for Remote Manager
- FAN fail LED
- Over Temperature LED
- HDD fail LEDs
Fan Cooler
- Two 75x 75x 28mm Blower (rear)
Power Supply
- Server-grade 250W Single Power Supply
- Low-noise Design
- Universal: 100~240VAC, 50/60Hz
Environmental Requirements
- Operation Temperature: 5°C ~ 50°C
- Storage Temperature: -20°C~ 70°C
- Operation Humidity: 10% ~ 80%, non-condensing
- Storage Humidity: 5% ~ 95%
Dimension
- 460(D) x 482(W) x 44(H) mm
- 18.1(D) x 19(W) x 1.73(H) inch
Operating System
- Mac OS X 10.12.3 above
- Windows 10/8
Scalability
- Thunderbolt3 port for daisy-chain up to 6 devices
包装内容物
机台本体 x 1
硬盘Tray盘 x 4 (已安装于机台本体上)
Thunderbolt3-40Gbps 传输线 x 1 (2 米长)
硬盘固定座螺丝 x 16
硬盘锁钥匙 x 2
电源线 x 1
Accessories
| Model No. |
Description |
| NS370TB3 |
1U 4 bay Thunderbolt3 SAS/SATA RAID Subsystem, Dual Thunderbolt3 Ports for Host and Daisy-chain, with Single 250W Power Supply, One 2 meter Thunderbolt3 cable |
| ANNA920C0340 |
Black Color Short Tray |
| ATSRFR28TW |
28寸薄型滑轨 |
Model No. - NS370TB3
1U 4 bay Thunderbolt3 SAS/SATA RAID Subsystem, Dual Thunderbolt3 Ports for Host and Daisy-chain, with Single 250W Power Supply, One 2 meter Thunderbolt3 cable
Model No. - ANNA920C0340
Black Color Short Tray
Model No. - ATSRFR28TW
28寸薄型滑轨
