NA341TB3
机架型8盘位 <3.5吋 / 2.5吋> Thunderbolt 3 (雷电3) 磁盘阵列
产品特色
容易安装，却又具有最高等级的数据保护。

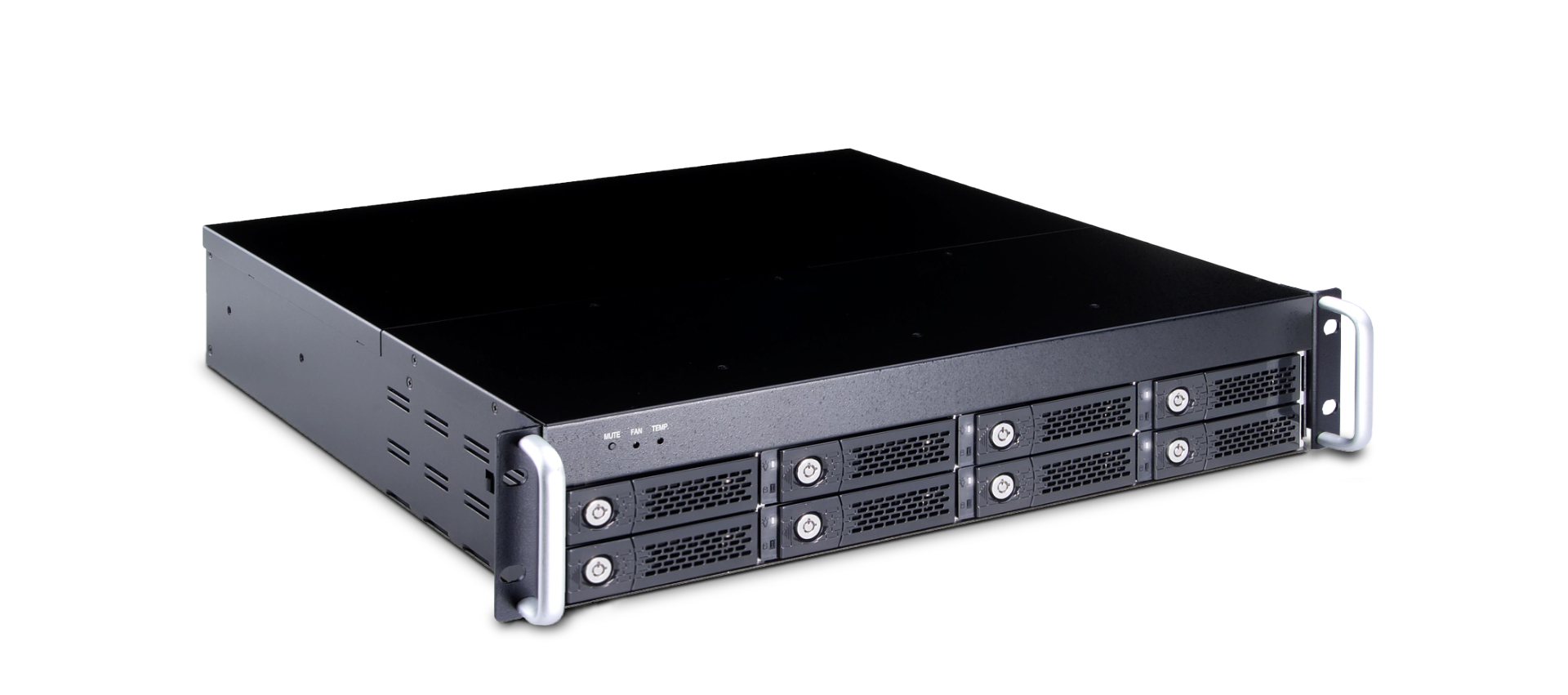

为您的Thunderbolt3工作站外接2U 8 Bay储存设备NA341TB3是件非常容易的事，透过万用USB-C 接口的NA341TB3不仅能够一线连接后，立即提供8颗硬盘的扩充空间，并且提供Thunderbolt™3的40Gbps传输带宽，让您的数据迅速的优游于主机以及储存设备之间。19吋机架式结构能够轻松容易的上下标准机柜。
监控储存设备，再也不是难事。
Netstor NA341TB3额外提供一个网络接头，用来远程监控磁盘阵列的状况。当使用者设定需要通知管理者的事件条件后并填上通知的email，当数组发生需要通知的事项时就会寄出email给接收者 ，让管理人员可以实时处理事件。除此之外，NA341TB3磁盘背板设计有SGPIO线路能让损坏的硬盘精确的亮出红灯位置，更换硬盘的管理者再也不用盲目猜测来避免拔错硬盘进而毁损宝贵数据。
不可妥协的硬件式RAID处理器。

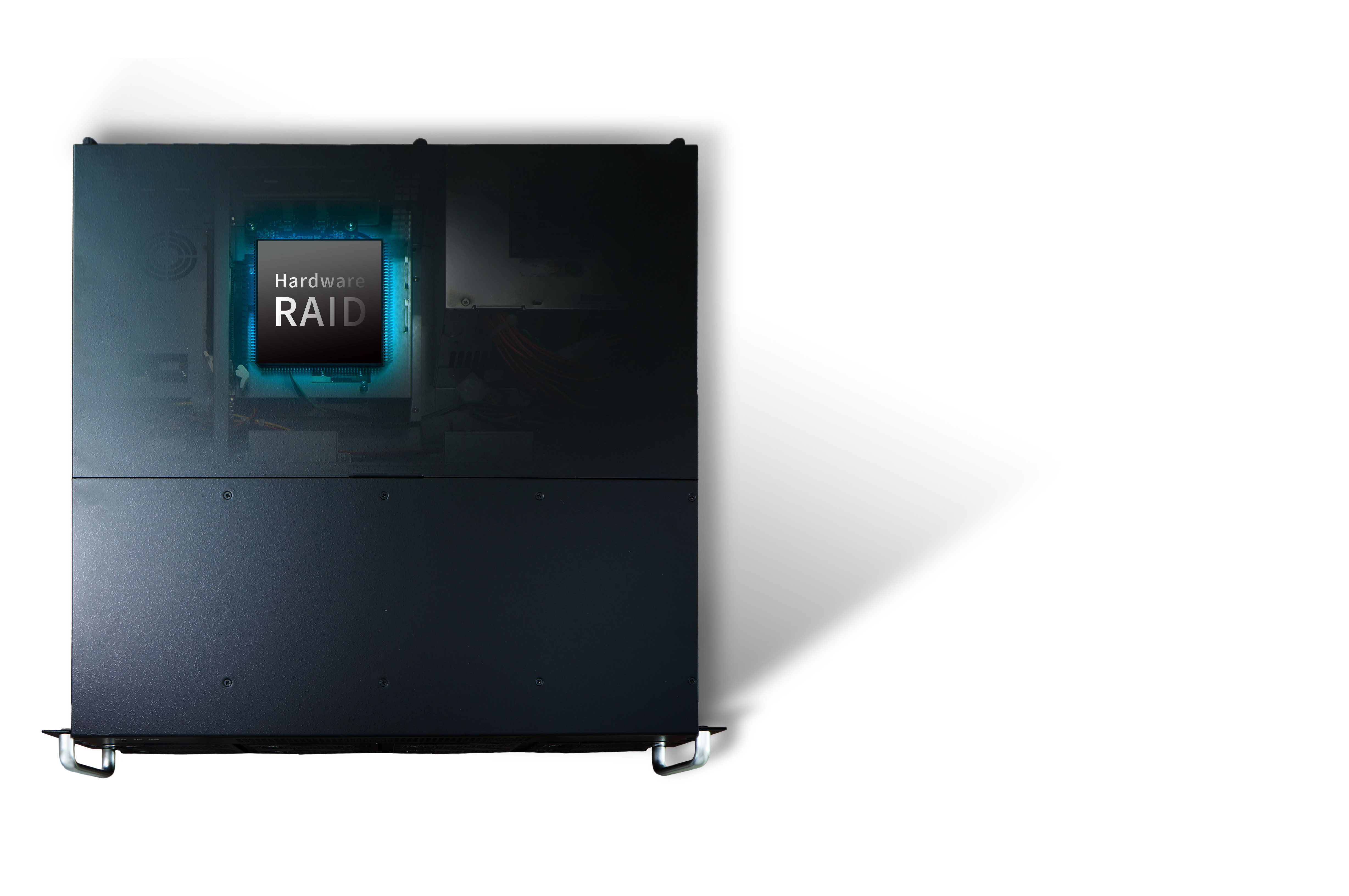

内建高阶硬件式RAID控制器，高性能933MHz Storage专用处理器再加上1GB具ECC规格的SDRAM能够在高效能的情况下不占用主计算机性能，并且提供多元RAID等级选项从RAID 0, 1, 10, 3, 5, 6, 30, 50, 60 为数据储存提供高速传输同时又具数据保护的功能。
容量与速度兼俱的Thunderbolt 3机架式方案。
前方设计有8个热插入硬盘盘的NA341TB3，每个Tray盘可安装高达10TB的超大容量硬盘或者高速的SSD，并藉由高达每秒40Gb的Thunderbolt 3带宽接口让机架式储存设备也享有高速的数据传输。

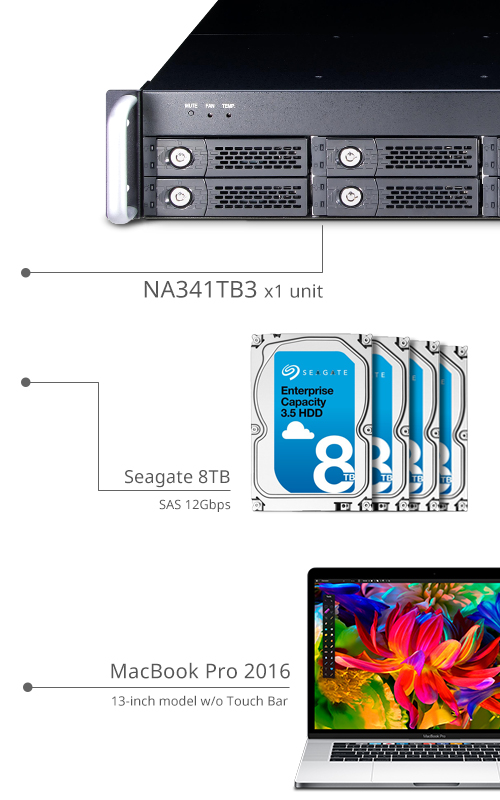

AJA 实测结果 - RAID 5 等级
WRITE
1195 MB/SEC
READ
1398 MB/SEC
* 测试结果及效能可能因硬件或操作系统不同而略有误差。
两个Thunderbolt™ 3 端口，串接更多元。

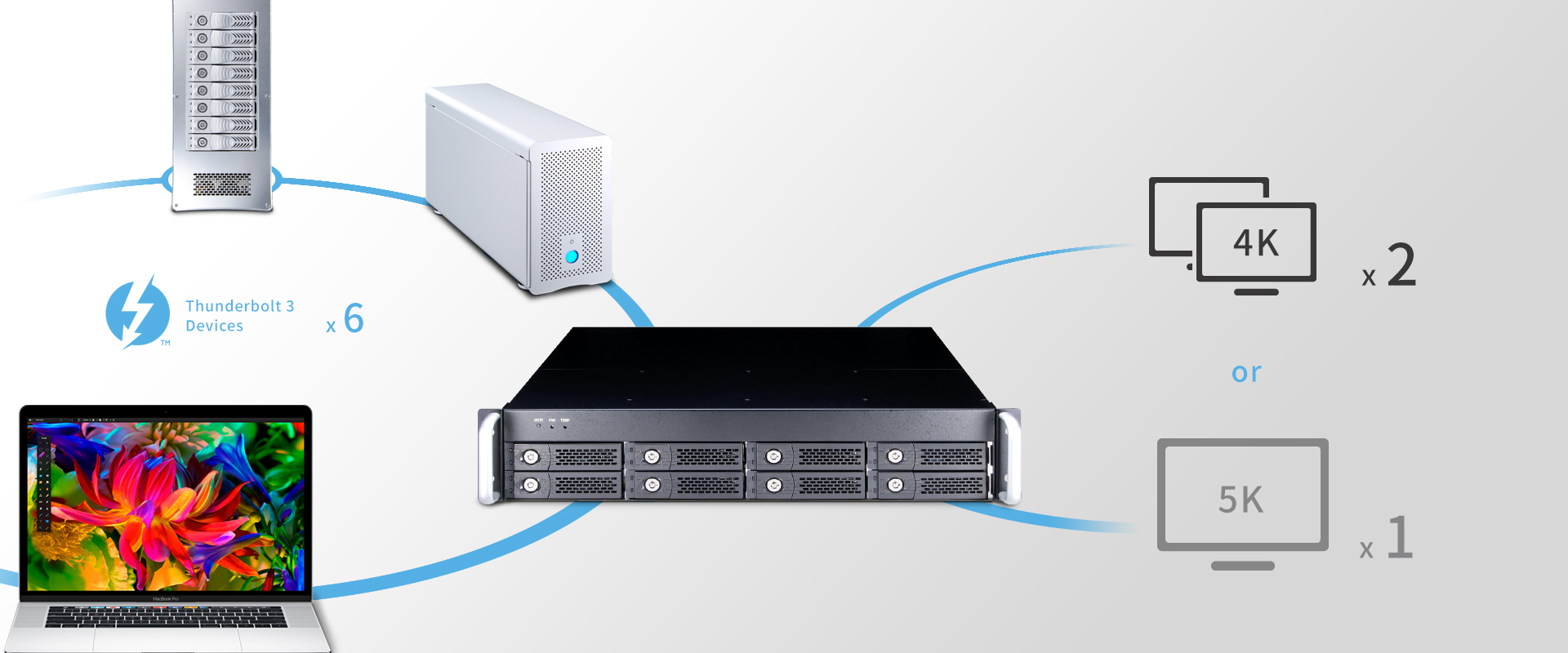

使用USB-C连接器的Thunderbolt 3，不仅小巧更整合了数据传输、影片输出以及充电的功能。内建两个Thunderbolt 3端口的NA341TB3除了1个连接上游主机外，另一个支持Thunderbolt 3菊链式串接至6个 Thunderbolt接口设备的功能还包含1个5K或2个4K UHD屏幕，并且能支持USB 3.1 Gen 2 (10Gbps)。

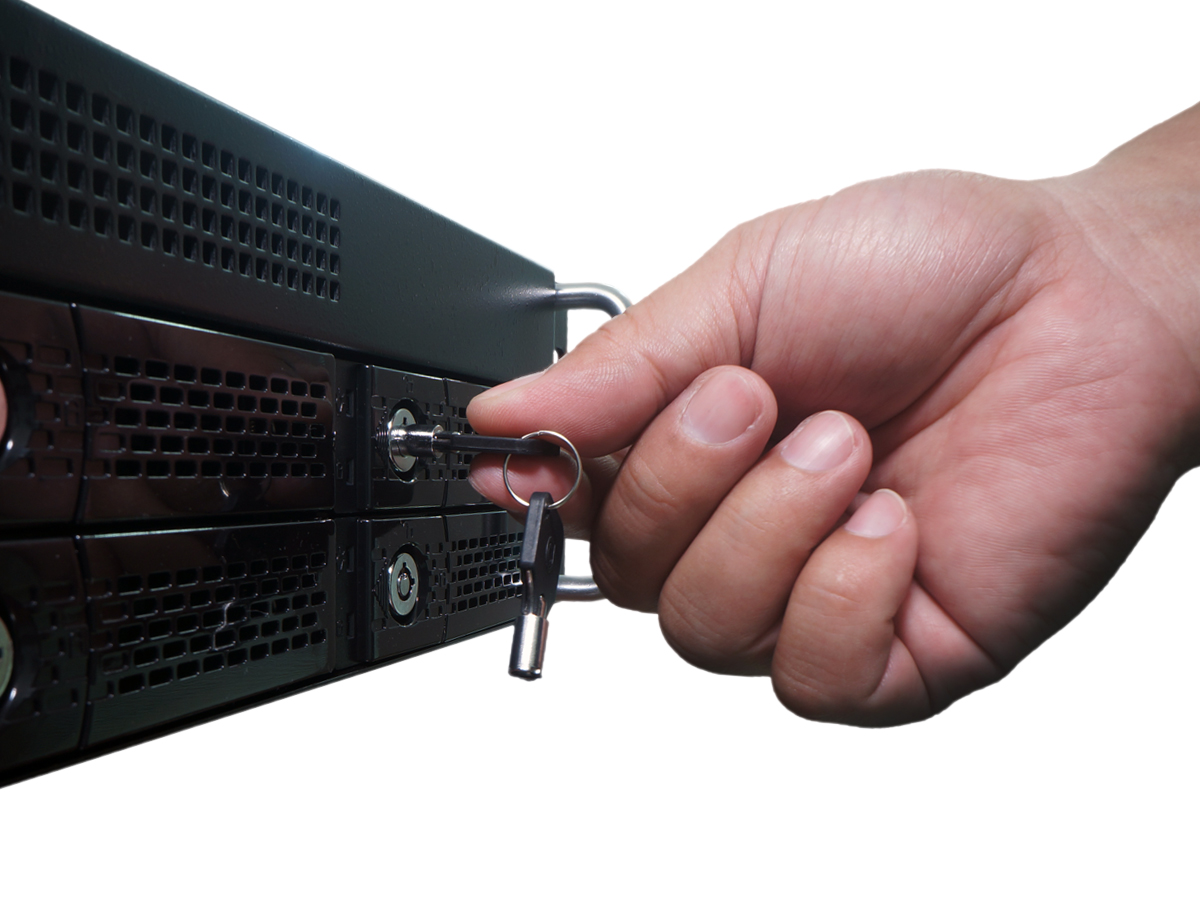

硬盘盘锁头，安全加一级。

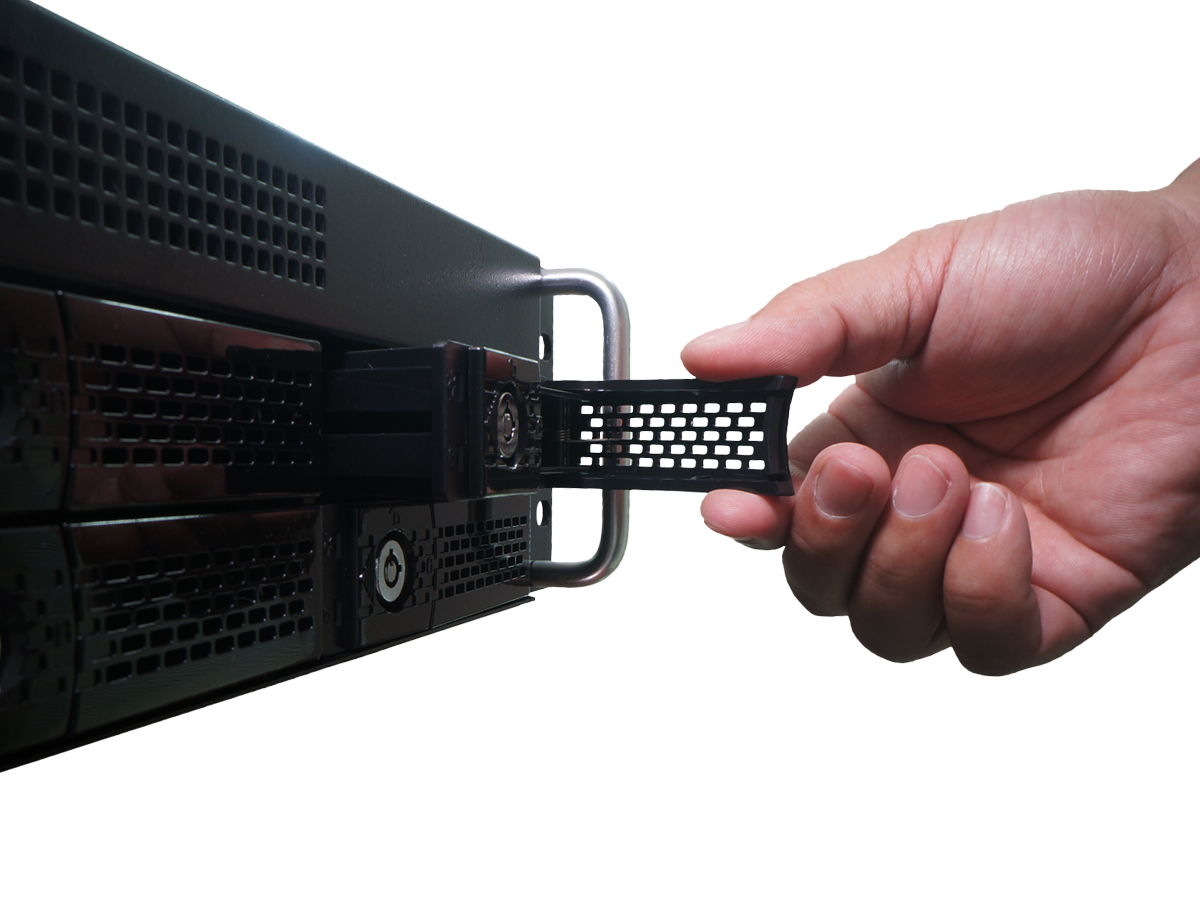

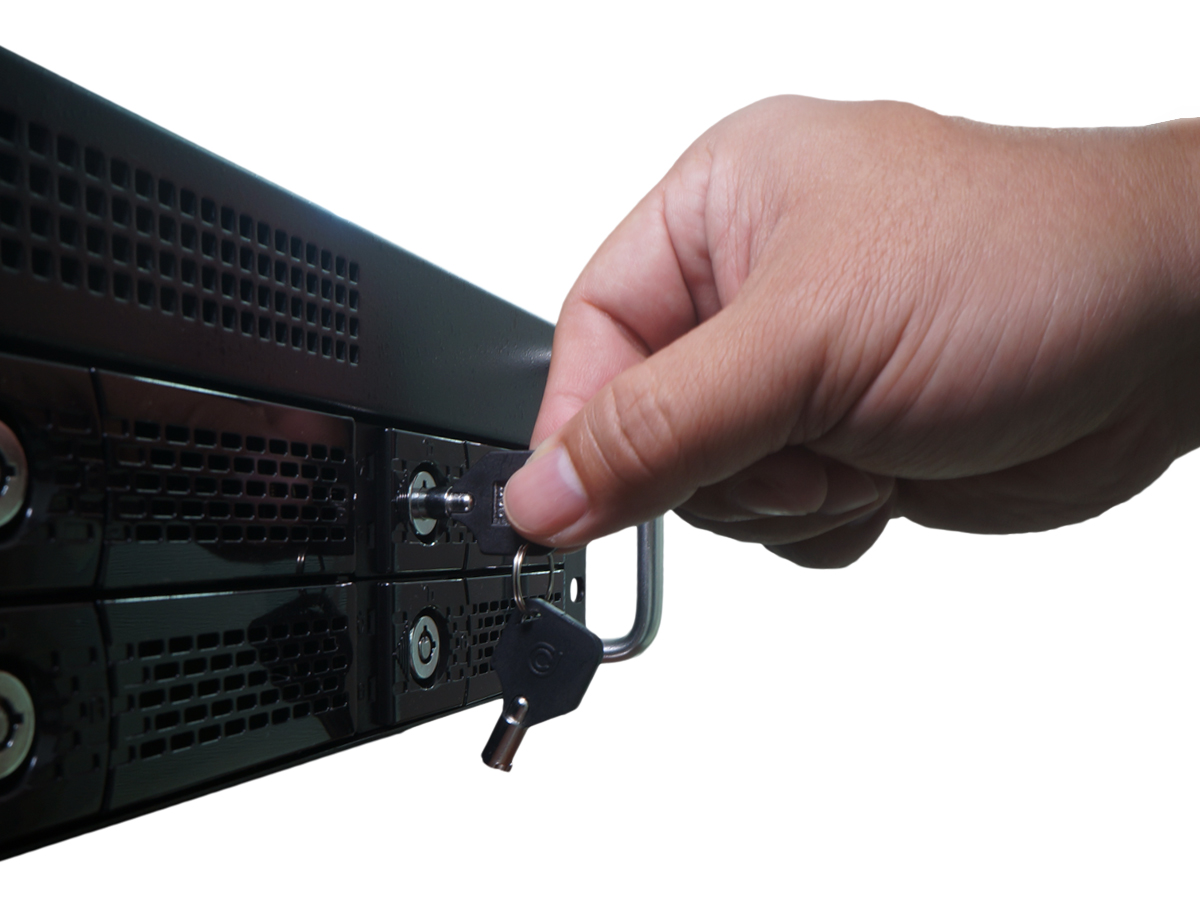

贴心的硬盘Tray盘锁头设计，可避免磁盘阵列的硬盘被意外的抽出，进而造成您宝贵数据毁损。
相同的Tray 功能更多。

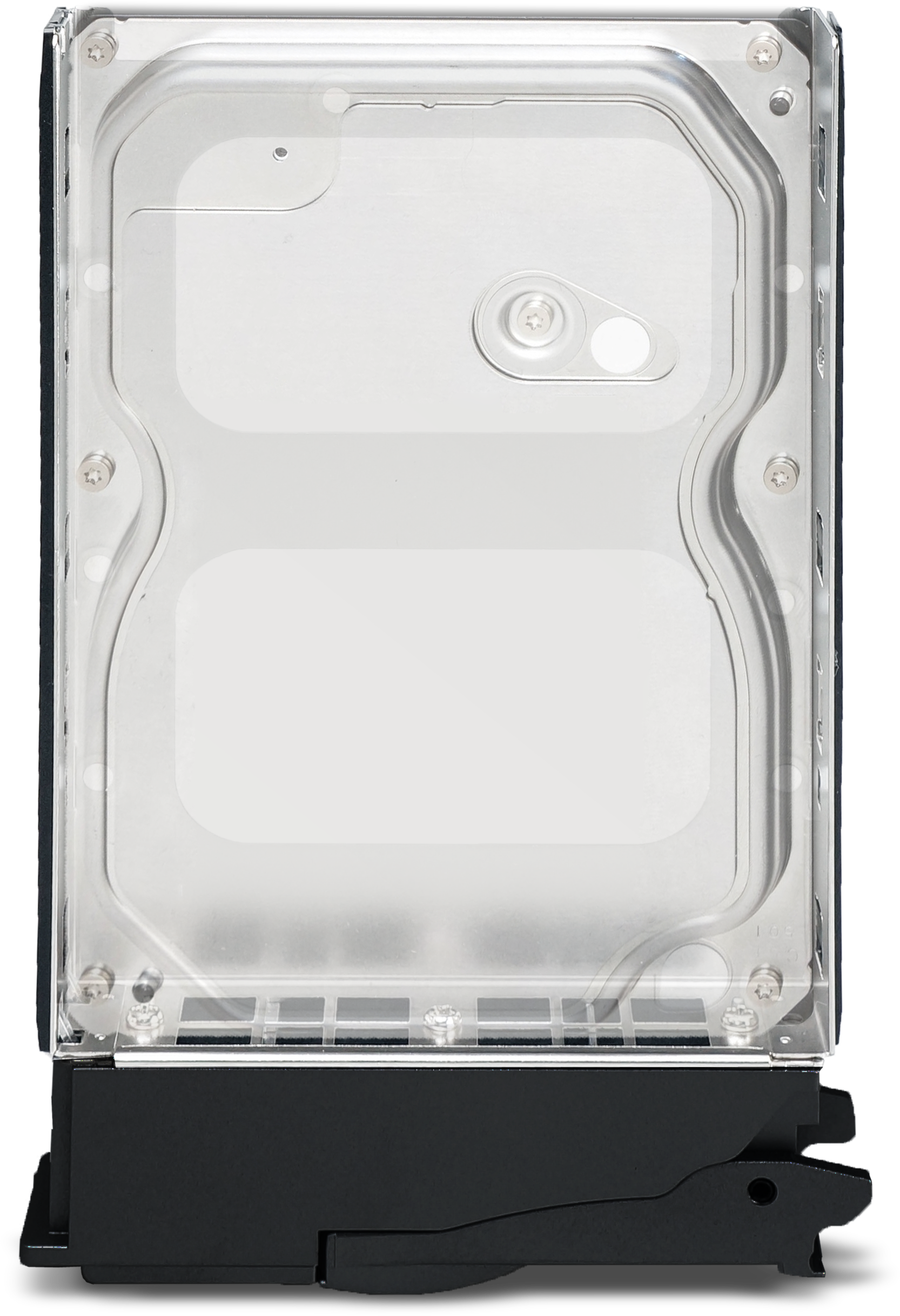

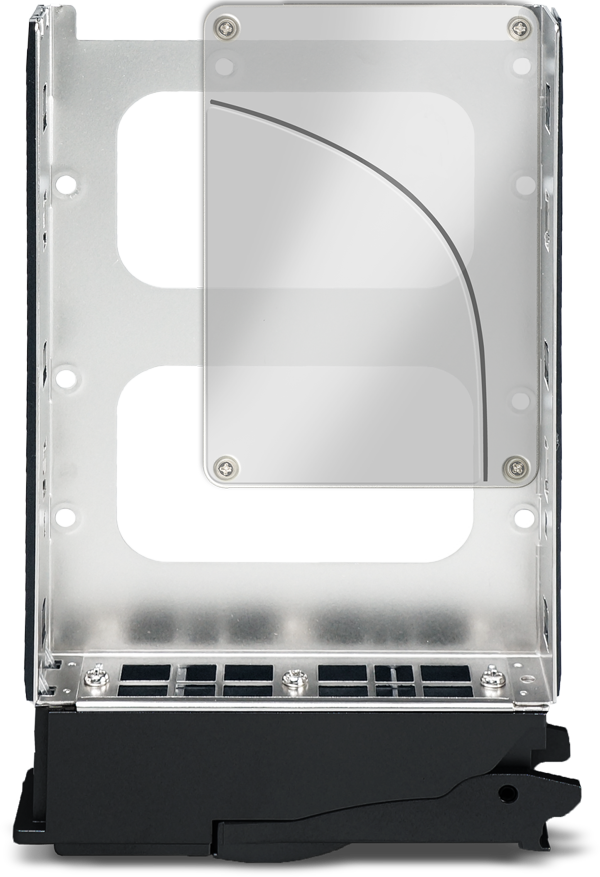

NA341TB3 的8个Tray盘都能够支持3.5吋硬盘、2.5吋HDD或者2.5吋的SSD，提供用户在容量或速度的最佳应用弹性。
优异的散热设计。

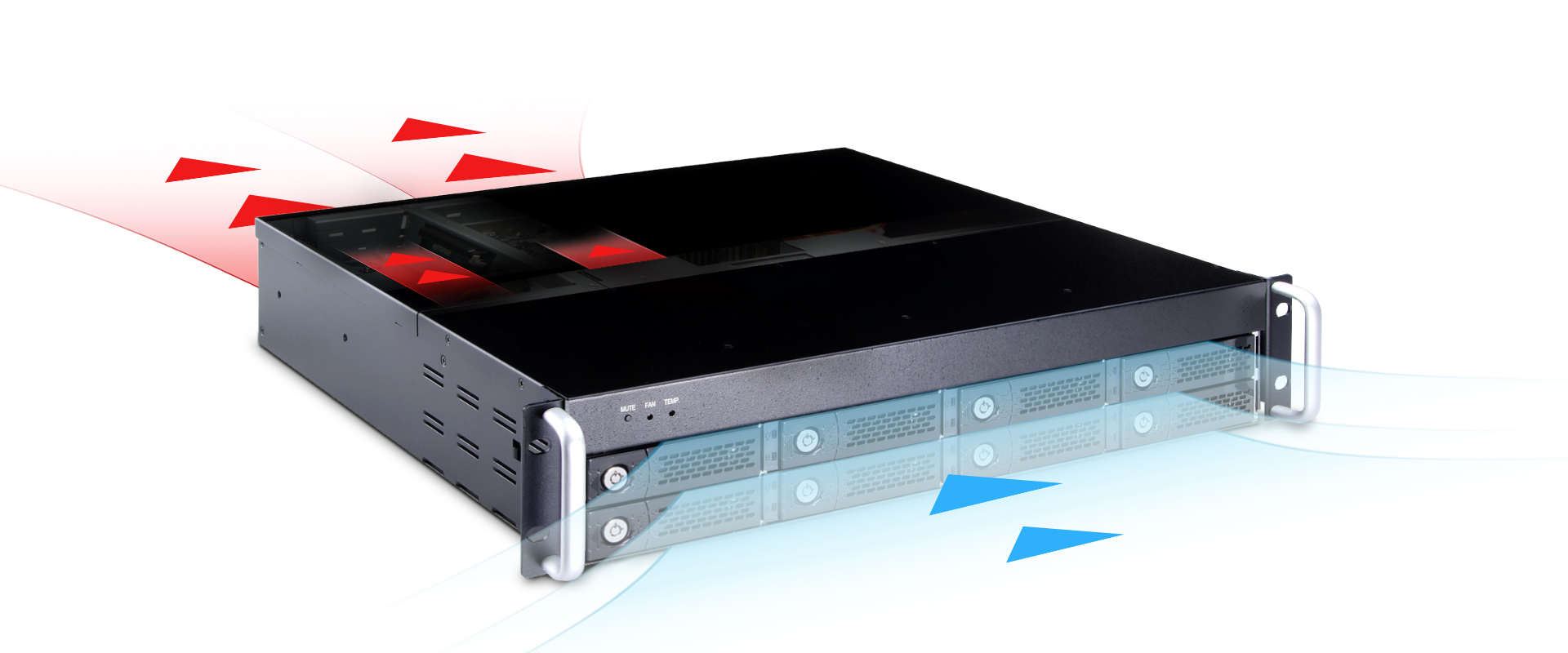

藉由磁盘背板后方的两个6公分风扇模块将磁盘所产生的热气立即往后传送交由后方的两个Blower风扇组把热气往机壳外排出，由于风扇之间的最短距离排风设计让风扇转数能够降低并降低躁音值，同时保持机箱在最低温度。
详细规格
Specifications
| |
NA341TB3 |
| Host Interface |
- Thunderbolt™3 (USB-C 端口, 兼容于雷雳4主机)
- 40Gbps High Bandwidth
|
| Controller & RAID Feature |
- RAID-on-Chip Processor
- 1GB on-board SDRAM with ECC protection
- Supports RAID Level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD
- Multiple RAID Selection
- Online Array Roaming
- Online RAID Level/Stripe Size Migration
- Online Capacity Expansion and RAID Level Migration Simultaneously
- Greater than 2TB Capacity per Disk Drive Support
|
| Storage |
- Supports up to 8 SAS/SATA 12Gb/6Gb 2.5" or 3.5" HDDs/SSDs (Hard Disks/SSD Sold Separately)
- Heavy-duty cold-rolled steel Housing
- Thunderbolt3 Port for Daisy-chain up to 6 Devices
- Individual Key lock of each HDD tray for physical security
|
| Monitors/Indicators |
- Web base GUI RAID Manager for Remote Management
- SMTP Support for Email Notification
- SNMP Support for Remote Manager
- FAN fail LED
- Over Temperature LED
- HDD fail LEDs
|
| Fan Cooler |
- Two 60x 60x 25mm (inner)
- Two 75x 75x 28mm Blower (rear)
|

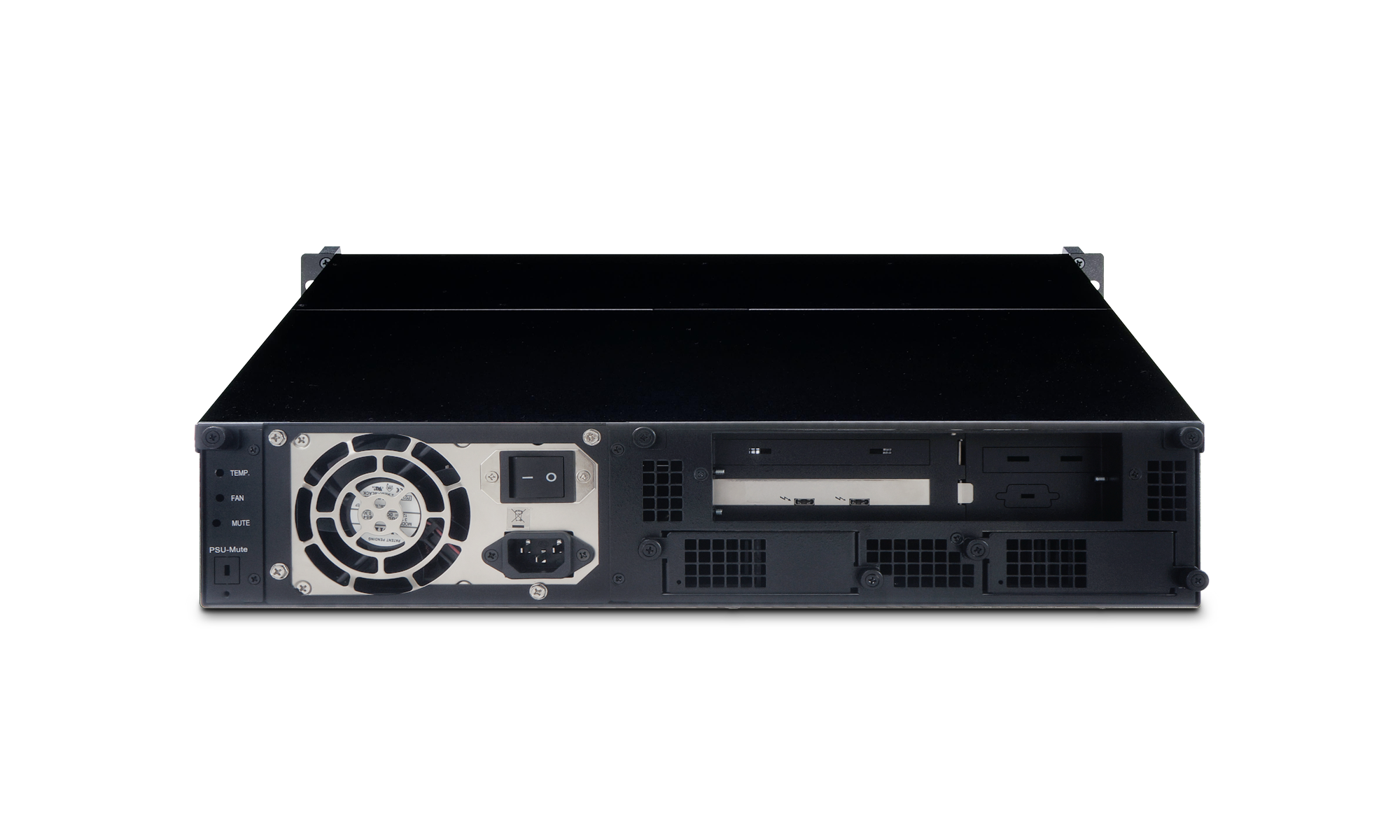

| Power Supply |
- Server-grade 400W Single Power Supply
- Low-noise Design
- Universal: 100~240VAC, 50/60Hz
|
| Environmental Requirements |
- Operation Temperature: 5°C ~ 50°C
- Storage Temperature: -20°C~ 70°C
- Operation Humidity: 10% ~ 80%, non-condensing
- Storage Humidity: 5% ~ 95%
|
| Dimension |
- 477(D) x 482(W) x 88.5(H) mm
- 18.7(D) x 19(W) x 3.49(H) inch
|
| Operating System |
- Mac OS X 10.12.3 above (支援 M1, M1 Pro, M1 Max, and M1 Ultra or Intel)
- Windows 10/8
|
| Scalability |
- Thunderbolt3 port for daisy-chain up to 6 devices
|
| 包装内容物 |
机台本体 x 1
硬盘Tray盘 x 8 (已安装于机台本体上)
Thunderbolt3-40Gbps 传输线 x 1 (2 米长)
硬盘固定座螺丝 x 32
硬盘锁钥匙 x 2
电源线 x 1 |
Host Interface
- Thunderbolt™3, USB-C Interface
- 40Gbps High Bandwidth
Controller & RAID Feature
- RAID-on-Chip Processor
- 1GB on-board SDRAM with ECC protection
- Supports RAID Level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD
- Multiple RAID Selection
- Online Array Roaming
- Online RAID Level/Stripe Size Migration
- Online Capacity Expansion and RAID Level Migration Simultaneously
- Greater than 2TB Capacity per Disk Drive Support
Storage
- Supports up to 8 SAS/SATA 12Gb/6Gb 2.5" or 3.5" HDDs/SSDs (Hard Disks/SSD Sold Separately)
- Heavy-duty cold-rolled steel Housing
- Thunderbolt3 Port for Daisy-chain up to 6 Devices
- Individual Key lock of each HDD tray for physical security
Monitors/Indicators
- Web base GUI RAID Manager for Remote Management
- SMTP Support for Email Notification
- SNMP Support for Remote Manager
- FAN fail LED
- Over Temperature LED
- HDD fail LEDs
Fan Cooler
- Two 60x 60x 25mm (inner)
- Two 75x 75x 28mm Blower (rear)
Power Supply
- Server-grade 300W Single Power Supply
- Low-noise Design
- Universal: 100~240VAC, 50/60Hz
Environmental Requirements
- Operation Temperature: 5°C ~ 50°C
- Storage Temperature: -20°C~ 70°C
- Operation Humidity: 10% ~ 80%, non-condensing
- Storage Humidity: 5% ~ 95%
Dimension
- 477(D) x 482(W) x 88.5(H) mm
- 18.7(D) x 19(W) x 3.49(H) inch
Operating System
- Mac OS X 10.12.3 above
- Windows 10/8
Scalability
- Thunderbolt3 port for daisy-chain up to 6 devices
包装内容物
机台本体 x 1
硬盘Tray盘 x 8 (已安装于机台本体上)
Thunderbolt3-40Gbps 传输线 x 1 (2 米长)
硬盘固定座螺丝 x 32
硬盘锁钥匙 x 2
电源线 x 1
Accessories
| Model No. |
Description |
| NA341TB3 |
2U 8 bay Thunderbolt3 SAS/SATA RAID Subsystem, Dual Thunderbolt3 Ports for Host and Daisy-chain, with Single 400W Power Supply, One 2 meter Thunderbolt3 cable |
| ANNA920C0340 |
Black Color Short Tray |
| ATSRFR28TW |
28寸薄型滑轨 |
Model No. - NA341TB3
2U 8 bay Thunderbolt3 SAS/SATA RAID Subsystem, Dual Thunderbolt3 Ports for Host and Daisy-chain, with Single 400W Power Supply, One 2 meter Thunderbolt3 cable
Model No. - ANNA920C0340
Black Color Short Tray
Model No. - ATSRFR28TW
28寸薄型滑轨
